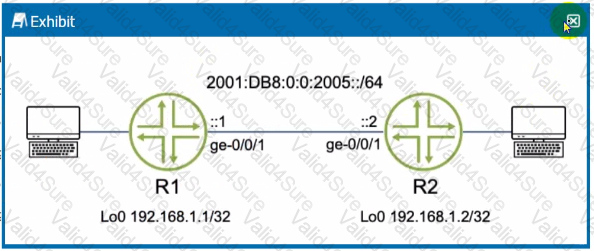

For IS-IS to form adjacencies, the 'family iso' statement must be configured on the interface. This is required because IS-IS operates over the connectionless network service (CLNS) and not over IP. Without the 'family iso' configuration, IS-IS cannot form adjacencies over the interface.

References:

• Juniper Networks documentation on IS-IS: IS-IS User Guide for Routing Devices

https://www.juniper.net/documentation/us/en/software/junos/mpls/topics/topic-map/lsp-routers.html

In an MPLS network, the types of routers include ingress routers (where the MPLS labels are first applied), egress routers (where MPLS labels are removed), and transit routers (which switch MPLS-labeled packets through the MPLS network). Peering routers andaggregation routers are not specific types of MPLS routers; they are general network terms.

References:

• Juniper Networks documentation on MPLS: MPLS Fundamentals

A Level 1 router can become adjacent with the Level 1 and Level 1-2 (L1/L2) router. A Level 2 router can become adjacent with Level 2 or Level 1-2 (L1/L2) router. There is no adjacency between L1 only and L2 only router. HOWEVER: If two routers are in different areas, they can only form a Level 2 adjacency. As such, two routers in different areas can NOT form a Level 1 adjacency. If you want two routers to form a Level 1 adjacency, they have to be in the same area.

IS-IS (Intermediate System to Intermediate System) operates at two levels: Level 1 and Level 2. Level 1 routers are only aware of their own area's topology, while Level 2 routershave knowledge of the topology across areas. A Level 1 router cannot form an adjacency with a Level 2 router unless the Level 2 router is also operating as a Level 1 router (Level 1-2 router). Level 2 routers can form adjacencies regardless of their area IDs because Level 2 operates at the domain level and is used to interconnect different IS-IS areas.

References

• Juniper Networks Technical Documentation on IS-IS
• IS-IS Levels and Areas Explanation - Juniper Networks
