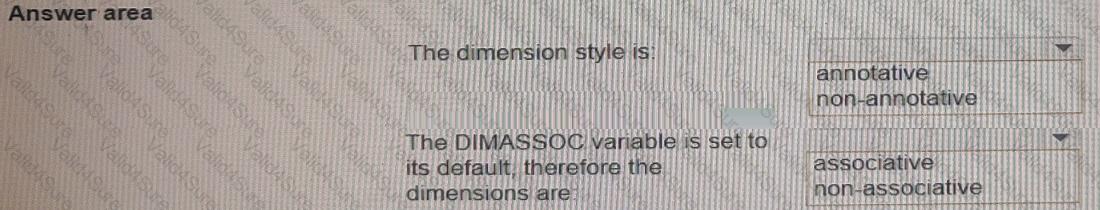

Box 1 = annotative

an annotative dimension style is a dimension style that automatically adjusts the size of dimensions based on the viewport scale. An annotative dimension style has an icon next to its name in the Dimension Style Manager dialog box. The dimension style is annotative because the dimension text height is the same for both viewports in the layout, even though they have different viewport scales1.

Box 2 = associativeThe DIMASSOC is at its default value of 2, therefore the dimensions are associative because they are linked to and update with the measured geometry3.

To assign the 22x34_PDF page setup to a layout, follow these steps in the Page Setup Manager:

Open the Page Setup Manager:

Type PAGESETUP in the command line and press Enter.

Locate the 22x34_PDF Page Setup:

In the Page Setup Manager, locate the 22x34_PDF page setup in the list of available setups.

Set as Current:

Right-click (Control-click on Mac) on the 22x34_PDF page setup.

Select Set Current from the context menu. This action will assign the selected page setup to the current layout.

Verify the Changes:

The current layout will now use the 22x34_PDF page setup. You can verify this by checking the plot settings in the layout tab.

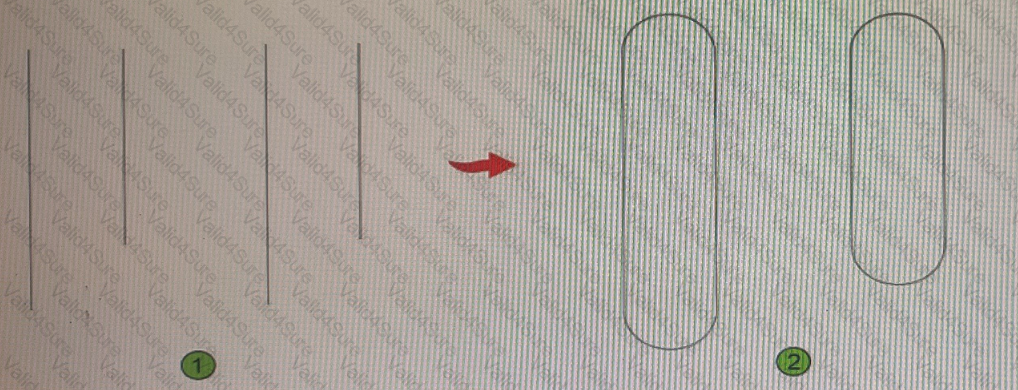

According to the AutoCAD for Design and Drafting documents, the CHAMFER command creates a beveled corner between two lines, while the FILLET command creates a rounded corner between two lines. Both commands can be used with the Polyline option to apply chamfers or fillets to all corners of a 2D polyline1. However, in this case, the lines are not polylines but separate line segments. Therefore, using the Polyline option will not work. Instead, you can use the Multiple option to chamfer or fillet multiple sets of lines without restarting the command2.

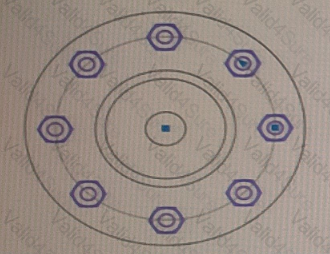

array items are contained in a single array object, similar to a block. You can change the number of these items and their spacing in an associative array.

Based on 2, you can move an item in an associative array by pressing and holding the Ctrl key, and then selecting the items you want to move.

since explode is the command that separates objects into individual objects. Disassociate, ungroup and break are not valid commands for associative arrays.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-27321B8F-C67E-4EF9-9A25-C5444330E5F2-htm.html

Access the Add Scale Dialog:

Open the 'Edit Drawing Scales' dialog by clicking on the scale list in the status bar or through the SCALELISTEDIT command.

Add a New Scale:

Click on the Add button to open the 'Add Scale' dialog.

In the 'Add Scale' dialog, you will need to specify the drawing units and paper units for the new scale.

Enter the Required Scale Values:

For a scale of 1" = 120', set the Drawing Units to 1 and the Paper Units to 120.

This configuration means that 1 unit in the drawing will represent 120 units on paper, matching the desired scale.

Save the New Scale:

Click OK to save the new scale to the scale list.

The new scale of 1" = 120' will now be available for use in the drawing.

References:

AutoCAD Documentation on adding scales: Adding Scales

From the Delta option of the Lengthen command, enter 50 units and then select the right end of the line. This way, you can increase the length of the line by 50 units from its current endpoint without changing its direction or position2

https://www.learnvern.com/autocad-tutorial-in-hindi/how-to-use-lengthen-command

To join multiple polylines into a single polyline, use the PEDIT command with the Multiple and Join options.

Initiate the PEDIT command:

Type PEDIT in the command line and press Enter.

Select Multiple option:

When prompted to select a polyline, type M for Multiple and press Enter.

Select all polylines:

Select all the polylines that need to be joined.

Use the Join option:

After selecting the polylines, type J for Join and press Enter.

AutoCAD will prompt for the fuzz distance. Press Enter to accept the default, which will join the polylines if their endpoints are within a small distance of each other.

Convert if necessary:

If the selected objects include lines or arcs that are not polylines, AutoCAD will ask if you want to convert them to polylines. Select Yes to convert and join them.

When creating a path array in AutoCAD, the objects being arrayed typically align with the direction of the path by default. To maintain the original orientation of the objects while following the curved path, you should turn off the "Align items" option.

Select the Object: Choose the object you want to array along the path.

Path Array Command: Use the ARRAYPATH command or go to the Array command and choose Path Array.

Select Path: Select the path (curved line or arc) along which the objects will be arrayed.

Turn Off Align Items: In the Array options, turn off the "Align items" checkbox to ensure that the objects maintain their original orientation.

This will keep the orientation of each object the same as the original, regardless of the curvature of the path.

According to the AutoCAD for Design and Drafting documents1, the command that should be typed at the command line in order to start creating a line for drawing reference that starts at a defined point and extends to infinity in the designated direction is XLINE2. This command creates a construction line, which is a type of reference line that can help you manage accurate parameters of your drawing2. You can also use point objects as nodes or reference geometry for object snaps and relative offsets3.

From the Delta option of the Lengthen command, enter 50 units and then select the right end of the line. This way, you can increase the length of the line by 50 units from its current endpoint without changing its direction or position2

https://www.learnvern.com/autocad-tutorial-in-hindi/how-to-use-lengthen-command

To ensure that the "Walls" layer is not visible while drafting, the appropriate property to set is "Layer Off." This will make the entire layer invisible in the drawing.

Layer Off:

Effect: Turns off the visibility of the layer in the drawing, making it not visible.

Usage: This is useful when you want to hide certain elements temporarily without affecting the actual data or properties of the elements on that layer.

Layer Freeze:

Effect: Similar to "Layer Off," but additionally, it removes the layer from memory, which can improve performance in large drawings. However, "Layer Freeze" is not the primary choice when only visibility control is needed.

Layer Lock:

Effect: Prevents editing of the layer's content but does not hide it from view.

Usage: Useful when you want to protect the layer's content from accidental modifications.

Layer Unlock:

Effect: Opposite of "Layer Lock," allows editing of the layer's content.

FalseYou cannot convert an arc to a line by hovering over the center grip of the arc segment. You need to convert the arc to a polyline first, then use the FLATTEN command, and answer YES to remove hidden lines. Then you can explode the polyline to get line segments. https://forums.autodesk.com/t5/autocad-forum/autocad-is-it-possible-to-convert-an-arc-to-a-segemented-line/td-p/2933624

Falseyou can edit the polyline width by hovering over certain grips if they are vertex grips or midpoint grips. However, if they are arc segment grips, you cannot edit the width by hovering over them1. Therefore, the statement is false. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-2070C02C-E18A-4333-BDC4-240F49F1C102-htm.html

Falseyou can add a new vertex by hovering over certain grips if they are edge grips or midpoint grips. However, if they are vertex grips or arc segment grips, you cannot add a new vertex by hovering over them2. Therefore, the statement is false.

According to the AutoCAD for Design and Drafting documents1, the EXTEND command allows you to extend objects to meet the edges of other objects. To trim objects instead of extending them, you can hold down the Shift key while selecting the objects1. This will invoke the TRIM command within the EXTEND command.

https://autocadprojects.com/trim-and-extend-command/

FalseYou cannot convert an arc to a line by hovering over the center grip of the arc segment. You need to convert the arc to a polyline first, then use the FLATTEN command, and answer YES to remove hidden lines. Then you can explode the polyline to get line segments. https://forums.autodesk.com/t5/autocad-forum/autocad-is-it-possible-to-convert-an-arc-to-a-segemented-line/td-p/2933624

Falseyou can edit the polyline width by hovering over certain grips if they are vertex grips or midpoint grips. However, if they are arc segment grips, you cannot edit the width by hovering over them1. Therefore, the statement is false. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-2070C02C-E18A-4333-BDC4-240F49F1C102-htm.html

Falseyou can add a new vertex by hovering over certain grips if they are edge grips or midpoint grips. However, if they are vertex grips or arc segment grips, you cannot add a new vertex by hovering over them2. Therefore, the statement is false.

When creating a path array in AutoCAD, the objects being arrayed typically align with the direction of the path by default. To maintain the original orientation of the objects while following the curved path, you should turn off the "Align items" option.

Select the Object: Choose the object you want to array along the path.

Path Array Command: Use the ARRAYPATH command or go to the Array command and choose Path Array.

Select Path: Select the path (curved line or arc) along which the objects will be arrayed.

Turn Off Align Items: In the Array options, turn off the "Align items" checkbox to ensure that the objects maintain their original orientation.

This will keep the orientation of each object the same as the original, regardless of the curvature of the path.

True

1. According to the AutoCAD for Design and Drafting documents1, a polyline is a connected sequence of line segments created as a single object. You can create straight line segments, arc segments, or a combination of the two2341. Therefore, the correct answer is True. A polyline can include both straight line segments and arc segments.

2. False.According to the AutoCAD for Design and Drafting documents1, a spline is a smooth curve that passes through or near a set of fit points, or that is defined by the vertices in a control frame. A spline does not have a constant radius, but rather a local radius at each point on the curve2. Therefore, AutoCAD cannot directly dimension or display a radius of a spline curve23. You can use some workarounds such as exploding the curve to arc segments with the FLATTEN command2, or creating a polyline over the top with arc active3, but these may not be accurate or desirable. Therefore, the correct answer is False. The radius on a spline cannot be found in AutoCAD properties.3. TrueAccording to the AutoCAD for Design and Drafting documents1, a 2D polyline is a connected sequence of line segments created as a single object. You can specify an elevation for a 2D polyline using the Edit Polyline Elevations command2. However, this command will assign the same elevation to all vertices of the polyline2. Therefore, you cannot assign different elevations to different segments or points of a 2D polyline. Therefore, the correct answer is True. You can assign only one elevation to a 2D polyline.

BOX 1 = WIPEOUT command with the Polyline option2.BOX2 = DRAWORDER command23

https://forums.autodesk.com/t5/autocad-forum/polyline-plan-view-boundary-of-point-cloud/td-p/6251860

the command that should be used to create a new drawing file from selected objects is WBLOCK. This command allows you to export a group of objects as a drawing, which can be inserted into other drawings as a block2.

To determine the most current file in the Drawing Recovery Manager, you should review the last saved date and time for each file in the Details panel. This ensures you are selecting the most recent version of the drawing.

Select each file name:

Procedure: Click on each file name in the Drawing Recovery Manager.

Review the Details panel:

Information: The Details panel provides the last saved date and time for each file.

Purpose: Helps you identify which backup file is the most recent and thus the best candidate for recovery.

The function that needs to be enabled to display the dimension input box while drawing a line is "Dynamic Input." This feature provides a command interface near the cursor, allowing you to input dimensions and commands directly where you are drawing.

Dynamic Input:

Effect: Displays input boxes for dimensions and commands near the cursor.

Usage: Facilitates real-time input of lengths, angles, and other parameters directly while drawing.

How to Enable:

Command: DYNMODE

Toggle: You can toggle Dynamic Input on or off using the F12 key or by typing DYNMODE and setting it to 1.

Setting Up Polar Tracking:

Polar Tracking helps in creating lines at specific angles by snapping to predefined angle increments.

Required Angles in the Exhibit:

The exhibit shows angles of 45°, 60°, and 27°.

Increment Angle: Set to 60° to cover the major angle increments.

Additional Angle: Add 27° to cover the specific requirement in the drawing.

Steps to Set Drafting Settings:

Open the Drafting Settings dialog.

Go to the Polar Tracking tab.

Set the Increment Angle to 60°.

Add 27° to the Additional Angles list.

Conclusion:

To draw the exhibit using Polar Tracking, set the Increment angle to 60° and add 27° as an additional angle.

References:

AutoCAD User Guide on Polar Tracking.

AutoCAD Help Documentation on Setting Increment and Additional Angles.

When you hover over the arc (1), you will see a radius dimension type preview.

When you hover over the circle (2), you will see a diameter dimension type preview.

When you hover over the horizontal line (3), you will see a horizontal linear dimension type preview.

When you hover over the angled line (4), you will see an angular dimension type preview.

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-181BF535-D6F4-4B90-B04D-EB99C5488DAB-htm.html

rotate is a command that rotates selected objects around a base point to an absolute angle. You can specify the base point and the rotation angle by entering values or selecting points. You can also use the reference option to align objects with other objects.

1- Start the Rotate command, select the square, and press Enter

4- Specify the base point

5- Select the Reference option

3- Select the lower left corner and the lower right corner as the first and second points of the reference angle

2- Enter a value of 0 for the new angle and press Enter

Understanding External References:

External references (Xrefs) allow you to attach drawing files within your current drawing, enabling collaborative work and data sharing.

Xrefs can be attached as Overlay or Attachment. Overlays do not include nested Xrefs, while Attachments do.

Identifying the Problem:

The exhibit shows that the Buildings drawing is nested within the Contours Xref.

To remove the Buildings drawing from the C-3 drawing, it must be detached from the Xref hierarchy.

Steps to Detach Xref:

Right-click (Control-click) the Buildings reference in the Xref Manager.

Select the Detach option. This will remove the Buildings reference from the drawing.

Conclusion:

To remove the Buildings drawing from the C-3 drawing, detach the Buildings reference directly from the Xref Manager.

References:

AutoCAD User Guide on Managing Xrefs.

AutoCAD Help Documentation on Detaching Xrefs.
