Solution:-

Default int range et0/0-1

Int range e0/0 – 1

Sw trunk encap dot1

Switch mode trunk

Channel-group 2 mode passive

No shut

Spanning-tree vlan 10 priority 0

Spanning-tree vlan 30 priority 0

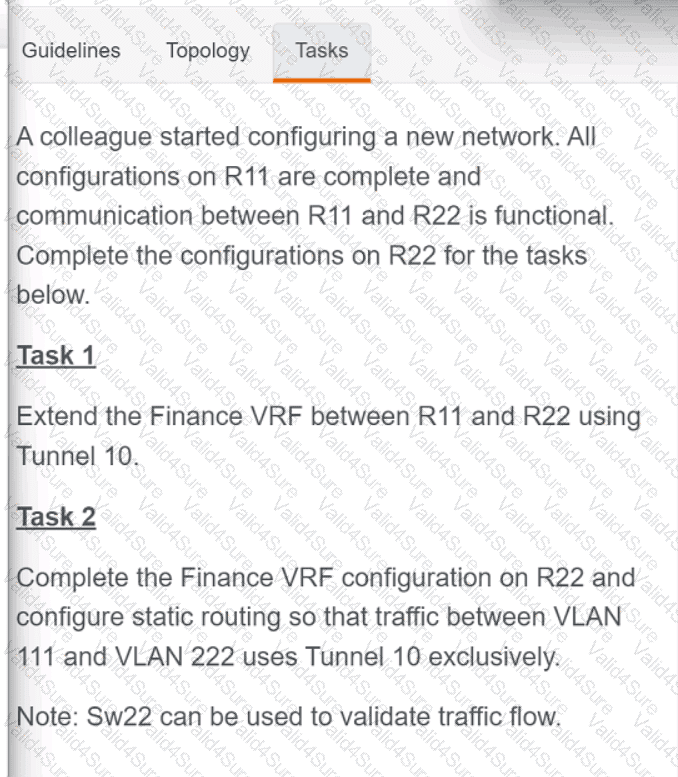

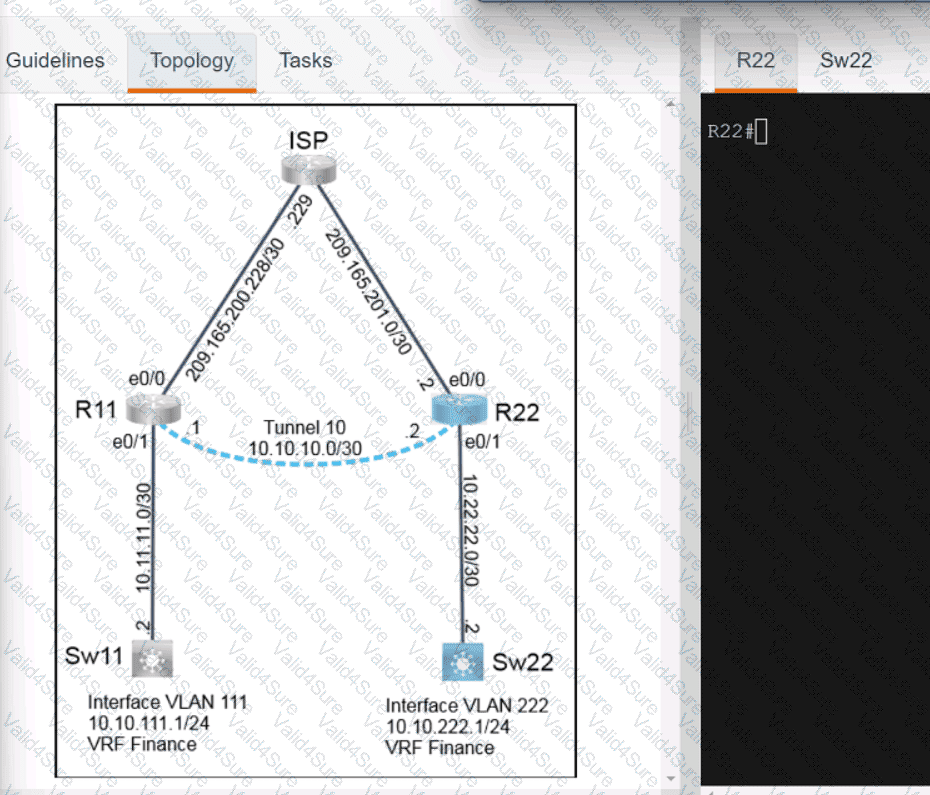

Solution:

R22

int tun0

vrf forwarding FINANCE

ip add 10.10.10.2 255.255.255.0

tunn source e0/0

tunnel dest 209.165.200.230

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

int et0/1

vrf forwarding FINANCE

ip address 10.22.22.1 255.255.255.252

wr

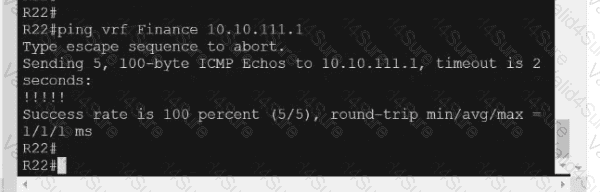

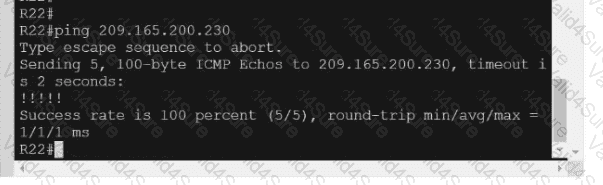

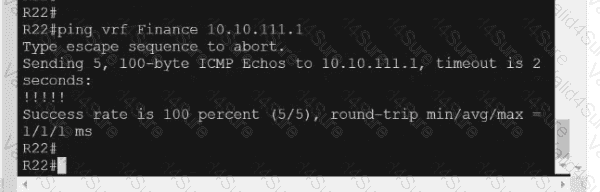

Verification:-

A computer screen with white text Description automatically generated

A computer screen with white text Description automatically generated

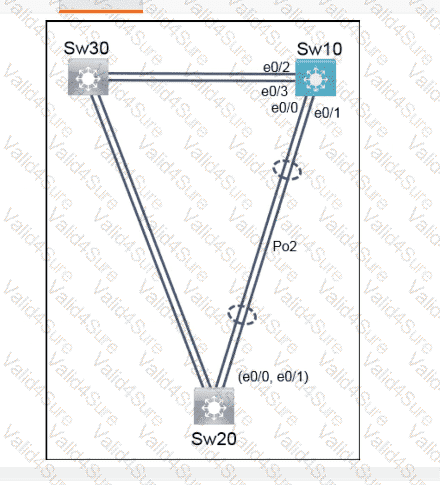

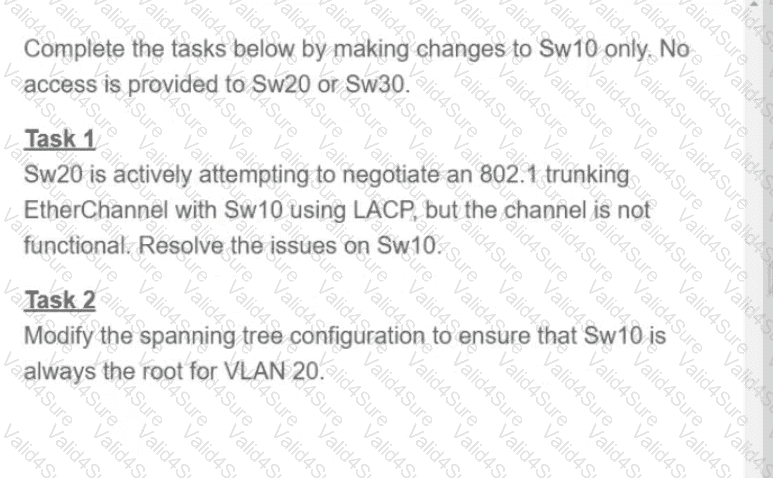

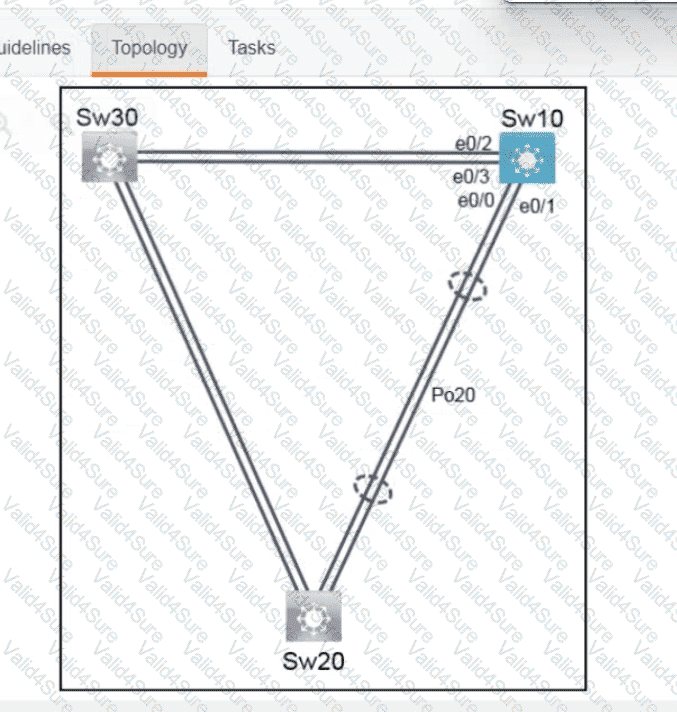

Solution:

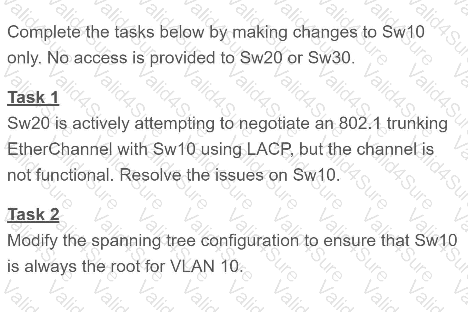

Sw10

config t

no int po20

int et0/0

channel-group 20 mode active

no shut

spanning-tree vlan 20 pri 0

wr

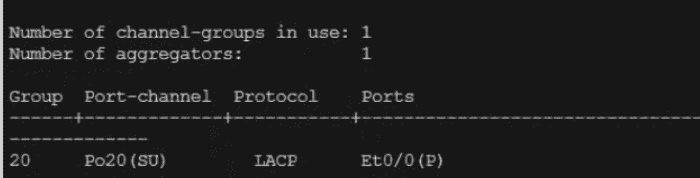

Verification:-

A screen shot of a computer Description automatically generated

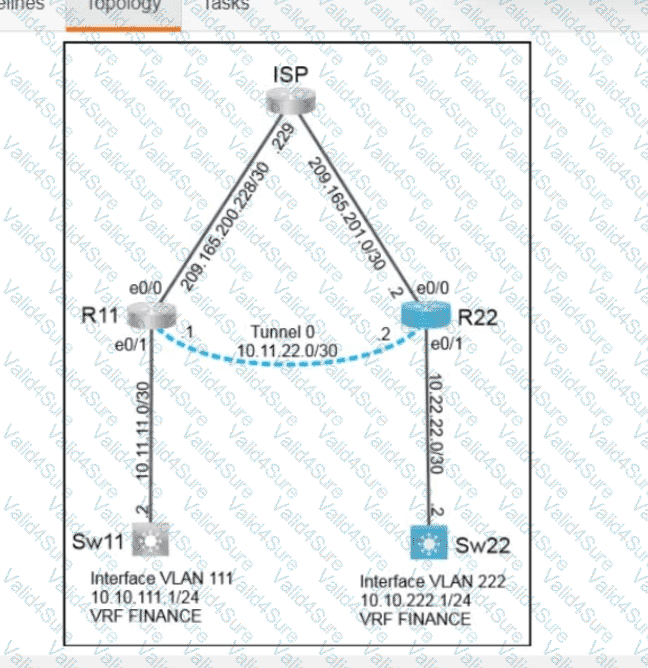

Solution:

R22

config t

int tunn0

vrf forwarding FINANCE

ip add 10.11.22.2 255.255.255.0

tunn so e0/0

tunn dest 209.165.200.230

no shut

int et0/1

vrf forward FINANCE

ip add 10.22.22.1 255.255.255.252

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

wr

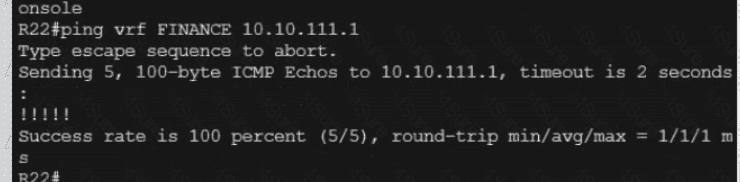

A black screen with white text Description automatically generated

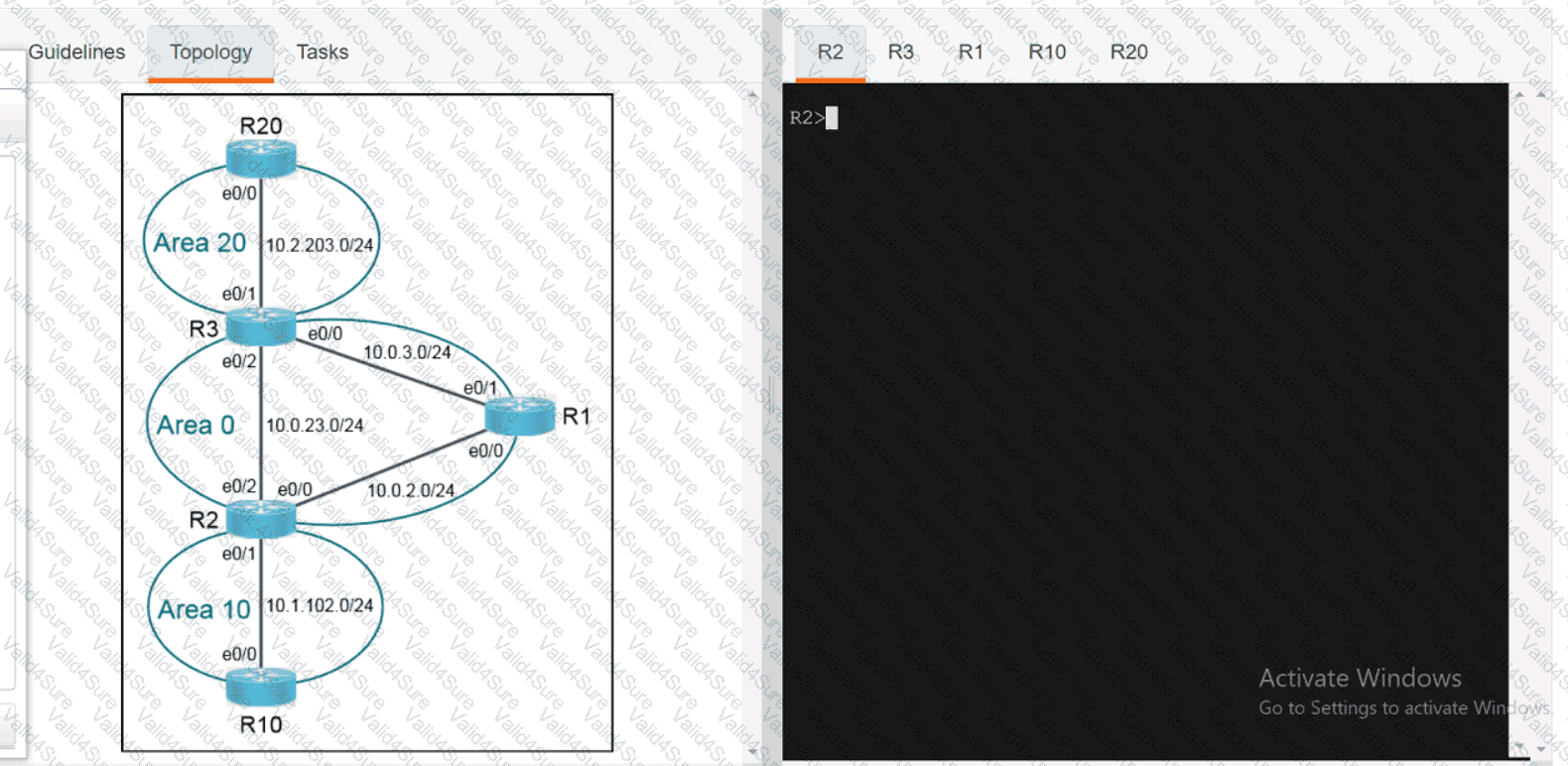

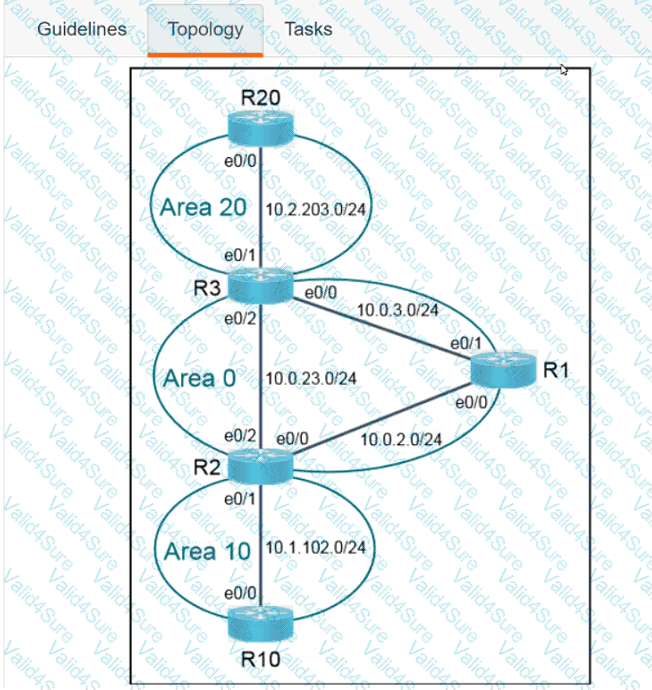

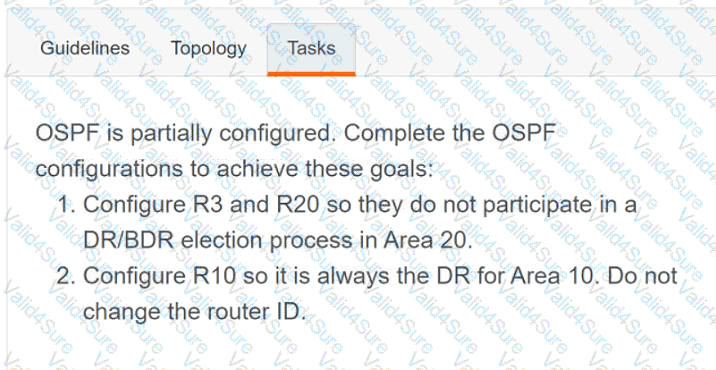

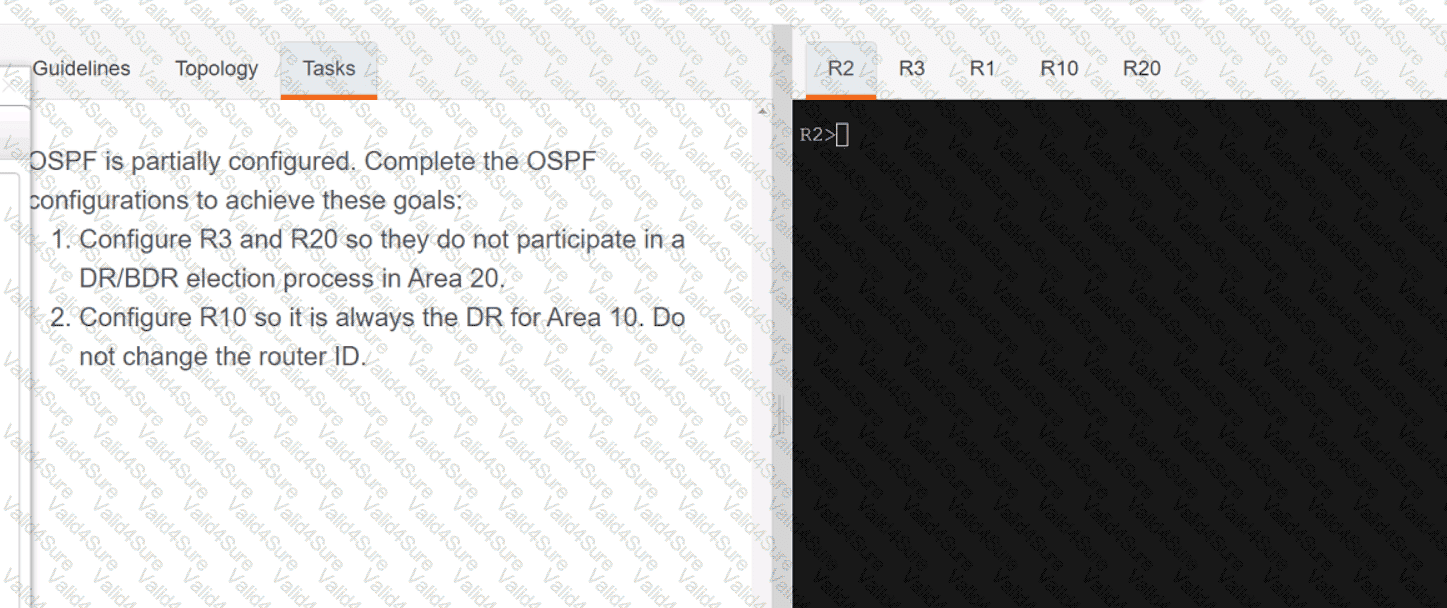

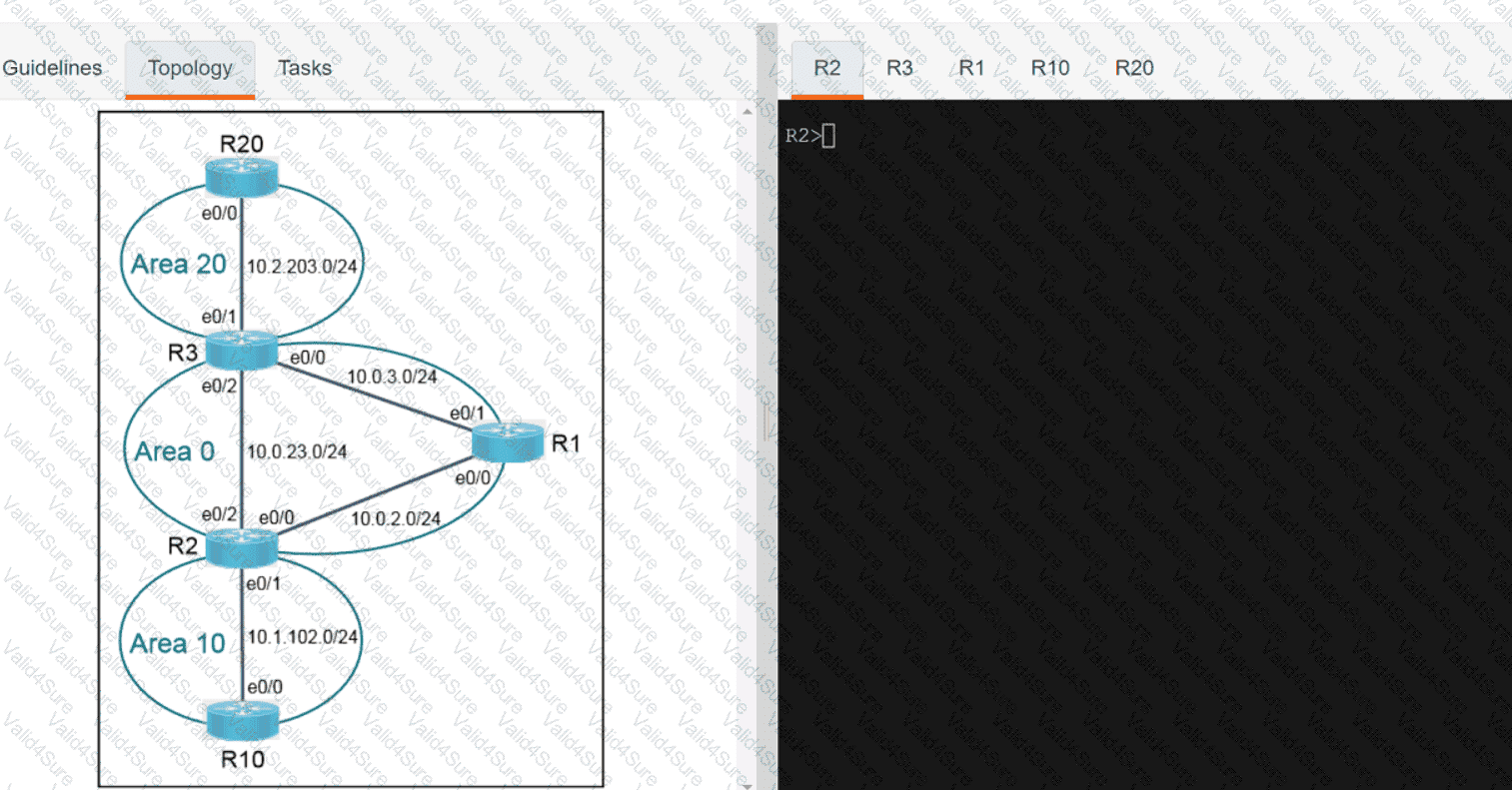

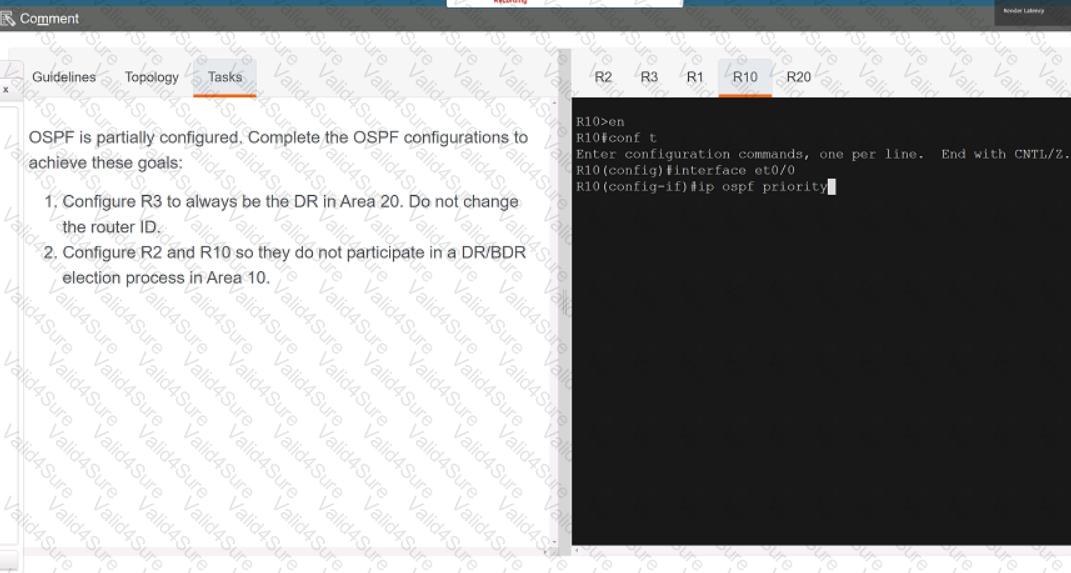

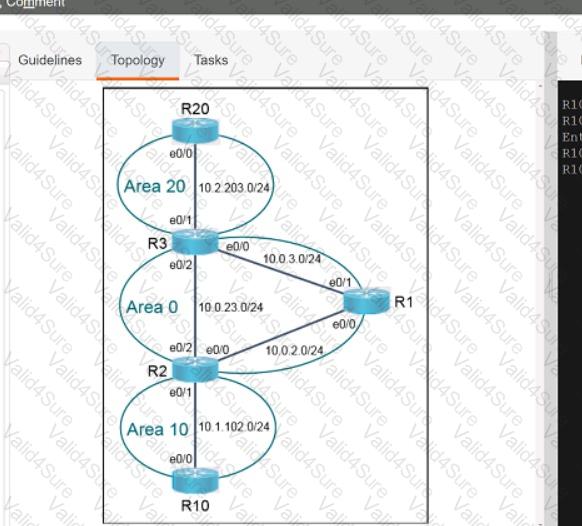

Solution:

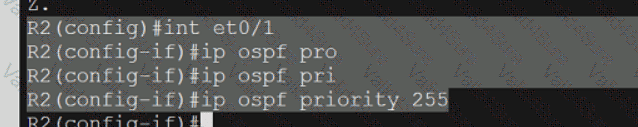

R3

Config#int et0/1

config-if#ip ospf priority 255

wr

R20

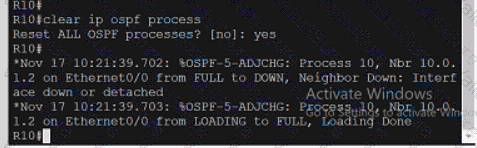

clear ip ospf process

yes

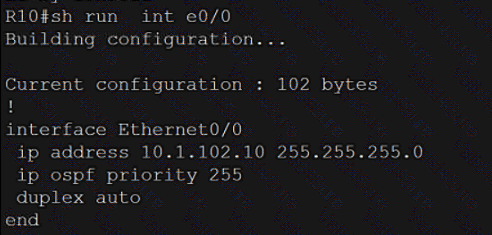

R10

int et0/0

ip ospf priority 0

wr

R2

clear ip ospf process

yes

Solution:

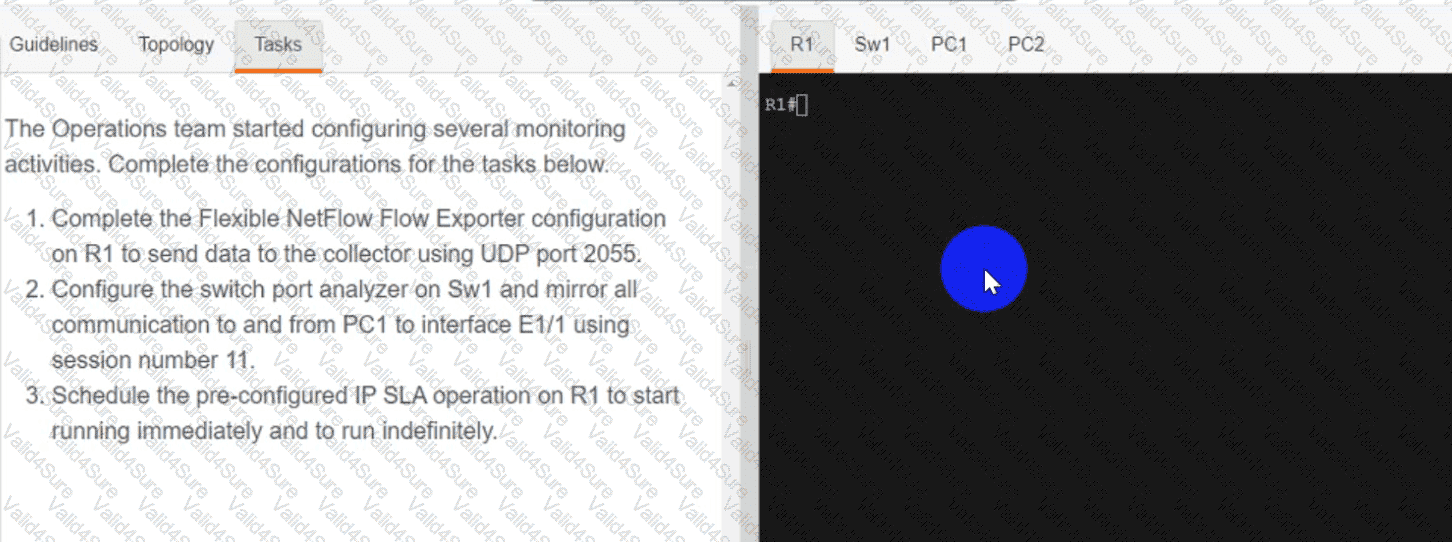

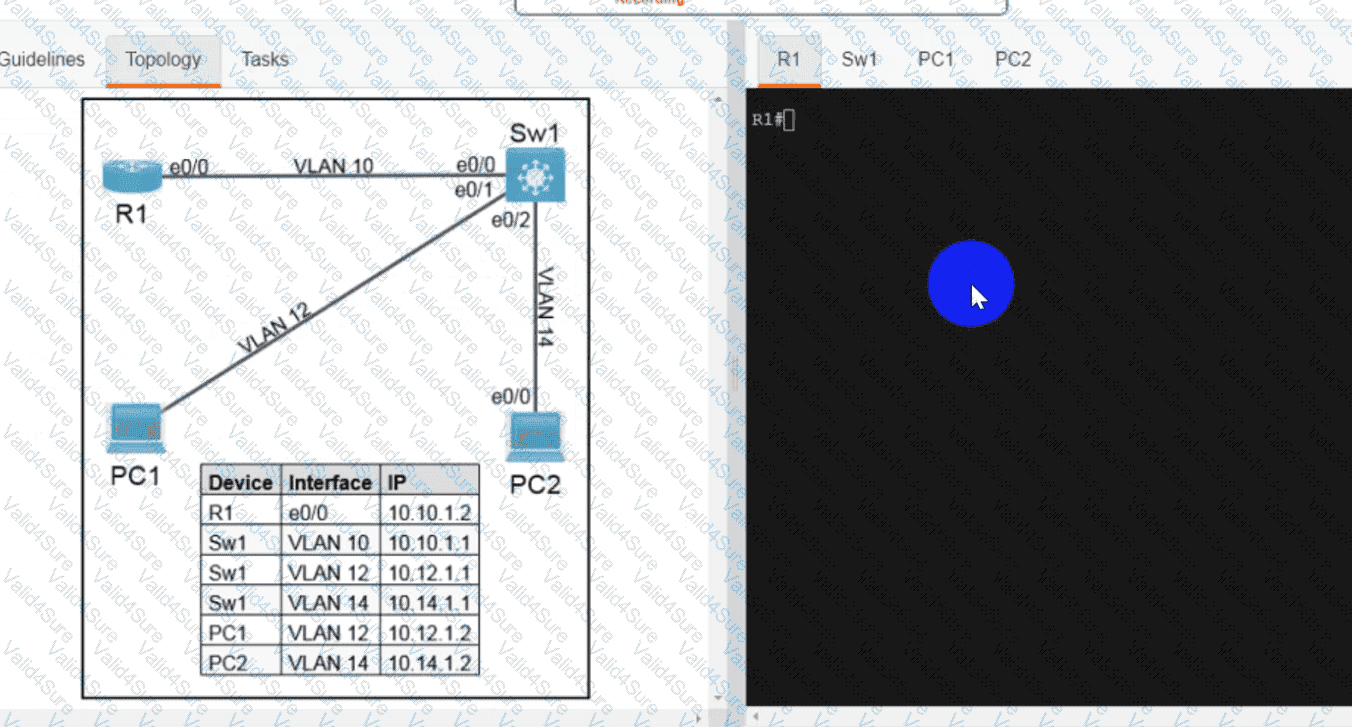

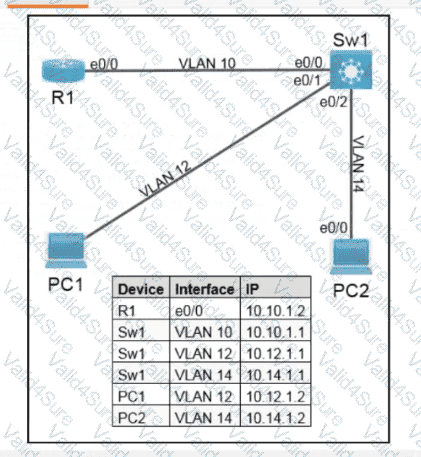

R1

Config t

Int et0/0

Ip flow monitor Monitor-R1Flow input

Ip flow monitor Monitor-R1Flow output

Exit

Ip sla 1

Icmp-echo 10.12.1.2

Freq 300

Ip sla schedule 1 life foreve start-time now

Sw1

Config t

Monitor session 12 source vlan 12

Monitor session 12 destination interface et1/3

Solution:

Copy run start

Verification:

OR

Solution:

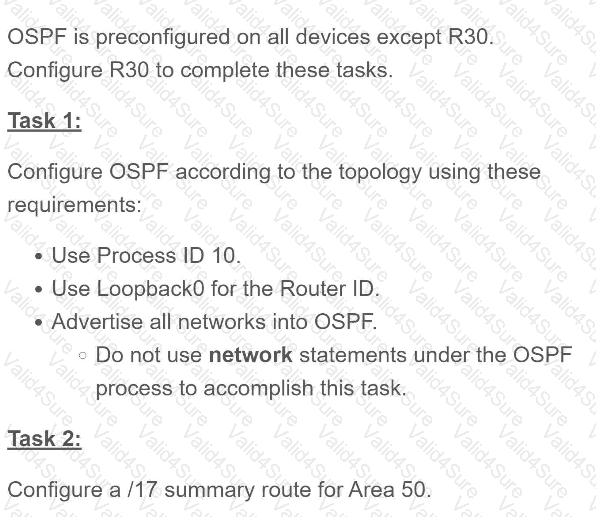

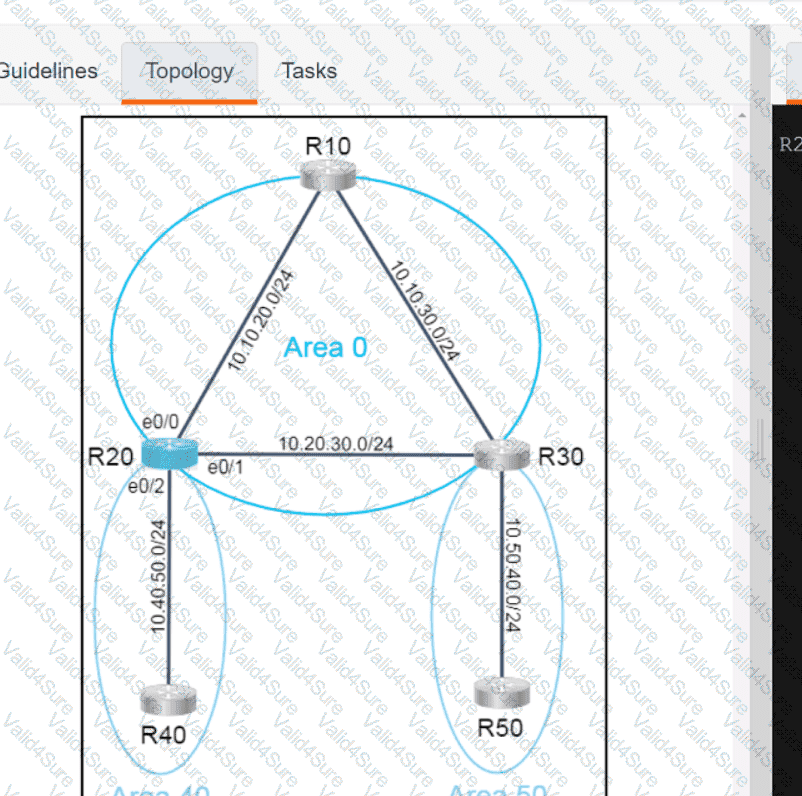

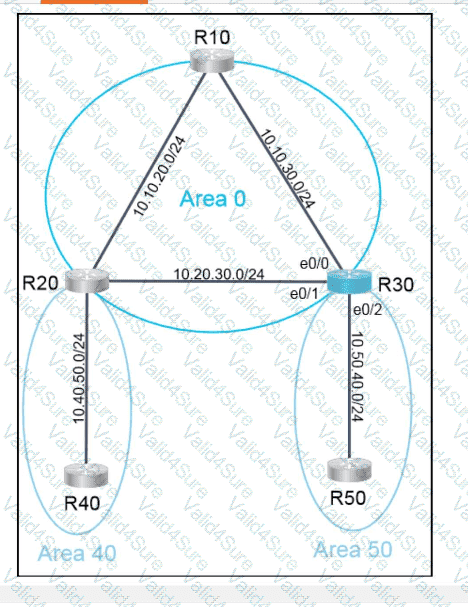

R30

Config t

router ospf 100

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 100 a 0

exit

int et0/2

ip ospf 100 a 50

exit

router ospf 30

area 50 range 10.10.0.0 255.255.192.0

area 50 range 10.50.0.0 255.255.192.0

end

wr
