350-501 Exam Dumps - Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR)

• References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

 For OSPF, the subnet mask must match between two devices on the same network segment to form an adjacency, as it defines the network’s address range. The hello timer setting is crucial for the OSPF Hello protocol, which is used for neighbor discovery and maintaining neighbor relationships. Finally, the area number must be the same because OSPF uses areas to define a hierarchy within the network, and routers within the same area share routing information.

References: OSPF is a link-state protocol that requires certain parameters to match for a successful adjacency. This includes the subnet mask, hello timer, and area number, which are fundamental to OSPF’s operation and ensure that routers can communicate effectively within the same area

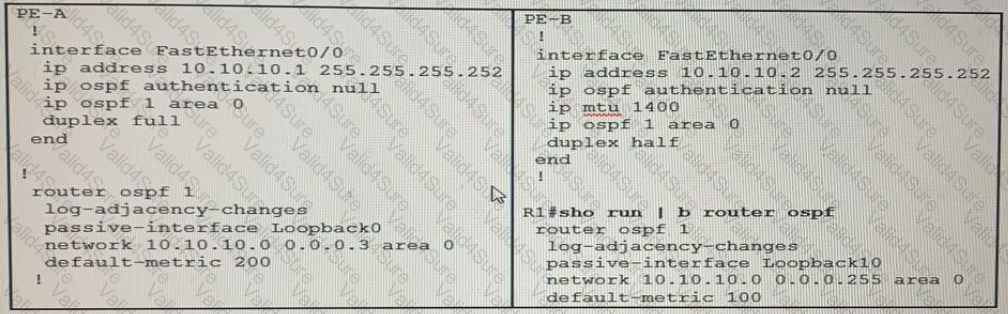

The OSPF neighbor relationship is not establishing due to a mismatch in MTU (Maximum Transmission Unit) settings on the interfaces of PE-A and PE-B routers. On PE-A, there is no MTU configuration under the interface FastEthernet0/0, which means it is using the default MTU setting. However, on PE-B, the MTU is explicitly set to 1400 bytes with “ip mtu 1400” command under interface FastEthernet0/0. OSPF requires that both ends of a point-to-point link have matching MTU sizes to form a neighbor relationship; otherwise, OSPF adjacency will not be established.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Resources

 In Segment Routing Traffic Engineering (SR-TE), when defining explicit path hops for devices using IP unnumbered interfaces, the router ID and labels are crucial. The router ID uniquely identifies a router in the network, while labels are used to direct packets along a specific path without relying on IP addresses, which is essential in unnumbered interface scenarios

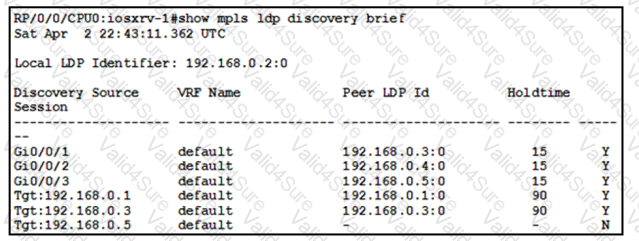

LDP session protection capability is a feature that maintains LDP bindings when a link fails, using LDP Targeted Hellos to protect LDP sessions. Without the specific exhibit, it’s not possible to determine which router has LDP session protection enabled but session hold up is not active.

References: Information about MPLS LDP Session Protection can be found in Cisco documentation, such as the Cisco IOS MPLS Configuration Guide.

• NetFlow provides traceback information by analyzing network traffic. To configure NetFlow for traceback, you need to set up a classification ACL (Access Control List) to identify which type of traffic will be analyzed. This allows NetFlow to focus on specific traffic flows and report relevant information. The classification ACL can be based on various criteria such as source/destination IP addresses, port numbers, or protocols. By defining the classification ACL, you ensure that only the relevant traffic is considered for NetFlow analysis.
• References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0
