The ‘best-effort’ command is used when implementing a configuration checkpoint on a Cisco Nexus 9000 Series Switch to ensure that the process skips any existing vPC configuration errors and completes even if there are other configuration errors. This command is suitable for scenarios where it’s critical to proceed with the checkpoint despite errors, allowing the engineer to create a rollback point and address issues without disrupting the entire process.

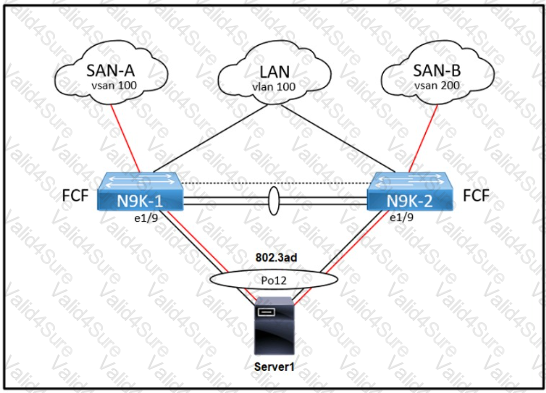

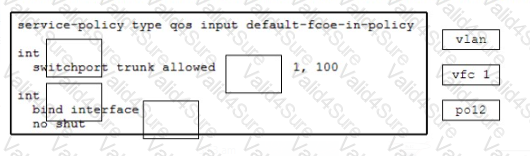

Po12

Vlan

Vfc1

Po12

 The file is queued for upload when connectivity is restored

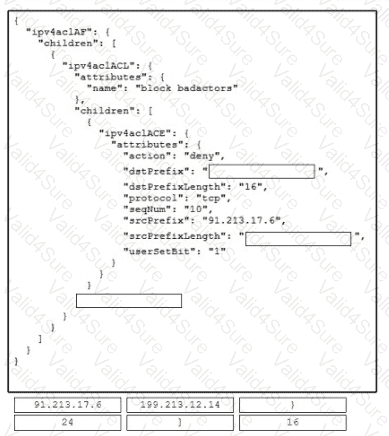

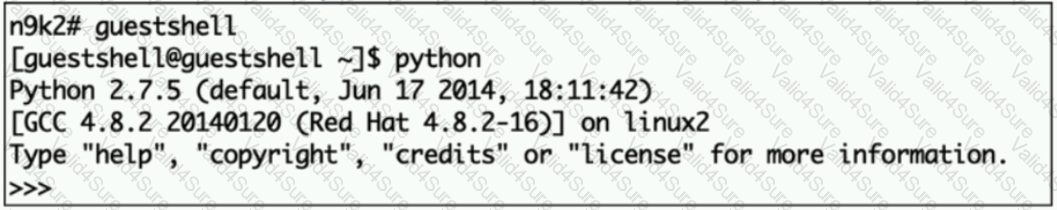

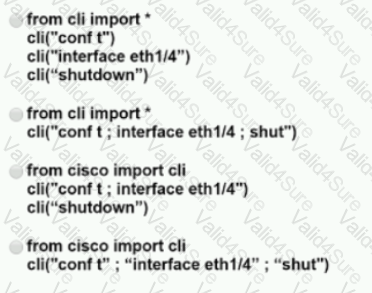

Option A is the correct command set to use the python module in the guest shell of the Cisco Nexus 9000 Series switch to shutdown port Ethernet 1/4. The commands import the cli module, which allows executing CLI commands from Python scripts, and then use the cli function to enter the configuration mode, specify the interface, and issue the shutdown command. References:

• Cisco Nexus 9000 Series NX-OS Programmability Guide, Release 9.3(x) - Python [Cisco Nexus 9000 Series Switches], Python, Using the CLI Module
• Cisco Nexus 9000 Series NX-OS Interfaces Configuration Guide, Release 9.3(x) - Configuring Interfaces [Cisco Nexus 9000 Series Switches], Configuring Interfaces, Shutting Down and Restarting an Interface

 The two components that support specific power limits on a Cisco UCS C-Series rack server are the processor and the graphic card. The processor and the graphic card are the two components that consume the most power on a server, and they can be configured to have specific power limits to control the power usage and performance of the server. The power limits can be set using the Cisco Integrated Management Controller (CIMC) web interface or CLI, or using the Cisco UCS Manager if the server is integrated with a Cisco UCS domain. The power limits can be applied to individual processors or graphic cards, or to the entire server. The power limits can help to optimize the power efficiency and thermal management of the server, as well as to prevent power capping or throttling issues. References :=

• Implementing and Operating Cisco Data Center Core Technologies (DCCOR) v1.2, Module 5: Cisco Unified Computing System, Lesson 5.4: Cisco UCS C-Series Servers
• Cisco UCS C-Series Servers Integrated Management Controller CLI Configuration Guide, Release 4.0, Chapter: Configuring Server Power, Section: Configuring Processor Power Limits
• Cisco UCS C-Series Servers Integrated Management Controller GUI Configuration Guide, Release 4.0, Chapter: Configuring Server Power, Section: Configuring Processor Power Limits

To meet the deployment requirements for implementing VSANs on a Cisco MDS 9000 Series Switch, the correct steps are to create VSAN 10 in the VSAN database and bind it to the interface fc1/1. This assigns the host on port fc1/1 to VSAN 10. Additionally, enabling VSAN trunking on the Inter-Switch Link (ISL) and allowing VSAN 10 on the ISL ensures that the port channel 10 can pass multiple VSANs, including VSAN 10. This configuration allows for the segregation of traffic and maintains the isolation of different VSANs while still permitting communication across the shared physical infrastructure12.

References:

• Cisco documentation on “Configuring VSANs and Interfaces” provides detailed steps on creating and managing VSANs1.
• The “Cisco MDS 9000 Series Fabric Configuration Guide” further elaborates on managing VSANs and their associated interfaces

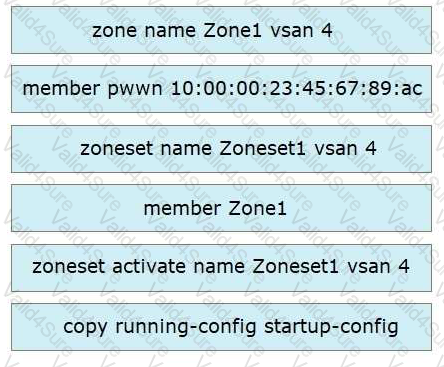

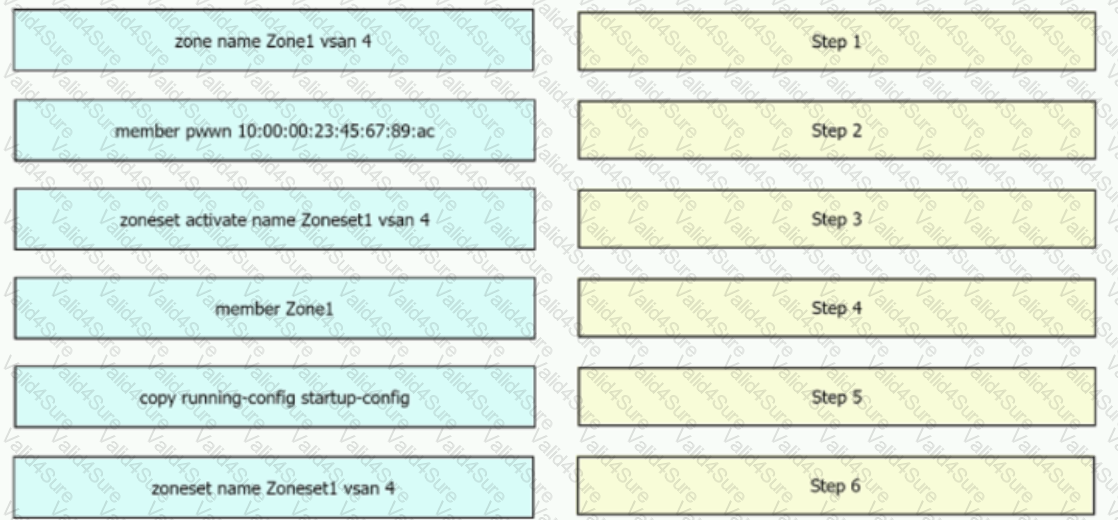

Graphical user interface, table Description automatically generated with medium confidence

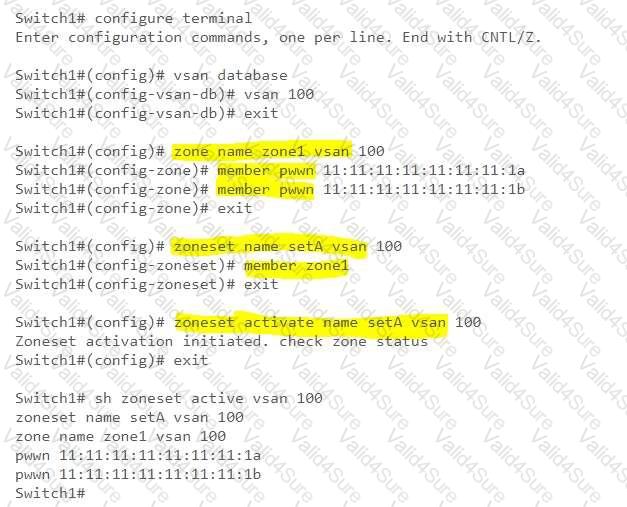

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/6_2/

configuration/guides/fabric/nx-os/nx_os_fabric/zone.html
