The command that should be used to configure the 10GbE client interface 1/7/C1 with a GFP-F encapsulation mode is config interface 1/7/C1 encmode 10client gfp-f. This command will set the encapsulation mode of the interface to GFP-F, which is a frame-mapped generic framing procedure that encapsulates Ethernet frames with a GFP header. The command also specifies that the interface is a 10GbE client interface, which means that it supports 10 Gigabit Ethernet LAN signals. The other commands are incorrect because they either have invalid syntax or use incorrect parameters for the interface or the encapsulation mode. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide

The calculated span loss from Node A to Node B is 10.0 dB. Span loss is the difference between the optical power transmitted and received at two points in a network. It can be calculated by subtracting the received power from the transmitted power. In the exhibit, the transmitted power from Node A to Node B is +7.5 dBm, and the received power at Node B from Node A is -2.5 dBm. Therefore, the span loss is +7.5 dBm - (-2.5 dBm) = 10.0 dB. The other options are incorrect because they do not match the calculation. References: Nokia Optical Diagnostics and Troubleshooting Course, Pluggable Optical Modules: Transceivers for the Cisco ONS Family Data Sheet

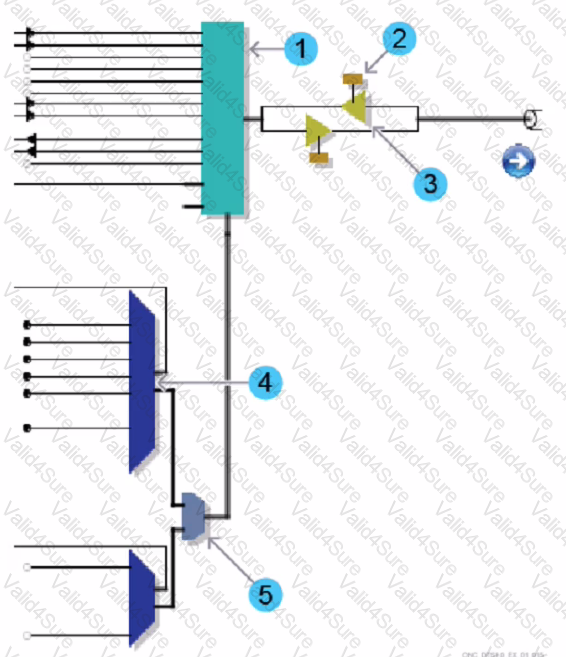

The Wavelength Router (WR8-88) block is a device that can route optical signals based on their wavelengths. It can also perform wavelength conversion, multiplexing, and demultiplexing functions. The Wavelength Router (WR8-88) block is part of the Nokia 1830 PSS-8x platform, which is optimized for metro aggregation switching applications in optical transport networks1. In the exhibit, the number 1 refers to the Wavelength Router (WR8-88) block, as indicated by the label WR8-88AF. The other numbers refer to different components of the system, such as transponders, amplifiers, and switches. References: Nokia Optical Diagnostics and Troubleshooting Course, DWDM 1830 PSS-8 WR8-88AF Board

The command show wavekey wtsource power displays a list of the expected and measured output power for the channels whose admin state is up. This command is useful to monitor the power levels of the channels that are encoded with Wave Keys, which are unique identifiers for wavelength tracking. The command output shows the channel number, wavelength, Wave Key ID, Wave Key Code, expected output power, measured output power, and power difference for each channel1. The command can be used on both OTs and amplifiers that support WT capability2. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia
