Here are the steps and explanations for creating a policy that can be linked to the planned application gateway and block connections from IP addresses in the 131.107.150.0/24 range:

To create a policy, you need to go to the Azure portal and select Create a resource. Search for WAF, select Web Application Firewall, then select Create1.

On the Create a WAF policy page, Basics tab, enter or select the following information and accept the defaults for the remaining settings:

Policy for: Regional WAF (Application Gateway)

Subscription: Select your subscription name

Resource group: Select your resource group

Policy name: Type a unique name for your WAF policy

On the Custom rules tab, select Add a rule to create a custom rule that blocks connections from IP addresses in the 131.107.150.0/24 range2. Enter or select the following information for the custom rule:

Rule name: Type a unique name for your custom rule

Priority: Type a number that indicates the order of evaluation for this rule

Rule type: Select Match rule

Match variable: Select RemoteAddr

Operator: Select IPMatch

Match values: Type 131.107.150.0/24

Action: Select Block

On the Review + create tab, review your settings and select Create to create your WAF policy1.

To link your policy to the planned application gateway, you need to go to the Application Gateway service in the Azure portal and select your application gateway3.

On the Web application firewall tab, select your WAF policy from the drop-down list and select Save

Here are the steps and explanations for ensuring that the storage34280945 storage account will only accept connections from hosts on VNET1:

To restrict network access to your storage account, you need to configure the Azure Storage firewall and virtual network settings for your storage account. You can do this in the Azure portal by selecting your storage account and then selecting Networking under Settings1.

On the Networking page, select Firewalls and virtual networks, and then select Selected networks under Allow access from1. This will block all access to your storage account except from the networks or resources that you specify.

Under Virtual networks, select + Add existing virtual network. Then select VNET1 from the list of virtual networks and select the subnet that contains the hosts that you want to allow access to your storage account1. This will enable a service endpoint for Storage in the subnet and configure a virtual network rule for that subnet through the Azure storage firewall2.

Select Add to add the virtual network and subnet to your storage account1.

Select Save to apply your changes1.

To archive all the metrics of VNET1 to an existing storage account, you can use Azure Monitor’s diagnostic settings. Here’s how you can do it:

Step-by-Step Solution

Step 1: Navigate to VNET1 in the Azure Portal

Open the Azure Portal.

Search for “Virtual networks” and select VNET1 from the list.

Step 2: Configure Diagnostic Settings

In the VNET1 blade, select “Diagnostic settings” under the “Monitoring” section.

Click on “Add diagnostic setting”.

Step 3: Set Up the Diagnostic Setting

Enter a name for the diagnostic setting (e.g., VNET1-Metrics-Archive).

Select the metrics you want to archive. You can choose from various metrics like TotalBytesReceived, TotalBytesSent, etc.

Under “Destination details”, select “Archive to a storage account”.

Choose the existing storage account where you want to archive the metrics.

Configure the retention period if needed.

Step 4: Save the Configuration

Review your settings to ensure everything is correct.

Click on “Save” to apply the diagnostic setting.

Explanation

Diagnostic Settings: These allow you to collect and route metrics and logs from your Azure resources to various destinations, including storage accounts, Log Analytics workspaces, and Event Hubs.

Metrics: Metrics provide numerical data about the performance and health of your resources. Archiving these metrics helps in long-term analysis and compliance.

Storage Account: Using an existing storage account ensures that the metrics are stored securely and can be accessed for future analysis.

By following these steps, you can ensure that all the metrics of VNET1 are archived to your existing storage account, enabling you to monitor and analyze the performance and health of your virtual network over time.

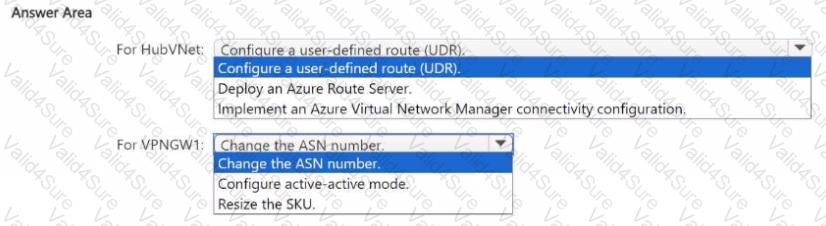

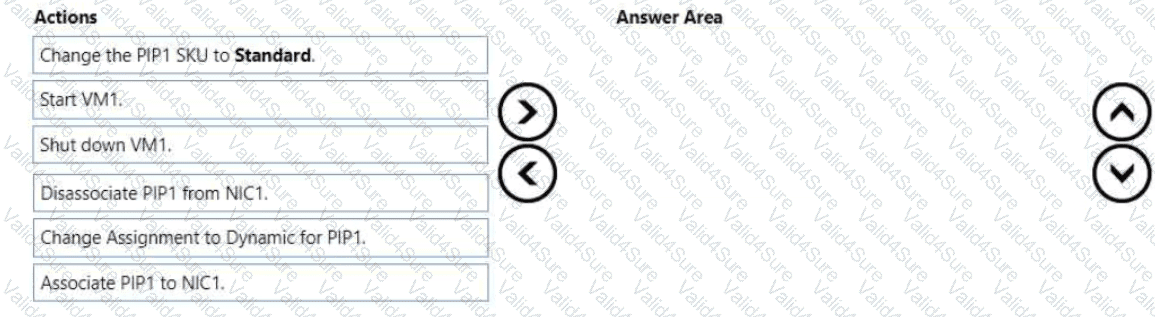

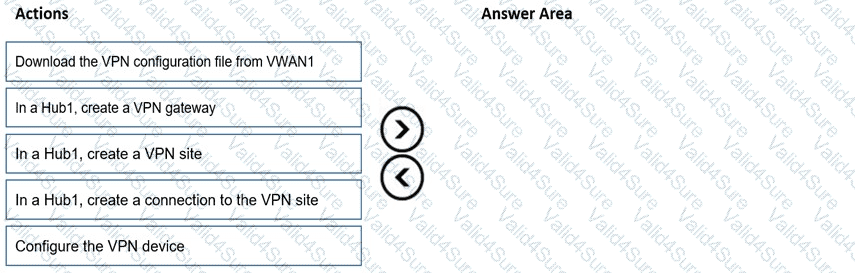

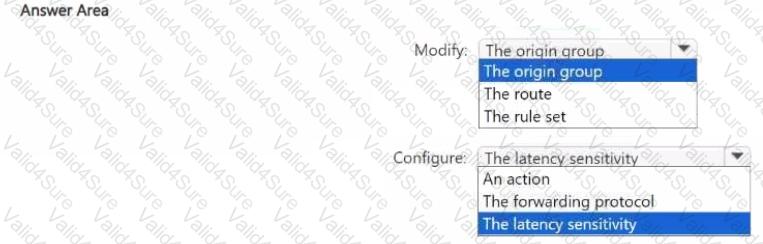

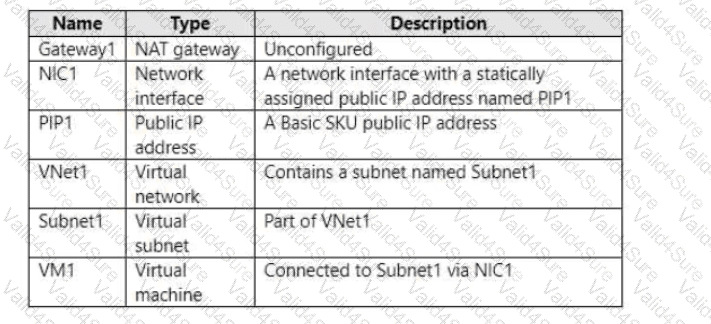

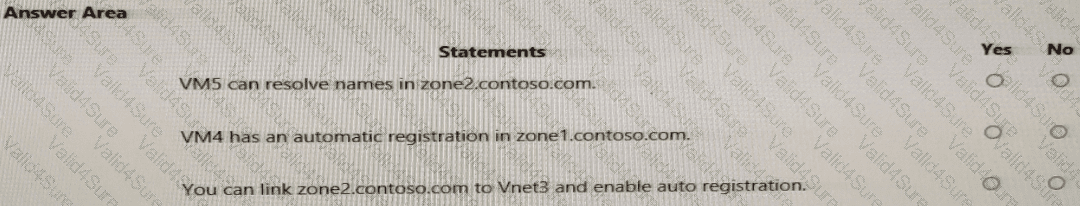

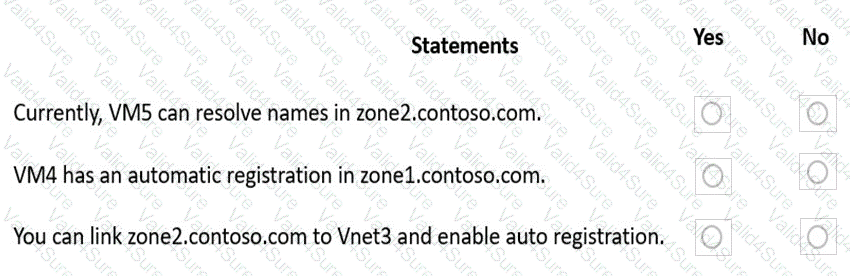

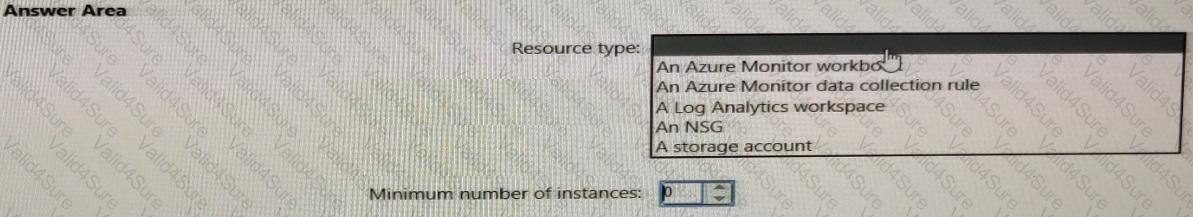

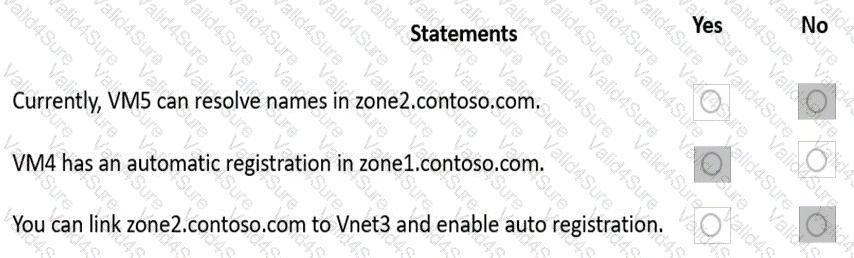

Box 1: No

Zone2.contoso.com is not linked to any virtual networks. Therefore, no VMs are able to resolve names in the zone.

Box 2: Yes

VM4 is in VNet3. Zone1.contoso.com has a link to VNet3 and auto-registration is enabled on the link.

Box3: No

VNet3 is linked to zone1.contoso.com and auto-registration is enabled on the link. A virtual network can only have one registration zone. You can link zone2.contoso.com to VNet3 but you won’t be able to enable auto-registration on the link.

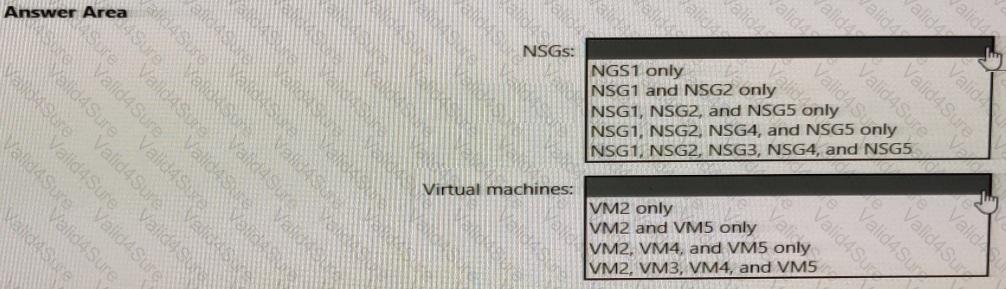

NGS1 only

VM2, VM3, VM4 and VM5

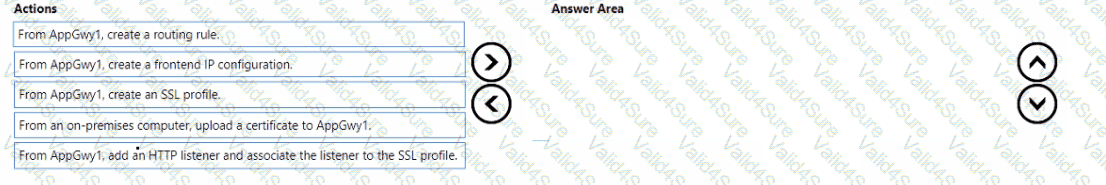

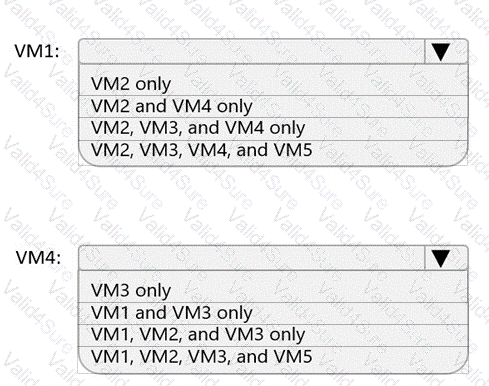

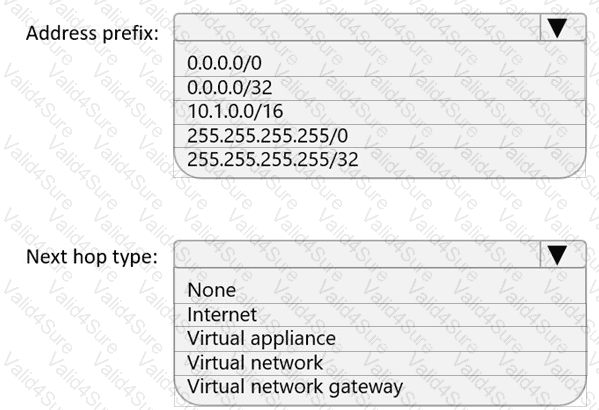

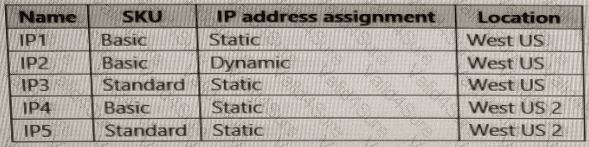

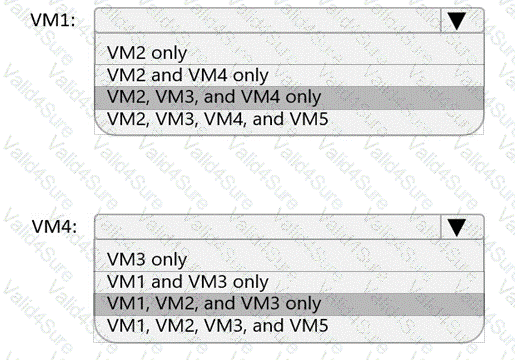

Box 1: VM2, VM3 and VM4.

VM1 is in VNet1/Subnet1. VNet1 is peered with VNet2 and VNet3.

There are no NSGs blocking outbound ICMP from VNet1. There are no NSGs blocking inbound ICMP to VNet1/Subnet2, VNet2 or VNet3. Therefore, VM1 can ping VM2 in VNet1/Subnet2, VM3 in VNet2 and VM4 in VNet3.

Box 2:

VM4 is in VNet3. VNet3 is peered with VNet1 and VNet2. There are no NSGs blocking outbound ICMP from VNet3. There are no NSGs blocking inbound ICMP to VNet1/Subnet1, VNet1/Subnet2 or VNet2 from VNet3 (NSG10 blocks inbound ICMP from VNet4 but not from VNet3). Therefore, VM4 can ping VM1 in VNet1/Subnet1, VM2 in VNet1/Subnet2 and VM3 in VNet2.
