AZ-800 Exam Dumps - Administering Windows Server Hybrid Core Infrastructure

To create a GPO named GPO1 that only applies to a group named MemberServers, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Group Policy Management from the Administrative Tools menu or by typing gpmc.msc in the Run box.

In the left pane, expand your domain and right-click on Group Policy Objects. Select New to create a new GPO.

In the New GPO dialog box, enter GPO1 as the Name of the new GPO and click OK. You can also optionally select a source GPO to copy the settings from.

Right-click on the new GPO and select Edit to open the Group Policy Management Editor. Here, you can configure the settings that you want to apply to the group under the Computer Configuration and User Configuration nodes. For more information on how to edit a GPO, see Edit a Group Policy Object.

Close the Group Policy Management Editor and return to the Group Policy Management console. Right-click on the new GPO and select Scope. Here, you can specify the scope of management for the GPO, such as the links, security filtering, and WMI filtering.

Under the Security Filtering section, click on Authenticated Users and then click on Remove. This will remove the default permission granted to all authenticated users and computers to apply the GPO.

Click on Add and then type the name of the group that you want to apply the GPO to, such as MemberServers. Click OK to add the group to the security filter. You can also click on Advanced to browse the list of groups available in the domain.

Optionally, you can also configure the WMI Filtering section to further filter the GPO based on the Windows Management Instrumentation (WMI) queries. For more information on how to use WMI filtering, see Filter the scope of a GPO by using WMI filters.

To link the GPO to an organizational unit (OU) or a domain, right-click on the OU or the domain in the left pane and select Link an Existing GPO. Select the GPO that you created, such as GPO1, and click OK. You can also change the order of preference by using the Move Up and Move Down buttons.

Wait for the changes to replicate to other domain controllers. You can also force the update of the GPO by using the gpupdate /force command on the domain controller or the client computers. For more information on how to update a GPO, see Update a Group Policy Object.

Now, you have created a GPO named GPO1 that only applies to a group named MemberServers. You can verify the GPO application by using the gpresult /r command on a member server and checking the Applied Group Policy Objects entry. You can also use the Group Policy Results wizard in the Group Policy Management console to generate a report of the GPO application for a specific computer or user. For more information on how to use the Group Policy Results wizard, see Use the Group Policy Results Wizard.

To map \\dd.contoso.com\instal1 as drive H for all users using Group Policy Preferences and ensure that the new drive mapping takes precedence over any existing mappings, follow these steps:

Step 1: Open Group Policy Management Console Open the Group Policy Management Console (GPMC) on a machine that has administrative privileges over the domain.

Step 2: Create or Edit a GPO Create a new Group Policy Object (GPO) or edit an existing one that applies to the users who need the drive mapping.

Step 3: Navigate to Drive Mappings In the GPO Editor, navigate to:

User Configuration -> Preferences -> Windows Settings -> Drive Maps

Step 4: New Drive Mapping Right-click on Drive Maps and select New -> Mapped Drive.

Step 5: Configure Drive Mapping In the New Drive Properties window, configure the following settings:

Action: Select Replace. This action will overwrite any existing mappings with the same drive letter.

Location: Enter the UNC path \\dd.contoso.com\instal1.

Drive Letter: Choose H: from the drop-down menu.

Reconnect: Check this option if you want the drive mapping to persist across logon sessions.

Label As: Optionally, provide a label for the drive mapping.

Hide/Show this drive: Set according to your preference.

Hide/Show all drives: Set according to your preference.

Step 6: Common Tab Go to the Common tab and configure the following:

Run in logged-on user’s security context (user policy option): Check this option.

Item-level targeting: Click on Targeting and set up any specific criteria if needed.

Step 7: Apply the GPO Click Apply and then OK to save the drive mapping configuration.

Step 8: Link the GPO Link the GPO to an Organizational Unit (OU) or domain that contains the users who should receive the drive mapping.

Step 9: Update Group Policy Instruct users to log off and log back on, or use the gpupdate /force command to refresh Group Policy on their computers.

One possible solution to ensure that you can manage DC1 by using Windows Admin Center on SRV1 is to install Windows Admin Center on SRV1 and add DC1 as a managed server. Windows Admin Center is a web-based management tool that allows you to manage servers, clusters, Windows PCs, and Azure virtual machines (VMs) from a single interface. Here are the steps to install Windows Admin Center on SRV1 and add DC1 as a managed server:

On SRV1, open a web browser and go to the folder named \dc1.contoso.com\install. Download the Windows Admin Center installer file (WindowsAdminCenter.msi) and save it to a local folder, such as C:\Temp.

Run the Windows Admin Center installer file and follow the installation wizard. You can choose to install Windows Admin Center as a desktop app or as a service. For more information on how to install Windows Admin Center, see Install Windows Admin Center.

After the installation is complete, launch Windows Admin Center from the Start menu or the desktop shortcut. If you installed Windows Admin Center as a service, you can access it from a web browser by using the URL https://localhost:6516 or https:// :6516, where is the name or IP address of SRV1.

On the Windows Admin Center dashboard, click Add to add a new connection. Select Server as the connection type and enter the name or IP address of DC1 in the Server name field. Optionally, you can specify the display name, description, and tags for the connection. Click Submit to add DC1 as a managed server.

On the Windows Admin Center dashboard, you should see DC1 listed under the Servers section. Click on DC1 to open the server overview page. From here, you can manage various aspects of DC1, such as roles and features, certificates, devices, events, files, firewall, processes, registry, services, and more. For more information on how to use Windows Admin Center to manage servers, see Manage servers with Windows Admin Center.

Now, you can manage DC1 by using Windows Admin Center on SRV1. You can also add more servers or other types of connections to Windows Admin Center and manage them from the same interface

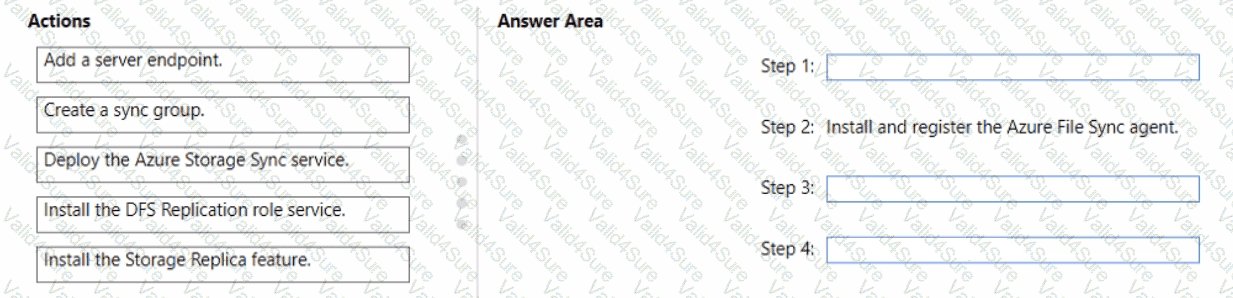

To use Azure File Sync to replicate the contents of C:\app on SRV1 to an Azure file share named sharel1, with the source files located in \\dc1.contoso.com\install, follow these steps:

Step 1: Prepare Windows Server for Azure File Sync Ensure that SRV1 meets the prerequisites for Azure File Sync, such as having a supported version of Windows Server and PowerShell 5.1 or later1.

Step 2: Deploy the Storage Sync Service In the Azure portal, deploy the Storage Sync Service in the same region as your Azure file share1.

Step 3: Create an Azure File Share Create an Azure file share named sharel1 in your storage account1.

Step 4: Install the Azure File Sync Agent Download and install the Azure File Sync agent on SRV11.

Step 5: Register SRV1 with the Storage Sync Service After installing the agent, register SRV1 with the Storage Sync Service using the Azure portal1.

Step 6: Create a Sync Group and Server Endpoint In the Azure portal, go to your Storage Sync Service and create a new sync group. Add a server endpoint with the path C:\app on SRV12.

Step 7: Configure Cloud Endpoint Add the Azure file share sharel1 as the cloud endpoint to the sync group2.

Step 8: Initiate the Sync Process The initial sync will start automatically after the cloud endpoint and server endpoint are added to the sync group. Ensure that the Azure File Sync agent is running on SRV11.

Step 9: Monitor the Sync Status Monitor the sync status in the Azure portal to ensure that the files are being replicated correctly from C:\app on SRV1 to the Azure file share sharel11.

Note: Make sure that the network connectivity between SRV1 and the Azure file share is established and that the necessary ports are open. Also, verify that the SMB security settings allow for the required SMB protocol version and authentication methods1.

By following these steps, you should be able to replicate the contents of C:\app on SRV1 to the Azure file share sharel1 using Azure File Sync. Ensure that you have the necessary permissions to perform these actions and that SRV1 is properly configured to communicate with Azure services.

To create a group-managed service account (gMSA) named gMSA1 and make it available on SRV1, you can follow these steps:

Step 1: Create the Key Distribution Services Root Key First, you need to create the KDS Root Key, which is required for the gMSA to function. You can do this with the following PowerShell command:

Add-KdsRootKey –EffectiveTime ((get-date).addhours(-10))

Note: The -EffectiveTime parameter is set to 10 hours in the past to ensure immediate effect.

Step 2: Create the gMSA Next, use the New-ADServiceAccount cmdlet to create the gMSA:

New-ADServiceAccount -Name gMSA1 -DNSHostName gmsa1.domain.com -PrincipalsAllowedToRetrieveManagedPassword SRV1$

Replace domain.com with your actual domain name.

Step 3: Install the gMSA on SRV1 Now, you need to install the gMSA on the server SRV1. Run the following command on SRV1:

Install-ADServiceAccount -Identity gMSA1

Step 4: Test the gMSA To ensure that the gMSA is installed correctly and ready for use, perform a test using:

Test-ADServiceAccount -Identity gMSA1

If the test returns True, the gMSA is correctly installed and ready for use on SRV1.

Step 5: Configure the Service to Use the gMSA Finally, configure the service that requires the gMSA to use gMSA1 by setting the service’s logon account to domain\gMSA1$ and leave the password field blank.

This will create and make the gMSA gMSA1 available on SRV1. Ensure that you have the necessary permissions and that SRV1 is properly joined to the domain before proceeding with these steps123.

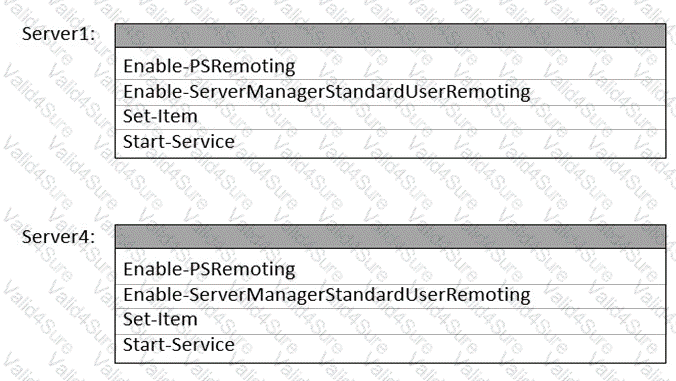

To manage SRV1 remotely using PowerShell, you’ll need to set up PowerShell Remoting. Here’s a step-by-step guide:

Step 1: Enable PowerShell Remoting on SRV1 On SRV1, run the following command to enable PowerShell Remoting:

Enable-PSRemoting -Force

This command configures the computer to receive PowerShell remote commands that are sent by using the WS-Management technology.

Step 2: Configure the TrustedHosts List (If Needed) If you’re managing SRV1 from a computer that is not part of the same domain, you’ll need to add the managing computer’s name to the TrustedHosts list on SRV1:

Set-Item wsman:\localhost\Client\TrustedHosts -Value "ManagingComputerName" -Concatenate -Force

Replace “ManagingComputerName” with the name of your managing computer.

Step 3: Start a Remote Session From your managing computer, start a remote session with SRV1 using the Enter-PSSession cmdlet:

Enter-PSSession -ComputerName SRV1 -Credential (Get-Credential)

This command prompts you for credentials and then starts a remote session with SRV1.

Step 4: Run Remote Commands Once the remote session is established, you can run any PowerShell command as if you were directly on SRV1. For example:

Get-Service

This command gets the status of services on SRV1.

Step 5: Exit the Remote Session When you’re finished, exit the remote session:

Exit-PSSession

Note: Ensure that both the managing computer and SRV1 are properly configured to communicate over the network, and that any firewalls allow for the necessary ports (default is 5985 for HTTP and 5986 for HTTPS) to be open for WS-Management traffic12.

By following these steps, you should be able to manage SRV1 remotely using PowerShell. Make sure you have the appropriate administrative privileges to perform these actions.

To run a container on SRV1 using the mcrmicrosoft.com/windows/servercofe/iis image, publish port 80 on the container to port 5001 on SRV1, and ensure it runs in the background, you can follow these steps:

Step 1: Pull the IIS Image First, pull the correct IIS image from the Microsoft Container Registry:

docker pull mcr.microsoft.com/windows/servercore/iis

Step 2: Run the Container Next, run the container with the required port mapping and ensure it runs in the background using the -d flag:

docker run -d -p 5001:80 --name iis_container mcr.microsoft.com/windows/servercore/iis

This command will start a container named iis_container using the IIS image, map port 80 inside the container to port 5001 on SRV1, and run the container in detached mode.

Step 3: Verify the Container is Running To verify that the container is running and the port is published, use the following command:

docker ps

This will list all running containers and show the port mappings.

Step 4: Access the IIS Server You can now access the IIS server running in the container by navigating to http:// :5001 in a web browser, where is the IP address of SRV1.

Note: Ensure that Docker is installed on SRV1 and that the port 5001 is open on the firewall to allow incoming connections1.

By following these steps, you should be able to run the IIS container on SRV1 with the specified port mapping and have it running in the background. Please replace mcrmicrosoft.com/windows/servercofe/iis with the correct image name mcr.microsoft.com/windows/servercore/iis as shown in the commands above.

One possible solution to prevent domain users from saving executable files in a share named \SRVl\Data is to use file screening on the file server. File screening allows you to block certain files from being saved based on their file name extension. Here are the steps to configure file screening:

On the file server, open File Server Resource Manager from the Administrative Tools menu.

In the left pane, expand File Screening Management and click on File Groups.

Right-click on File Groups and select Create File Group.

In the File Group Properties dialog box, enter a name for the file group, such as Executable Files.

In the Files to include box, enter the file name extensions that you want to block, such as .exe, .bat, .cmd, .com, .msi, .scr. You can use wildcards to specify multiple extensions, such as *.exe.

Click OK to create the file group.

In the left pane, click on File Screen Templates.

Right-click on File Screen Templates and select Create File Screen Template.

In the File Screen Template Properties dialog box, enter a name for the template, such as Block Executable Files.

On the Settings tab, select the option Active screening: Do not allow users to save unauthorized files.

On the File Groups tab, check the box next to the file group that you created, such as Executable Files.

On the Notification tab, you can configure how to notify users and administrators when a file screening event occurs, such as sending an email, logging an event, or running a command or script. You can also customize the message that users see when they try to save a blocked file.

Click OK to create the file screen template.

In the left pane, click on File Screens.

Right-click on File Screens and select Create File Screen.

In the Create File Screen dialog box, enter the path of the folder that you want to apply the file screening to, such as \SRVl\Data.

Select the option Derive properties from this file screen template (recommended) and choose the template that you created, such as Block Executable Files.

Click Create to create the file screen.

Now, domain users will not be able to save executable files in the share named \SRVl\Data. They will be able to save other files to the share.

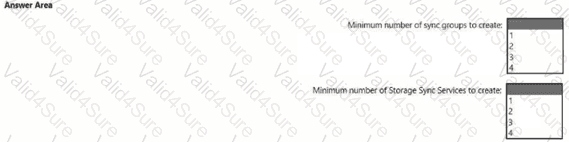

One possible solution to ensure that the Azure file share named share1 can sync to on-premises servers is to use Azure File Sync. Azure File Sync allows you to centralize your file shares in Azure Files without giving up the flexibility, performance, and compatibility of an on-premises file server. It does this by transforming your Windows Servers into a quick cache of your Azure file share. You can use any protocol available on Windows Server to access your data locally (including SMB, NFS, and FTPS) and you can have as many caches as you need across the world1.

Here are the steps to configure Azure File Sync for the Azure file share named share1 and the source files located in a folder named \dc1.contoso.com\install:

On the Azure portal, create a Storage Sync Service in the same region as your storage account that contains the Azure file share named share1. For more information on how to create a Storage Sync Service, see How to deploy Azure File Sync.

On the on-premises server that hosts the folder named \dc1.contoso.com\install, install the Azure File Sync agent. For more information on how to install the Azure File Sync agent, see Install the Azure File Sync agent.

On the on-premises server, register the server with the Storage Sync Service that you created in the first step. For more information on how to register a server with a Storage Sync Service, see Register/unregister a server with Storage Sync Service.

On the Azure portal, create a sync group that defines the sync topology for a set of files. In the sync group, select the Azure file share named share1 as the cloud endpoint and the folder named \dc1.contoso.com\install as the server endpoint. For more information on how to create a sync group, see Create a sync group and a cloud endpoint and Create a server endpoint.

Wait for the initial sync to complete. You can monitor the sync progress on the Azure portal or on the on-premises server. For more information on how to monitor sync progress, see [Monitor sync progress].

Once the initial sync is complete, you can add more on-premises servers to the same sync group to sync and cache the content locally. You can also enable cloud tiering to optimize the storage space on the on-premises servers by tiering infrequently accessed or older files to Azure Files.

To configure the domain to support the creation of gMSAs, you need to perform the following steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open PowerShell as an administrator and run the following command to install the Active Directory module:

Install-WindowsFeature -Name RSAT-AD-PowerShell

Run the following command to create a Key Distribution Service (KDS) root key, which is required for generating passwords for gMSAs. You only need to do this once per domain:

Add-KdsRootKey -EffectiveImmediately

Wait for at least 10 hours for the KDS root key to replicate to all domain controllers in the domain. Alternatively, you can use the -EffectiveTime parameter to specify a past date and time for the KDS root key, but this is not recommended for security reasons. For more information, see Add-KdsRootKey.

After the KDS root key is replicated, you can create and configure gMSAs using the New-ADServiceAccount and Set-ADServiceAccount cmdlets. For more information, see Create a gMSA and Configure a gMSA.

To run a container on SRV1 using the mcr.microsoft.com/windows/servercore/iis image, publish port 60 on the container to port 5001 on SRV1, and ensure it runs in the background, you can follow these steps:

Step 1: Pull the IIS Image First, pull the IIS image from the Microsoft Container Registry:

docker pull mcr.microsoft.com/windows/servercore/iis

Step 2: Run the Container Next, run the container with the required port mapping and ensure it runs in the background using the -d flag:

docker run -d -p 5001:60 --name iis_container mcr.microsoft.com/windows/servercore/iis

This command will start a container named iis_container using the IIS image, map port 60 inside the container to port 5001 on SRV1, and run the container in detached mode.

Step 3: Verify the Container is Running To verify that the container is running and the port is published, use the following command:

docker ps

This will list all running containers and show the port mappings.

Step 4: Access the IIS Server You can now access the IIS server running in the container by navigating to http:// :5001 in a web browser, where is the IP address of SRV1.

Note: Ensure that Docker is installed on SRV1 and that the port 5001 is open on the firewall to allow incoming connections1.

By following these steps, you should be able to run the IIS container on SRV1 with the specified port mapping and have it running in the background.

To collect the recommended Windows Performance Counters from SRV1 in a Log Analytics workspace, you can follow these steps:

Step 1: Access the Log Analytics Workspace Log in to the Azure portal and navigate to your Log Analytics workspace.

Step 2: Configure Performance Counters In the Log Analytics workspace, select Advanced settings and then choose Data > Windows Performance Counters1. You can add the recommended performance counters by selecting the + button. If you’re using legacy agent management, you can add counters from the Legacy agents management menu2.

Step 3: Add Performance Counters Select the counters you want to collect. You can add common counters quickly by checking the boxes next to them. For specific counters, enter the name of the counter in the format object(instance)\counter. For example, to collect the Processor Time counter for all instances of the Processor object, specify Processor(_Total)\% Processor Time.

Step 4: Set Sample Interval When adding a counter, you can set the sample interval, which is the frequency at which data is collected. The default is 10 seconds, but you can change this to a higher value if needed.

Step 5: Apply Configuration After adding the desired performance counters, select Apply at the top of the screen to save the configuration.

Step 6: Install and Configure the Agent Ensure that the Microsoft Monitoring Agent (MMA) is installed on SRV1. Configure the agent to report to your Log Analytics workspace by specifying the workspace ID and key during setup.

Step 7: Verify Data Collection After the agent is configured, it will start collecting the specified performance counters. You can verify the data collection in the Log Analytics workspace by running queries against the collected data.

Note: The legacy Log Analytics agent will be deprecated by August 2024. Migrate to the Azure Monitor agent before this date to continue ingesting data3.

By following these steps, you should be able to collect the recommended Windows Performance Counters from SRV1 in your Log Analytics workspace. Ensure that you have the necessary permissions and that SRV1 has network connectivity to Azure services.

Membership in the Enterprise Admins group or the Domain Admins group in the forest root domain is required.
