Understanding the Black Strap on the Power Supply Handle

Server Components (26%)

Identify power options and redundancy features, thermal features, and liquid cooling

Explanation of Power Supply Straps

Dell PowerEdge servers often use black straps on power supply units (PSUs) to indicate certain attributes of the PSU. The color of the strap can help identify specific features or categories of the power supply.

What Does "NAF" Mean?

NAF stands for Non-Redundant, Auto Failover.

This indicates that the PSU is part of a non-redundant configuration, but it is capable of automatic failover in the case of power loss.

This is typical in systems with multiple PSUs, where each PSU can take over if the other fails.

Why Not Other Options?

Option A: PSU

The strap does not indicate that the device is just a PSU; rather, it indicates a specific feature of the PSU.

Option C: RAF

RAF stands for Redundant Auto Failover, which is not the correct feature indicated by the black strap.

Option D: Spare PSU

The strap does not indicate that the PSU is a spare unit.

Conclusion

The black strap on the power supply handle indicates that the PSU is NAF (Non-Redundant, Auto Failover). This means it is part of a non-redundant system but capable of automatic failover.

Understanding iDRAC Direct and At-the-Box Management Tools

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

What is iDRAC Direct?

iDRAC Direct is a feature that allows administrators to connect directly to the iDRAC interface using a USB connection.

Purpose: Provides at-the-box management capabilities without the need for network access.

Connection: Utilizes a Micro USB port on the server connected to a management station (laptop/PC).

Advanced Server Management Tools Provided with iDRAC Direct

Web Services Management (WSMAN)

Explanation: WSMAN is a standardized protocol that allows for remote management of systems using web services.

Usage with iDRAC Direct: Administrators can execute management tasks via WSMAN over the USB connection provided by iDRAC Direct.

Benefits:

Platform-independent management.

Allows for scripting and automation.

Remote Access Controller Admin (RACADM)

Explanation: RACADM is a command-line utility used to manage the iDRAC and perform various administrative tasks.

Usage with iDRAC Direct: RACADM commands can be executed directly through the USB connection, enabling configuration and monitoring of the server.

Benefits:

Efficient management in environments with limited bandwidth.

Supports scripting for automation.

iDRAC RESTful API

Explanation: The iDRAC RESTful API is a programmatic interface that allows for the management of server hardware using RESTful web services.

Usage with iDRAC Direct: Provides a secure and efficient way to perform management tasks over the USB connection.

Benefits:

Modern API interface compatible with a wide range of programming languages.

Enables integration with automation tools and scripts.

Explanation of Options

Option A: Web Services Management (WSMAN)

Correct Answer: WSMAN is supported over iDRAC Direct for at-the-box management.

Option B: Remote Access Controller Admin (RACADM)

Correct Answer: RACADM commands can be executed via iDRAC Direct.

Option C: Intelligent Platform Management Interface Tool (IPMITool)

Incorrect: While IPMI is a management interface, the IPMITool is not provided specifically with iDRAC Direct for at-the-box management.

Option D: iDRAC Web Interface

Incorrect: The iDRAC Web Interface typically requires network access and is not directly provided over the iDRAC Direct USB connection for at-the-box management.

Option E: iDRAC RESTful API

Correct Answer: The RESTful API is accessible via iDRAC Direct for advanced management.

Dell Operate References

Server Management and Configuration Tools (14%)

Emphasizes understanding various management tools available with iDRAC Direct.

Define the function of the iDRAC, login procedures, licensing, and connection methods

Highlights the use of different interfaces and protocols for server management.

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

Focuses on different tools and their applications in server management.

Conclusion

The three tools provided with iDRAC Direct for advanced server management and at-the-box servicing are:

Web Services Management (WSMAN)

Remote Access Controller Admin (RACADM)

iDRAC RESTful API

These tools enable administrators to perform comprehensive management tasks directly at the server without the need for network connectivity.

Understanding Features of AMD Processors in Dell PowerEdge Servers

Server Components (26%)

Define the different processor, memory options, and memory configurations

Analyze server security features

Overview

AMD processors, specifically the AMD EPYC series, are utilized in Dell PowerEdge servers to provide high performance, scalability, and advanced security features. One of the standout features of AMD processors is Secure Encrypted Virtualization (SEV).

Explanation of Options

Option A: Supports up to four sockets

Explanation: AMD EPYC processors in current Dell PowerEdge servers typically support up to two sockets. Intel processors are more commonly associated with supporting up to four sockets in server configurations.

Conclusion: Incorrect.

Option B: Up to 60 cores

Explanation: AMD EPYC processors offer up to 64 cores per processor. While "up to 60 cores" is close, it does not fully capture the maximum core count offered.

Conclusion: While partially correct, not the most distinctive feature.

Option C: Fastest processor speeds

Explanation: Processor speeds vary depending on specific models and configurations. Both AMD and Intel offer processors with high clock speeds. Claiming the "fastest processor speeds" is subjective and not a definitive feature.

Conclusion: Not a unique feature.

Option D: Secure Encrypted Virtualization

Explanation: SEV is a security feature unique to AMD processors. It allows for the encryption of virtual machine memory, providing isolation between VMs and enhancing security in virtualized environments.

Features:

Encrypts VM memory with individual keys.

Protects against hypervisor-level attacks.

Enhances data security and compliance.

Conclusion: Correct Answer.

Dell Operate References

Server Components (26%):

Define the different processor, memory options, and memory configurations: Understanding the features and capabilities of AMD processors in server environments.

Analyze server security features: SEV is a significant security feature offered by AMD processors, enhancing virtualization security.

Conclusion

The standout feature of AMD processors in Dell PowerEdge servers is Secure Encrypted Virtualization, which enhances security in virtualized environments by encrypting VM memory.

Identifying Servers Designed for HPC, AI, and VDI Solutions with Highest GPU Density

Server Portfolio and Features (10%)

Identify server features and specifications

Position the server in the market landscape

Understanding the Requirements

High-Performance Computing (HPC), Artificial Intelligence (AI), and Virtual Desktop Infrastructure (VDI) workloads require servers with:

High GPU Density: Ability to support multiple GPUs for intensive computational tasks.

Optimized Performance: Enhanced CPU capabilities, memory bandwidth, and storage options.

Evaluation of Options

Option A: XR11

Explanation: The PowerEdge XR11 is a ruggedized, single-socket server designed for edge computing and harsh environments. It has limited GPU support.

Conclusion: Not suitable for highest GPU density.

Option B: XE9680

Explanation: The PowerEdge XE9680 is a high-performance server designed specifically for HPC and AI workloads.

Features:

Supports up to 8 double-width GPUs, offering the highest GPU density.

Ideal for AI training, deep learning, and complex simulations.

Conclusion: Correct Answer.

Option C: R660xs

Explanation: The PowerEdge R660xs is a 1U, dual-socket server optimized for scalability and density but with limited GPU support.

Conclusion: Not designed for maximum GPU density.

Option D: R7615

Explanation: The PowerEdge R7615 is a 2U, single-socket server with support for GPUs but not the highest GPU density.

Conclusion: Not the best fit for this requirement.

Option E: XE8640

Explanation: The PowerEdge XE8640 is engineered for performance-intensive workloads.

Features:

Supports up to 4 double-width GPUs.

Optimized for HPC, AI, and VDI applications requiring high GPU density.

Conclusion: Correct Answer.

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications: Recognizing which server models offer the necessary GPU density for specific workloads.

Server Components (26%)

Explain how expansion cards are connected and the features of the GPU: Understanding GPU integration and its impact on server performance.

Conclusion

The PowerEdge XE9680 and XE8640 are designed to provide the highest GPU density for HPC, AI, and VDI solutions. They support multiple high-performance GPUs, making them ideal for compute-intensive tasks.

Entering BIOS Progress Mode on a Non-Responsive Dell PowerEdge R660 During POST

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST

Analyze the visual indicators on server components - system ID, PSU, and BLINK

Understanding the Scenario

Server Model: Dell PowerEdge R660

Issue: Not responding during POST (Power-On Self-Test)

Objective: Enter BIOS Progress Mode to troubleshoot the issue

What is BIOS Progress Mode?

BIOS Progress Mode is a diagnostic feature that allows the system to display detailed POST codes and progress indicators during the boot process. This can help administrators identify where the boot process is stalling.

How to Enter BIOS Progress Mode

Method: Press and hold the System ID button for more than five seconds during the boot process.

Effect:

Forces the server into BIOS Progress Mode.

Displays detailed POST information on the screen.

Helps in diagnosing issues that prevent the server from completing POST.

Explanation of Options

Option A: Press and hold the power button for 15 seconds.

Analysis:

Holding the power button for an extended period typically forces a hard shutdown or initiates a power reset.

Does not help in entering BIOS Progress Mode.

Conclusion: Incorrect.

Option B: Enter <F2> when the server tries to POST.

Analysis:

Pressing during POST is the standard method to enter the BIOS Setup Utility.

However, if the server is not responding during POST, this method may not be effective.

Does not specifically enable BIOS Progress Mode.

Conclusion: Less effective.

Option C: Press and hold the System ID button for more than five seconds.

Analysis:

Pressing and holding the System ID button for over five seconds triggers the server to enter BIOS Progress Mode.

This method is designed for situations where the server is unresponsive during POST.

Conclusion: Correct Answer.

Option D: Disconnect and reconnect the power cables for both PSUs.

Analysis:

Power cycling the server by disconnecting and reconnecting power may not resolve POST issues.

Does not enable BIOS Progress Mode.

Conclusion: Unlikely to help.

Dell Operate References

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST:

Understanding how to enter BIOS Progress Mode is essential for diagnosing POST-related issues.

Analyze the visual indicators on server components - system ID, PSU, and BLINK:

System ID Button:

Located on the front panel of the server.

Serves multiple functions, including identifying the server in a rack and triggering diagnostic modes.

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management:

Familiarity with BIOS access methods and diagnostic tools is crucial for system administrators.

Conclusion

When a Dell PowerEdge R660 server is not responding during POST, pressing and holding the System ID button for more than five seconds will force the server into BIOS Progress Mode. This allows the administrator to see detailed POST codes and identify where the boot process is failing.

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here's how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

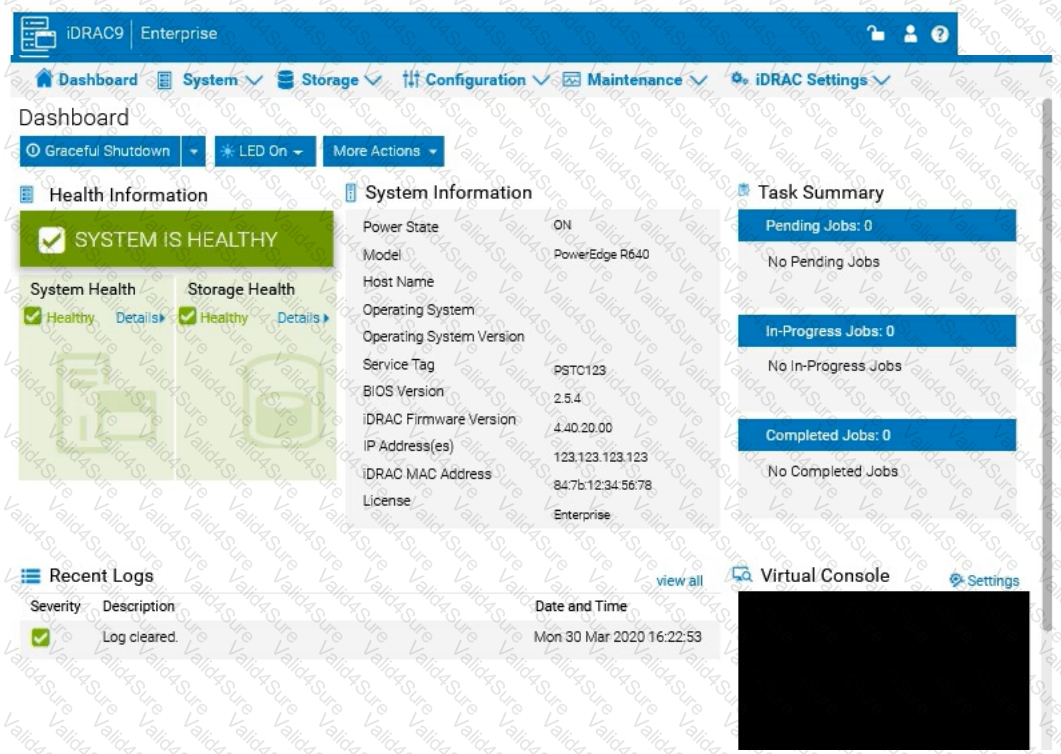

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A. Under voltage fault detection on power supply 1: Indicates a voltage issue was detected on PSU1.

B. Power supply 2 has failed: Indicates PSU2 has completely failed.

C. Under voltage fault detected on power supply 2: Indicates a voltage issue was detected on PSU2.

D. Power supply 1 has failed: Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue, the most likely scenario involves a failure or under-voltage detection.
