HPE6-A70 Exam Dumps - Aruba Certified Mobility Associate Exam

Go to page:

Question # 9

A network administrator needs to configure firewall rules for three roles:

Finance
Sales
Employee

Several rules apply to both the Employee and Sales roles, but not to the Finance role. What is the simplest way to configure these rules?

Define the Employee and Sales roles as internal roles, and then configure the rules as global rules for internal users.

Apply these rules as a subnet-based policy, and then ensure that only Employee and Sales users are assigned IP addresses in that subnet.

Select either the Employee or Sales role, and then configure these rules within the global policy.

Create a policy with these rules, and then apply that policy to the Employee and Sales roles.

Full Access

Question # 10

A company has a Mobility Master (MM)-based solution. A network administrator wants to monitor the types of applications in use in the wireless network.

Which dashboard page in the MM interface should the administrator visit?

Security

Performance

Traffic Analysis

Network

Full Access

Question # 11

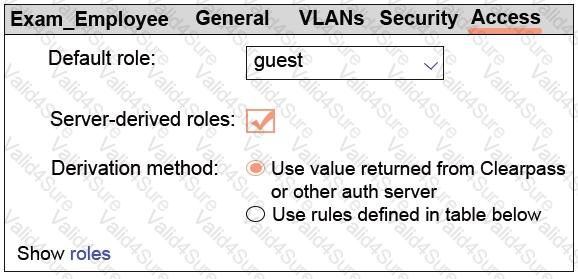

Refer to the exhibit.

A network administrator sets up the Exam_Employees WLAN on an Aruba solution with a default role of guest, as shown in the exhibit. To which users does the guest role apply?

users who successfully authenticate and are assigned to the default role by the RADIUS server

users who successfully authenticate and are not assigned a different role by the RADIUS server

users who have connected to the SSID, but have not yet attempted authentication

users who fail authentication

Full Access

Question # 12

A company has an Aruba Mobility Master (MM)-based solution that runs ArubaOS 8 and uses the default AirMatch and Client Match settings. The ARM profile has been disabled for 5GHz radios. How are channel and transmit power settings managed for these radios?

with legacy ARM

with Rule Based Client Match

with legacy Client Match

with AirMatch

Full Access

Question # 13

A customer has a large campus that requires 400 Aruba 335 APs to support a total of 20,000 wireless users and 12Gbps of traffic. Although the customer wants two controllers for redundancy, each controller must be able to support all of the APs and users on its own.

Which Aruba Mobility Controller models meet the customer requirements and DO NOT unnecessarily exceed them?

Aruba 7024 controllers

Aruba 7210 controllers

Aruba 7240 controllers

Aruba 7030 controllers

Full Access

Question # 14

A company has a single Aruba Mobility Master (MM)-based solution with two Mobility Controllers (MCs). Network administrators want APs in building 1 to support a WLAN but do not want APs in building 2 to support the WLAN.

How can administrator ensure that they can enforce this rule as they set up the WLAN in the Mobility Master (MM) Interface?

Place APs in different buildings in different AP Groups.

Assign APs in different buildings to different MM nodes.

Configure APs in different buildings to use different frequency bands.

Assign different radio profiles to APs in different buildings.

Full Access

Question # 15

A network administrator needs to create an Aruba firewall rule that permits wireless users to receive DHCP settings when they first connect to the Aruba solution. What are the correct source and destination aliases for the rule?

source = any and destination = user

source = any and destination = any

source = user and destination = user

source = user and destination = any

Full Access

Question # 16

A company has an Aruba solution and wants to provide guests with wireless access. The company wants to assign guests IP addresses in subnets that exist only within the Aruba solution.

Which feature should network administrators set up so guests can send traffic on the Internet without changes to the company routing solution?

Enable NAT on the VLAN assigned to the guest WLAN.

Set up a dynamic default gateway on the Mobility Controllers (MCs).

Create destination NAT rules for the guest role.

Enable policy-based routing for the guest traffic.

Full Access
