When using security profiles to limit system resources in Juniper logical systems:

No Resource Specification (Answer B): If a resource limit is not specified for a logical system, no specific amount of system resources is reserved for it. Instead, the logical system competes for resources along with others in the system, up to the maximum available. This allows flexible resource allocation, where logical systems can scale based on actual demand rather than predefined limits.

Multiple Logical Systems per Security Profile (Answer D): A single security profile can be applied to multiple logical systems. This allows administrators to define resource limits once in a profile and apply it across several logical systems, simplifying management and ensuring consistency across different environments.

These principles ensure efficient and flexible use of system resources within a multi-tenant or multi-logical-system environment.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Scenario:

Objective: Deploy OSPF over IPsec between an SRX Series device and a third-party device using GRE tunnels.

Components Involved:

GRE (Generic Routing Encapsulation): Encapsulates packets to allow routing protocols like OSPF to run over IPsec tunnels.

IPsec: Provides security for the GRE tunnels.

OSPF: Dynamic routing protocol used over the GRE tunnel.

Option A: The GRE interface should use lo0 as endpoints.

Explanation:

Using the loopback interface (lo0) as the source and destination endpoints for GRE tunnels is a common best practice.

Advantages:

Stability: Loopback interfaces are always up, ensuring the GRE tunnel remains operational even if physical interfaces fail.

Reachability: Provides consistent endpoint IP addresses for GRE tunnels.

Configuration:

Assign IP addresses to lo0 interfaces on both devices.

Configure GRE tunnels to use these lo0 IP addresses as source and destination.

The exhibit describes a Chassis Cluster configuration with high availability (HA) settings. The key information is related to Service Redundancy Group 1 (SRG1) and its failover behavior between the two peers.

Explanation of Answer D (Packet Forwarding after Failover):

In a typical SRX HA setup with active/backup configuration, if the SRG1 group moves to peer 2 (the backup), peer 1 (previously the active node) will forward packets to peer 2 instead of dropping them. This ensures smooth failover and seamless continuation of services without packet loss.

This behavior is part of the active/backup failover process in SRX chassis clusters, where the standby peer takes over traffic processing without disruption.

Juniper Security Reference:

Chassis Cluster Failover Behavior: When a service redundancy group fails over to the backup peer, the previously active peer forwards traffic to the new active node. Reference: Juniper Chassis Cluster Documentation.

==========

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Scenario:

SRX-1 and SRX-3:

Need to establish an EBGP session through SRX-2.

Issue:

BGP session is not coming up despite correct configurations on SRX-1 and SRX-3.

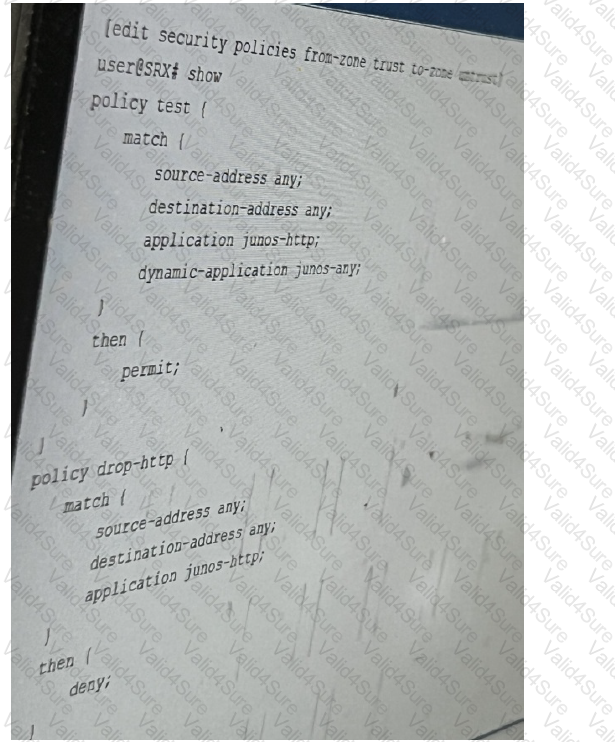

Option D: The security policy to allow SRX-1 and SRX-3 to communicate on TCP port 179 should be configured.

Explanation:

BGP uses TCP port 179 for establishing sessions.

SRX-2 must have a security policy allowing traffic between SRX-1 and SRX-3 on TCP port 179.

==========

==========

==========

==========

Persistent NAT with target host allows external hosts to establish connections only when the internal device initiates a session first, ideal for specific interactive applications. Refer to Juniper Persistent NAT Documentation.

The scenario requires that external hosts be able to initiate a connection only if the internal device has already initiated a connection. The correct solution is Persistent NAT with target host, which ensures that a specific external host can initiate new connections back to the internal device, but only after the internal device has established a session first.

Persistent NAT with Target Host (Answer C): This allows the internal device to initiate a connection, and once established, the specified external host can also initiate new connections to the internal device on the same NAT mapping.

Example Configuration:

bash

set security nat source persistent-nat permit target-host-port

This solution is appropriate when controlled bidirectional communication is required based on an internal-initiated connection.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding NAT64:

NAT64 allows IPv6-only clients to communicate with IPv4 servers by translating IPv6 addresses to IPv4 addresses and vice versa.

It is essential in environments where IPv6 clients need access to IPv4 resources.

Flow-Based vs. Packet-Based Forwarding Modes:

Flow-Based Forwarding Mode:

The SRX device processes packets based on the session state.

Supports advanced services like NAT, IDP, and ALG.

Packet-Based Forwarding Mode:

The SRX device processes each packet individually without maintaining session state.

Limited support for advanced services.

Option A: An SRX Series device should be in flow-based forwarding mode for IPv4.

True.

NAT64 requires flow-based mode for IPv4 traffic to properly translate and maintain session states.

Option B: An SRX Series device should be in packet-based forwarding mode for IPv4.

False.

Packet-based mode does not support NAT features.

Option C: An SRX Series device should be in packet-based forwarding mode for IPv6.

False.

Similar to IPv4, NAT64 requires flow-based mode for IPv6 traffic.

Option D: An SRX Series device should be in flow-based forwarding mode for IPv6.

True.

Flow-based mode is necessary for NAT64 to handle IPv6 traffic correctly.

Key Points:

NAT64 Requires Flow-Based Mode:

Both IPv4 and IPv6 interfaces involved in NAT64 must be configured in flow-based mode.

This is because NAT64 relies on session information and stateful packet inspection.

Packet-Based Mode Limitations:

Does not support NAT, as it lacks session awareness.

Not suitable for NAT64 operations.

Juniper Security References:

Juniper Networks Documentation:

"NAT64 is supported only in flow-based processing mode."

Source: Configuring NAT64

Understanding Flow-Based and Packet-Based Modes:

"Flow-based mode is required for stateful services such as NAT."

Source: Flow-Based and Packet-Based Processing

Conclusion:

To implement NAT64 on an SRX Series device, both IPv4 and IPv6 traffic must be processed in flow-based forwarding mode.

Therefore, Options A and D are the correct statements.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding Advanced Policy-Based Routing (APBR):

APBR: Allows routing decisions based on application-level information and policies.

Objective: Direct specific application traffic through different paths based on policies.

Routing Instances in Junos OS:

Forwarding Instance:

Used for features like filter-based forwarding (FBF) and APBR.

Provides a separate forwarding table but shares the global routing table.

Supports APBR.

Virtual Router:

Provides a separate routing table and forwarding table.

Used for logical separation of routing domains.

Does not support APBR directly.

Virtual Switch:

Operates at Layer 2.

Used for VLAN separation and Layer 2 switching.

Not applicable to routing or APBR.

Non-Forwarding Instance:

Used for management purposes.

Does not forward transit traffic.

Not suitable for APBR.

Option A: forwarding

Correct.

A forwarding routing instance is specifically designed to support advanced policy-based routing.

It allows the SRX device to direct traffic based on policies to different forwarding instances.

Aggressive mode is required when an IP address is dynamically assigned, such as through DHCP, as it allows for faster establishment with less identity verification. More details are available in Juniper IKE and IPsec Configuration Guide.

The configuration shown in the exhibit highlights that the RemoteSite1 SRX Series device is using DHCP to obtain an IP address for its external interface (ge-0/0/2). This introduces a challenge in IPsec VPN configurations when the public IP address of the remote site is not static, as is the case here.

Aggressive mode in IKE (Internet Key Exchange) is designed for situations where one or both peers have dynamically assigned IP addresses. In this scenario, aggressive mode allows the devices to exchange identifying information, such as hostnames, rather than relying on static IP addresses, which is necessary when the remote peer (RemoteSite1) has a dynamic IP from DHCP.

Correct Action (D): Changing the IKE policy mode to aggressive will resolve the issue by allowing the two devices to establish the VPN even though one of them is using DHCP. In aggressive mode, the initiator can present its identity (hostname) during the initial handshake, enabling the VPN to be established successfully.

Incorrect Options:

Option A: Changing the external interface to st0.0 is incorrect because the st0 interface is used for the tunnel interface, not for the IKE negotiation.

Option B: Changing to IKE version 2 would not resolve the dynamic IP issue directly, and IKEv1 works in this scenario.

Option C: Changing the IKE proposal set to basic doesn't address the dynamic IP challenge in this scenario.

Juniper References:

Juniper IKE and VPN Documentation: Provides details on when to use aggressive mode, especially when a dynamic IP address is involved.

==========

In the exhibit, the CoS-based VPN configuration is not functioning correctly due to an issue with the number of forwarding classes. The maximum number of forwarding classes supported for CoS-based VPNs with multiple SAs (security associations) is typically four forwarding classes. In this case, more than four forwarding classes are defined.

To solve the issue, one forwarding class must be deleted to ensure that the total number of forwarding classes is reduced to four or fewer.

To enable Advanced Policy-Based Routing (APBR) on SRX Series devices, three key components are necessary: filter-based forwarding, routing instances, and APBR profiles. Filter-based forwarding is utilized to direct specific traffic flows to a routing instance based on criteria set by a policy. Routing instances allow the traffic to be managed independently of the main routing table, and APBR profiles define how and when traffic should be forwarded. These elements ensure that APBR is flexible and tailored to the network’s requirements. Refer to Juniper's APBR Documentation for more details.

Advanced policy-based routing (APBR) in Juniper's SRX devices allows the selection of different paths for traffic based on policies, rather than relying purely on routing tables. To enable APBR, the following core components are required:

Filter-based Forwarding (Answer A): Filter-based forwarding (FBF) is a technique used to forward traffic based on policies rather than the default routing table. It is essential for enabling APBR, as it helps match traffic based on filters and directs it to specific routes.

Configuration Example:

bash

set firewall family inet filter FBF match-term source-address 192.168.1.0/24

set firewall family inet filter FBF then routing-instance custom-routing-instance

Routing Instance (Answer C): A routing instance is required to define the separate routing table used by APBR. You can create multiple routing instances and assign traffic to these instances based on policies. The traffic will then use the routes defined within the specific routing instance.

Configuration Example:

bash

set routing-instances custom-routing-instance instance-type forwarding

set routing-instances custom-routing-instance routing-options static route 0.0.0.0/0 next-hop 10.10.10.1

APBR Profile (Answer D): The APBR profile defines the rules and policies for advanced policy-based routing. It allows you to set up conditions such as traffic type, source/destination address, and port, and then assign actions such as redirecting traffic to specific routing instances.

Configuration Example:

bash

set security forwarding-options advanced-policy-based-routing profile apbr-profile match application http

set security forwarding-options advanced-policy-based-routing profile apbr-profile then routing-instance custom-routing-instance

Other Components:

Routing Options (Answer B) are not a core component of APBR, as routing options define the general behavior of the routing table and protocols. However, APBR works by overriding these default routing behaviors using policies.

Policies (Answer E) are crucial in many network configurations but are not a core component of enabling APBR. APBR specifically relies on profiles rather than standard security policies.

Juniper Security Reference:

Advanced Policy-Based Routing (APBR): Juniper’s APBR is a powerful tool that allows routing based on specific traffic characteristics rather than relying on static routing tables. APBR ensures that specific types of traffic can take alternate paths based on business or network needs. Reference: Juniper Networks APBR Documentation.

==========

Policy Enforcer receives these policies and translates them into device-specific commands. It then communicates with the third-party switches (using protocols like SNMP, RADIUS, or vendor-specific APIs) to enforce those commands, such as blocking the infected hosts' MAC addresses or port access.

Why Policy Enforcer is the Right Choice:

Centralized Enforcement: Policy Enforcer acts as the central point of enforcement for Security Director policies, ensuring consistent security across the network.

Multi-Vendor Support: It can interact with a wide range of network devices, including switches from different vendors.

Automation: Policy Enforcer automates the policy enforcement process, enabling rapid response to threats.

Referring to the exhibit for a multinode HA environment, we can conclude the following about the HA setup:

Two Services Redundancy Groups (Correct: Option A):The output shows the status of SRG 0 and SRG 1, confirming that there are two services redundancy groups in the HA configuration.

Node 1 Hosting SRG 1 (Correct: Option C):The exhibit indicates that Node 1 is currently active for SRG 1. According to the configuration, Node 1 will continue to host SRG 1 unless it becomes unavailable.

Session State Synchronization (Correct: Option D):In this HA setup, session state synchronization is enabled between the two nodes. This ensures that sessions remain active and seamless failover can occur if one node fails.

Juniper References:

Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and session synchronization.

==========
