In the exhibit, the output of the `show route protocol bgp` command is shown for the prefix `172.16.20.4/30`. Let's analyze the provided BGP routing table to determine which statements are correct.

1. **AS Path Analysis**:

- The AS path for the route `172.16.20.4/30` is shown as `2 I`.

- This indicates that the route was learned from AS 2 and it is an internal (iBGP) route within the same AS.

2. **Multiple Paths**:

- The route has two next-hop IP addresses: `10.0.18.2` via interface `ge-1/0/4.0` and `10.0.19.2` via interface `ge-1/0/5.0`.

- This indicates that BGP multipath is configured, which allows multiple equal-cost paths to be used for load balancing.

- BGP multipath must be explicitly configured to use multiple paths for the same prefix.

3. **Multihop vs. Multipath**:

- **Multihop Configuration**: This is typically used for establishing BGP sessions with peers that are not directly connected. It is not related to load balancing.

- **Multipath Configuration**: This is used to enable load balancing across multiple paths for the same prefix, which is the case here.

**Conclusion**:

Given the above analysis:

- **C. This route is learned from the same AS number**: Correct. The AS path `2 I` indicates the route was learned from the same AS number (AS 2).

- **D. The multipath configuration is used for load balancing**: Correct. The presence of multiple next-hops indicates that BGP multipath is configured for load balancing.

Thus, the correct answers are:

**C. This route is learned from the same AS number.**

**D. The multipath configuration is used for load balancing.**

**References**:

- Junos OS BGP Multipath Documentation: [Junos OS BGP Multipath](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/bgp-multipath.html)

- Junos OS BGP Configuration Guide: [Junos OS BGP Configuration](https://www.juniper.net/documentation/en_US/junos/topics/concept/bgp-routing-overview.html)

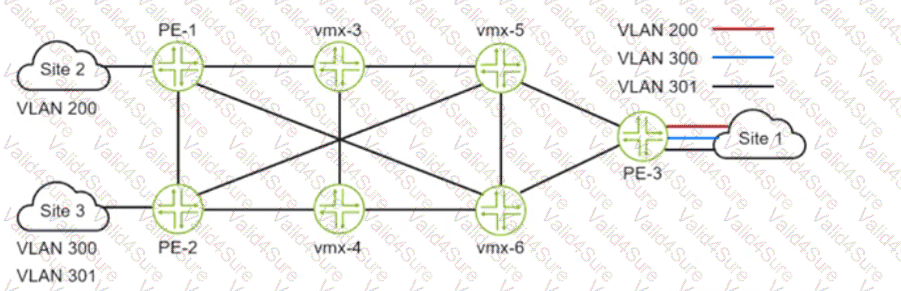

BGP signaled Layer 2 VPN is a type of VPN that uses BGP to distribute VPN labels and information for Layer 2 connectivity between sites over an MPLS network. BGP signaled Layer 2 VPN requires the support of the l2vpn NLRI on all core BGP devices1. The l2vpn NLRI is a new address family that carries Layer 2 VPN information such as the VPN identifier, the attachment circuit identifier, and the route distinguisher. The l2vpn NLRI is used for both auto-discovery and signaling of Layer 2 VPNs2. In this scenario, we are configuring a BGP signaled Layer 2 VPN across an MPLS enabled core network. Therefore, we need to ensure that all core BGP devices support the l2vpn NLRI.

References: 1: https://www.juniper.net/documentation/us/en/software/junos/vpn-l2/topics/concept/vpn-layer-2-overview.html  2: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_l2_vpns/configuration/xe-16/mp-l2-vpns-xe-16-book/vpls-bgp-signaling-l2vpn-inter-as-option-a.html

A sham link is a logical link between two PE routers that belong to the same OSPF area but are connected through an L3VPN. A sham link makes the PE routers appear as if they are directly connected, and prevents OSPF from preferring an intra-area back door link over the VPN backbone. A sham link creates an OSPF multihop neighborship between the PE routers using TCP port 646. The PEs exchange Type 1 OSPF LSAs instead of Type 3 OSPF LSAs for the L3VPN routes, which allows OSPF to use the correct metric for route selection1.

In the exhibit, the PE-to-CE protocol used is OSPF, and there is an OSPF neighborship between CE-1 and CE-2 within the same Area 0. Let's analyze the default OSPF routing behavior in this setup to determine the correct statement.

1. **OSPF Neighborship**:

- CE-1 and CE-2 have an OSPF neighborship directly within Area 0.

- OSPF prefers intra-area routes over inter-area and external routes.

2. **Default Routing Behavior**:

- Since CE-1 and CE-2 are directly connected through an OSPF link within the same area, OSPF will prefer this direct intra-area path over any other paths learned via the PE routers and the L3VPN.

- This is because intra-area routes have a lower metric compared to inter-area or external routes.

3. **Metric Considerations**:

- By default, OSPF will route traffic between Site-1 and Site-2 through the direct link between CE-1 and CE-2, unless the link's metric is artificially increased to make it less preferable.

- There is no need to adjust metrics for the CE-1 to PE-1 link to prefer the CE-1 to CE-2 path, as OSPF already prefers direct intra-area paths.

**Conclusion**:

Given the default behavior of OSPF and the topology shown in the exhibit, the correct statement is:

**B. Hosts at Site-1 will reach hosts at Site-2 through the CE-1 and CE-2 link by default.**

**References**:

- OSPF Design Guide: [Juniper Networks OSPF Design Guide](https://www.juniper.net/documentation/en_US/junos/topics/concept/ospf-design-overview.html)

- Juniper Networks Technical Documentation on OSPF: [Junos OS OSPF Configuration Guide](https://www.juniper.net/documentation/en_US/junos/topics/concept/ospf-routing-overview.html)

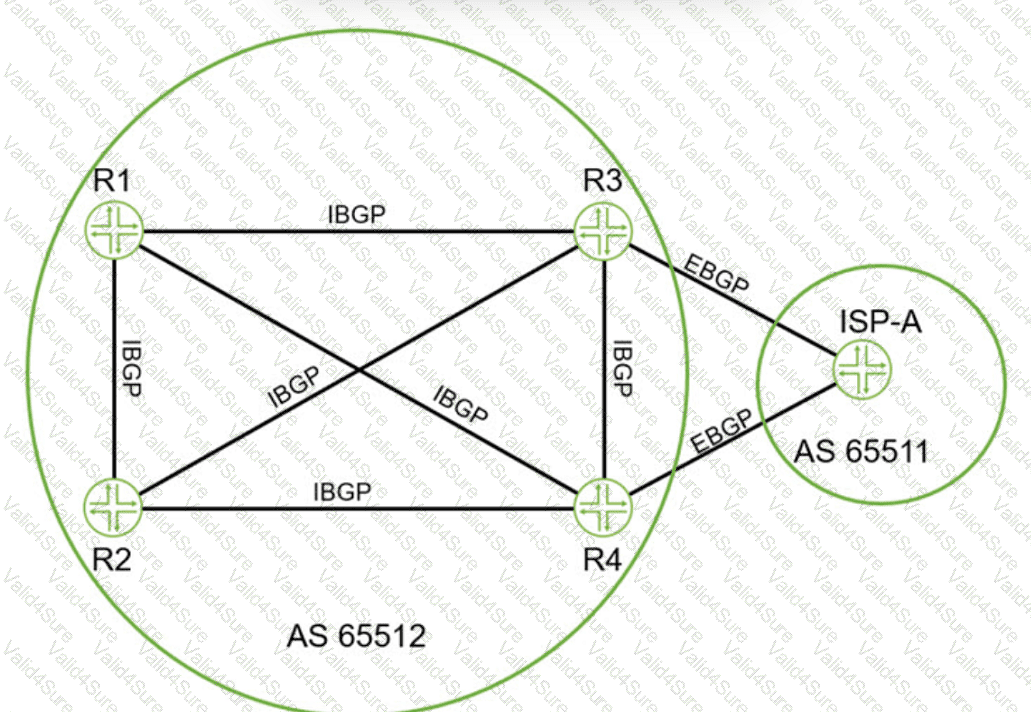

In the exhibit, we see an internal BGP (iBGP) setup within AS 65512, and an external BGP (eBGP) connection between R3 and ISP-A (AS 65511). The questions focus on the behavior of BGP routes advertised from R3 to R1 within the same AS.

1. **BGP Next-Hop Attribute (Option A and D)**:

- In iBGP, the next-hop attribute is **not** changed when a route is advertised to another iBGP peer. This means that when R3 advertises a route to R1, it retains the original next-hop value as learned from the eBGP peer (ISP-A).

- Therefore, Option D is correct: "By default, the next-hop value for these routes is not changed by R3 before being sent to R1."

2. **BGP Attributes (Option B and C)**:

- BGP attributes such as local preference, AS-path, and others are crucial for BGP route selection. The local preference attribute is used within an AS to indicate the preferred path for outbound traffic.

- When R3 advertises BGP routes to R1, it includes the local preference value assigned to those routes. This value is not removed and is propagated within the iBGP mesh.

- Therefore, Option C is correct: "By default, the BGP local-preference value that is assigned on R3 is advertised to R1."

**References**:

- Juniper Networks documentation on BGP behavior provides detailed insights into the propagation of BGP attributes within iBGP and eBGP contexts. Specifically, the Junos OS documentation covers the default behavior of next-hop and local preference attributes in BGP configurations.

- Junos OS BGP Configuration Guide: [Junos OS BGP Configuration Guide](https://www.juniper.net/documentation/en_US/junos/topics/concept/bgp-overview.html)

- For a deeper understanding of BGP attributes and their default behaviors, the "Juniper Networks Day One: Exploring BGP" book is an excellent resource.

To reduce the impact of suboptimal routing in OSPF and OSPFv3 after devices reboot, you can use the overload feature to prevent a router from being used as a transit router for a specified period of time. This allows the router to stabilize its routing table before forwarding traffic for other routers. To enable the overload feature, you need to do the following:

For OSPF, configure the overload statement under [edit protocols ospf] hierarchy level. You can also specify a timeout value in seconds to indicate how long the router should remain in overload state after it boots up. For example, set protocols ospf overload timeout 900 means that the router will be in overload state for 15 minutes after it boots up.

For OSPFv3, configure the overload statement under [edit protocols ospf3] hierarchy level. You can also specify a realm (ipv4-unicast or ipv6-unicast) and a timeout value in seconds to indicate how long the router should remain in overload state after it boots up for each realm. For example, set protocols ospf3 realm ipv4-unicast overload timeout 900 means that the router will be in overload state for 15 minutes after it boots up for IPv4 unicast routing.

The correct order of packet flow through configurable components in the Junos OS CoS features is as follows:

Behavior Aggregate Classifier: This component uses a single field in a packet header to classify traffic into different forwarding classes and loss priorities based on predefined or user-defined values.

Input Policer: This component applies rate-limiting and marking actions to incoming traffic based on the forwarding class and loss priority assigned by the classifier.

Multifield Classifier: This component uses multiple fields in a packet header to classify traffic into different forwarding classes and loss priorities based on user-defined values and filters.

Forwarding Policy Options: This component applies actions such as load balancing, filtering, or routing to traffic based on the forwarding class and loss priority assigned by the classifier.

Fabric Scheduler: This component schedules traffic across the switch fabric based on the forwarding class and loss priority assigned by the classifier.

Output Policer: This component applies rate-limiting and marking actions to outgoing traffic based on the forwarding class and loss priority assigned by the classifier.

Scheduler/Shaper/RED: This component schedules, shapes, and drops traffic at the egress interface based on the forwarding class and loss priority assigned by the classifier.

Rewrite Marker: This component rewrites the code-point bits of packets leaving an interface based on the forwarding class and loss priority assigned by the classifier.
