MCPA-Level-1 Exam Dumps - MuleSoft Certified Platform Architect - Level 1

Explanation

Correct Answer: When server-side load-balanced TLS mutual authentication is required between API implementations and API clients

*****************************************

Fact/ Memory Tip: Although there are many benefits of CloudHub Dedicated Load balancer, TWO important things that should come to ones mind for considering it are:

>> Having URL endpoints with Custom DNS names on CloudHub deployed apps

>> Configuring custom certificates for both HTTPS and Two-way (Mutual) authentication.

Coming to the options provided for this question:

>> We CANNOT use DLB to perform cross-region load balancing between separate deployments of the same Mule application.

>> We can have mapping rules to have more than one DLB URL pointing to same Mule app. But vicevera (More than one Mule app having same DLB URL) is NOT POSSIBLE

>> It is true that DLB helps to setup custom DNS names for Cloudhub deployed Mule apps but NOT true for apps deployed to Customer-hosted Mule Runtimes.

>> It is true to that we can load balance API invocations across multiple CloudHub workers using DLB but it is NOT A MUST. We can achieve the same (load balancing) using SLB (Shared Load Balancer) too. We DO NOT necessarily require DLB for achieve it.

So the only right option that fits the scenario and requires us to use DLB is when TLS mutual authentication is required between API implementations and API clients.

Explanation

Correct Answer: Create separate Anypoint VPCs for non-production and production environments, then configure connections to the backend systems in the corresponding customer-hosted environments.

*****************************************

>> Creating different Business Groups does NOT make any difference w.r.t accessing the non-prod and prod customer-hosted environments. Still they will be accessing from both Business Groups unless process network restrictions are put in place.

>> We need to modify or couple the Mule Application Implementations with the environment. In fact, we should never implements application coupled with environments by binding them in the properties. Only basic things like endpoint URL etc should be bundled in properties but not environment level access restrictions.

>> IP addresses on CloudHub are dynamic until unless a special static addresses are assigned. So it is not possible to setup firewall rules in customer-hosted infrastrcture. More over, even if static IP addresses are assigned, there could be 100s of applications running on cloudhub and setting up rules for all of them would be a hectic task, non-maintainable and definitely got a good practice.

>> The best practice recommended by Mulesoft (In fact any cloud provider), is to have your Anypoint VPCs seperated for Prod and Non-Prod and perform the VPC peering or VPN tunneling for these Anypoint VPCs to respective Prod and Non-Prod customer-hosted environment networks.

Explanation

Correct Answer: SLA-based rate limiting

*****************************************

>> Client Id enforement policy is a "Compliance" related NFR and does not help in maintaining the "Quality of Service (QoS)". It CANNOT and NOT meant for protecting the backend systems from scalability challenges.

>> IP Whitelisting and OAuth 2.0 token enforcement are "Security" related NFRs and again does not help in maintaining the "Quality of Service (QoS)". They CANNOT and are NOT meant for protecting the backend systems from scalability challenges.

Rate Limiting, Rate Limiting-SLA, Throttling, Spike Control are the policies that are "Quality of Service (QOS)" related NFRs and are meant to help in protecting the backend systems from getting overloaded.

https://dzone.com/articles/how-to-secure-apis

Explanation

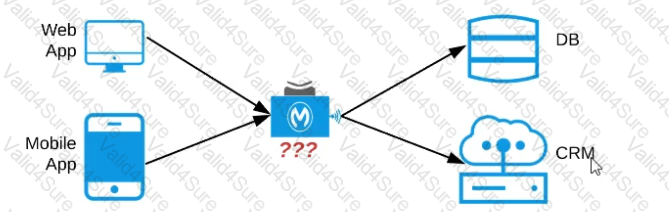

Correct Answer: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

*****************************************

As per MuleSoft's API-led connectivity:

>> Experience APIs should be built as per each consumer needs and their experience.

>> Process APIs should contain all the orchestration logic to achieve the business functionality.

>> System APIs should be built for each backend system to unlock their data.

Explanation

Correct Answer: Traffic between Mule applications deployed to an Anypoint VPC and on-premises systems can stay within a private network

*****************************************

>> The private IP address range of an Anypoint VPC is NOT automatically chosen by CloudHub. It is chosen by us at the time of creating VPC using thr CIDR blocks.

CIDR Block: The size of the Anypoint VPC in Classless Inter-Domain Routing (CIDR) notation.

For example, if you set it to 10.111.0.0/24, the Anypoint VPC is granted 256 IP addresses from 10.111.0.0 to 10.111.0.255.

Ideally, the CIDR Blocks you choose for the Anypoint VPC come from a private IP space, and should not overlap with any other Anypoint VPC’s CIDR Blocks, or any CIDR Blocks in use in your corporate network.

that each CloudHub environment requires a separate Anypoint VPC. Once an Anypoint VPC is created, we can choose a same VPC by multiple environments. However, it is generally a best and recommended practice to always have seperate Anypoint VPCs for Non-Prod and Prod environments.

>> We use Anypoint VPN to link the underlying AWS VPC to an on-premises (non AWS) private network. NOT VPC Peering.

Explanation

Correct Answer: An SLA for the upstream API CANNOT be provided.

*****************************************

>> First thing first, the default HTTP response timeout for HTTP connector is 10000 ms (10 seconds). NOT 500 ms.

>> Mule runtime does NOT apply any such "load-dependent" timeouts. There is no such behavior currently in Mule.

>> As there is default 10000 ms time out for HTTP connector, we CANNOT always guarantee that the invocation of the downstream API will run to completion without timing out due to its unreliable SLA times. If the response time crosses 10 seconds then the request may time out.

The main impact due to this is that a proper SLA for the upstream API CANNOT be provided.

Explanation

Correct Answer: When development is already organized into several independent initiatives or groups

*****************************************

>> It would require lot of process effort in an organization to have a single C4E team coordinating with multiple already organized development teams which are into several independent initiatives. A single C4E works well with different teams having at least a common initiative. So, in this scenario, federated C4E works well instead of centralized C4E.

Explanation

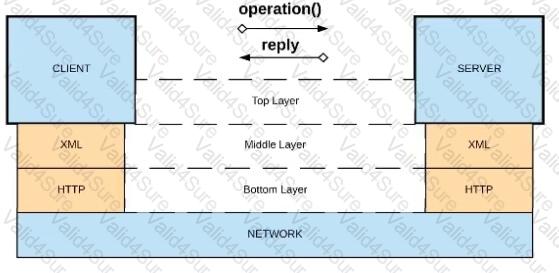

Correct Answer: XML over HTTP

*****************************************

>> API-led connectivity and Application Networks urge to have the APIs on HTTP based protocols for building most effective APIs and networks on top of them.

>> The HTTP based APIs allow the platform to apply various varities of policies to address many NFRs

>> The HTTP based APIs also allow to implement many standard and effective implementation patterns that adhere to HTTP based w3c rules.
