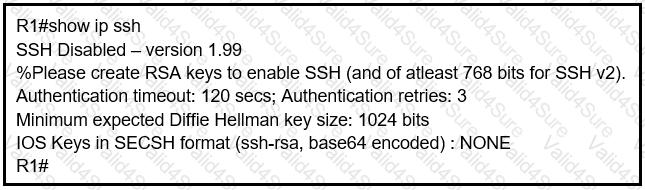

Follow these guidelines when configuring the switch as an SSH server or SSH client:

+ An RSA key pair generated by a SSHv1 server can be used by an SSHv2 server, and the reverse.+ If the SSH server is running on a stack master and the stack master fails, the new stack master uses the RSA key pair generated by the previous stack master

+ If you get CLI error messages after entering the crypto key generate rsa global configuration command, an RSA key pair has not been generated. Reconfigure thehostname and domain, and then enter the crypto key generate rsa command.+ When generating the RSA key pair, the message No host name specified might appear. If it does, you must configure a hostname by using the hostname globalconfiguration command.+ When generating the RSA key pair, the message No domain specified might appear. If it does, you must configure an IP domain name by using the ip domain-nameglobal configuration command.+ When configuring the local authentication and authorization authentication method, make sure that AAA is disabled on the console.

Let’s see how the “logging synchronous” command affect the typing command:

Without this command, a message may pop up and you may not know what you typed if that

message is too long. When trying to erase (backspace) your command, you realize you are

erasing the message instead.

With this command enabled, when a message pops up you will be put to a new line with your

typing command which is very

1. R1 received DHCP packet and its interface was configured with the DHCP helper address. But we are not sure if R1 forward DHCP packet to R2 or not. 2. If we connect PC directly to R2 then this problem will not appear -> DHCP Server function was configured on R2.

From these facts, the most likely problem is related to Option 82. Maybe R2 ignored DHCP request packets because it was receiving these packets with the giant field set to 0.0.0.0.

By default Cisco IOS devices reject packets with zero “giaddr” and by default Cisco Catalyst switches use “giaddr” of zero when configured for DHCP snooping! Reference: https://blog.ine.com/2009/07/22/understanding-dhcp-option-82

If we can run the “debug ip dhcp server packet” on R2, we may see these messages:

*Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, input feature, MCI Check(64), rtype 0, forus FALSE, sendself FALSE, mtu 0, fw dchk FALSE *Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, rcvd 2 *Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, stop process pak for forus packet

*Feb 22 23:54:57.759: DHCPD: inconsistent relay information. *Feb 22 23:54:57.759: DHCPD: relay information option exists, but giaddr is zero

We are receiving the DHCP packet from R1, source 0.0.0.0, and destination 255.255.255.255 broadcast, but if you notice from the debug output, R2, our DHCP Server, is complaining that the relay information is inconsistent. Option 82, Information Option, is contained in the packet but the GIADDR is zero. The GIADDR stands for Gateway IP Address, which is the IP Address of the relaying agent. The Option 82, Information Option, would then contain the receiving port and hostname of the Relaying Agent by default.

R2 sees the Option 82 information, signalling that the DHCP packet might have been relayed, BUT there is no relaying IP Address. This is the behavior of DHCP Snooping when enabling it on a switch, and since the switchport does not contain an IP Address, since it’s Layer 2, no GIADDR will be added.

Instead, just the Option 82 Information is added and this is the problem we have, but there are options:

1. You could trust all on R2 the DHCP Server, which will cause the server to not be so suspicious: – ip dhcp relay information trust-all – ip dhcp relay information trusted 2. Disable the addition of Option 82 information on SW: – no ip dhcp snooping information option 3. Trust the port that is receiving the DHCP Discover: – ip dhcp snooping trust

Any of these options will fix our predicament.

In the debug output, we see that the Authorization (not Authentication) failed so we need to

correct the authorization. In order to enable authorization, we must use the global command

“aaa authorization console” first.

https://www.cisco.com/c/en/us/td/docs/iosxr/ncs5500/vpn/65x/b-l3vpn-cg-ncs5500-65x/b-l3vpn-cg-ncs5500-65x_chapter_010.html

The ingress PE router must be able to reach the egress PE router for a packet to be relayed to its destination.
