When designing anchor redundancy for guest clients with auto-anchor configured on a WLC running version 8.1 or above, setting up Guest Anchor Priority ensures that one anchor is treated as active while another acts as standby rather than load-balancing clients between anchors which is not desired in this case. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice)

 Changing the TPC Power Threshold to -65 dBm would generally result in a decrease in the transmit power of APs to maintain a smaller cell size. This helps in reducing interference and improving overall network performance. A lower threshold means the APs reduce their power to ensure the signal does not exceed -65 dBm, leading to decreased signal strength at the client side.

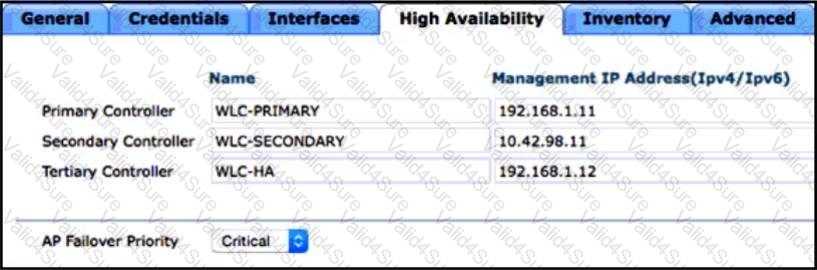

The issue where APs failed over to the tertiary controller instead of the secondary controller during a controller failure is likely due to the secondary controller being at capacity. When a controller reaches its maximum capacity, it cannot accept any additional APs, causing them to failover to the next available controller in the high availability configuration.

https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-4/configuration/guides/consolidated/b_cg74_CONSOLIDATED/b_cg74_CONSOLIDATED_chapter_010100001.html

 Mobility groups are created by configuring each Wireless LAN Controller (WLC) to use the same mobility domain name and defining each WLC as a peer in the static mobility members list of every other WLC in the group. This configuration allows WLCs to share information and support seamless roaming for wireless clients across different controllers within the same mobility group.

References := Chapter: Chapter 14 - Configuring Mobility Groups - Cisco

 To maintain the same VLAN and IP address for users roaming between APs attached to different WLCs, a mobility group should be created between WLC-A and WLC-B. This allows for inter-controller roaming, where client sessions are maintained across different controllers, ensuring that users can move across the campus without losing connectivity or changing IP addresses.

References:

• Cisco’s official training and certification resources.

 In a wireless network design where redundancy is required for guest access, setting different priorities for the anchor controllers ensures that one serves as the primary and the other as a backup. Anchor A, being the primary controller, should have a higher priority (lower numerical value), making it the preferred choice for guest WLAN connections. Anchor B, as the secondary or backup controller, should have a lower priority (higher numerical value) so that it is used only if Anchor A fails. This approach provides a failover mechanism for guest access in the DMZ.

Setting AP fallback to disabled will prevent the AP from moving back to its defined Cisco WLCs automatically after failing over to an undefined controller. This allows manual intervention to determine when the AP should revert to its primary controller.

The ‘tracert’ command is used to test connectivity between members of a mobility group by tracing the path that mobility control packets take over the network. This command helps identify any potential issues with the route that the packets are taking, which could affect the ability of guests to connect to the anchor controller in the DMZ. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice)

The human body can attenuate a wireless signal by approximately 6 dB. This is due to the water content in the human body, which absorbs and reflects radio frequency signals, leading to a reduction in signal strength as it passes through or around a person. This factor is important to consider in wireless network design, especially in environments with high user density.

 Devices that can tolerate at most 100 ms of delay when roaming are typically voice devices. Voice applications are sensitive to delays, and ensuring a maximum of 100 ms delay is a common design criterion for a wireless network supporting voice services. References: Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425)

Mobility domains and mobility groups are concepts used in wireless networking to manage client roaming and security contexts. When Wireless LAN Controllers (WLCs) are in the same mobility domain, they can communicate with each other, allowing clients to roam seamlessly between APs managed by different controllers. Mobility groups further refine this by constraining the distribution of a client’s security context, which includes authentication and encryption keys, and by managing AP failover between controllers. This ensures that a client can maintain a secure and stable connection as they move throughout the network.

References: Designing Cisco Enterprise Wireless Networks (ENWLSD) 300-425 Official Cert Guide

 Optimized roaming is a feature that helps manage the client’s roaming behavior by disassociating clients with a signal strength below a predefined threshold. This feature is designed to prevent clients from sticking to an AP with poor connectivity, which can lead to suboptimal performance. If the BSS Transition Management query is causing the client to roam and the disassociation imminent feature is not enabled, it indicates that optimized roaming is likely enabled, prompting the client to seek a better AP connection.

When designing a wireless network for diverse clients, it’s crucial to ensure that the network will be reliable for all users. Therefore, surveys should be conducted with the client that has the worst RF characteristics, as indicated in option D. This approach ensures that the network is designed to support even the weakest client, thereby providing a consistent experience for all users.

https://documentation.meraki.com/MR/WiFi_Basics_and_Best_Practices/Conducting_Site_Surveys_with_MR_Access_Points

In a medical treatment environment where both data and voice services are required, continuous coverage of -67 dBm from one access point is the minimum requirement. This ensures that there is sufficient signal strength for reliable voice communication, which is critical in medical settings. The -67 dBm threshold is commonly recommended for voice applications to ensure call quality and reliability.

So -67dBm covers both Data & Voice with a single AP

 The concern with existing gigabit uplinked switches providing 802.3at is the output power limitation. 802.11ac Wave 2 APs may require more power than what 802.3at can deliver, especially for features like Multi-User Multiple Input Multiple Output (MU-MIMO). References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

In Cisco wireless networks, access points can be configured with failover priorities ranging from 1 to 4, with 1 being the highest priority and 4 being the lowest. An access point with priority 1 is considered critical and will be given preferential treatment in failover situations, ensuring that it reconnects to a backup controller before access points with lower priorities

 Enabling AP fallback globally on the WLC allows access points to reconnect to their primary controller after they have connected to a secondary controller due to the primary being offline. This ensures that once the primary WLC is back online, APs will revert to it, maintaining the intended primary/secondary controller hierarchy.

To optimize roaming in a wireless network with multiple controllers, it is essential to use the same WLAN name (SSID) across all controllers. This allows clients to roam seamlessly between access points managed by different controllers without having to re-authenticate or experience disconnections1.

The data path issue between the Cisco Catalyst 9800-CL and AireOS 5520, despite an active control path, is likely due to encrypted mobility being enabled on the AireOS 5520. Encrypted mobility requires both peers to have a matching configuration for encryption, which includes proper certificates and shared secrets. If there’s a mismatch, the control path may be established, but the data path can fail due to the inability to establish an encrypted tunnel.

Guest anchoring requires mobility tunnels to be established between the foreign and anchor WLCs. For these tunnels to function, the firewall must allow specific ports for communication. UDP port 16666 is the port used for mobility traffic in Cisco wireless networks, and if it is not allowed through the firewall, MPING and mobility tunnels will fail. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice

 To optimize RF performance across different buildings and user densities: C. Configure AP groups for each area type - This allows for customized settings for APs serving different areas. D. Configure RF profiles for each area type - RF profiles enable the customization of RF parameters to suit the specific needs of each building or area type.

References: The official Cisco ENWLSD 300-425 certification guide will provide more information on RF optimization strategies.

https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-10/config-guide/b_cg810/configuring_ap_groups.html

A centralized wireless architecture is suitable for a college with multiple buildings. It allows for centralized management of WLCs and supports seamless roaming for wireless clients across different APs and controllers.

https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Mobility/emob41dg/emob41dg-wrapper/ch2_Arch.html

For a cost-effective high availability deployment in a campus enterprise wireless network with three controllers, the N+1 architecture with Stateful Switch Over (SSO) is recommended. This architecture provides redundancy and allows for seamless failover without service interruption, ensuring that the network remains highly available without the need for a one-to-one controller redundancy, which would be less cost-effective

https://www.cisco.com/c/en/us/td/docs/wireless/technology/hi_avail/N1_High_Availability_Deployment_Guide/N1_HA_Overview.html?

In Cisco WLC release 8.9, the controller software can scale up to 20 WLCs and 3000 APs within a single RF group. This capability allows the Radio Resource Management (RRM) algorithms to function effectively across a larger network, optimizing the wireless experience by managing the RF environment and resources across multiple controllers and access points.

References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice.

Jitter is the variation in time between packets arriving, caused by network congestion, timing drift, or route changes. In a Wi-Fi network designed to support video over Wi-Fi, if video multicast traffic is unreliable despite good coverage, jitter is a key performance metric to investigate. High jitter can cause the video to play erratically, freeze, or have sync issues between video and audio streams

AP Fallback is a feature that allows APs to rejoin their primary controller after they have connected to a secondary controller due to a failure. By enabling AP Fallback on the primary controller, the APs will automatically rejoin it when it becomes available again after a power interruption. This ensures that APs return to their designated primary controller for normal operations.

The exhibit refers to the Cisco Prime Infrastructure’s planning mode feature, which is a tool used for designing and planning wireless networks. The planning mode allows network administrators to input floor plans and simulate access point placement for optimal coverage. It does not require a special license; it is part of the Cisco Prime Infrastructure’s base functionalities. Planning mode does not necessarily present the recommended number of APs; instead, it allows users to manually place potential APs on a map to predict coverage areas. While synchronization with controllers may enhance functionality, it is not strictly necessary for planning mode to operate.

References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice)

The ‘eping’ command is used on Cisco Wireless LAN Controllers to verify that the redundancy peer in a Stateful Switchover (SSO) pair of controllers is up and connected. This command sends ECHO packets to the peer controller to ensure connectivity.

A diagram of a diagram Description automatically generated with medium confidence

When Client A roams from AP1 on WLC1 to AP2 on WLC2 across different subnets, this is considered a Layer 3 roam. Unlike Layer 2 roaming where the client’s database entry moves with them, in Layer 3 roaming, the client’s database entry is copied to the new controller (WLC2). This ensures continuity of service as Client A transitions between access points managed by different wireless LAN controllers. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice)

 Interface groups allow for flexible WLAN to VLAN mappings by grouping multiple interfaces into a single entity. This enables a single WLAN to be mapped to multiple VLANs, providing scalability and flexibility in network design. AP groups are used to manage the configuration of multiple APs collectively, allowing for consistent WLAN to VLAN mappings across different APs in separate facilities.

To reduce full authentication requests and optimize roaming, enabling Cisco Centralized Key Management (CCKM) on the voice SSID is effective. CCKM allows for fast re-authentication during roaming, which is beneficial for voice applications. Adding APs to a FlexConnect group helps manage APs in remote branches more efficiently.

To minimize channel utilization and interference with existing tenant networks, it’s best to use the UNII-1 channels, which are typically less congested, and stick to 20-MHz channels to provide more non-overlapping channels and reduce co-channel interference.

The data path being down while the control path is up indicates an issue with the data plane security configuration. The data-dtls setting on the AireOS 5520 WLC is responsible for enabling Datagram Transport Layer Security (DTLS) for the data plane, which encrypts the data traffic between the controllers. If this setting is disabled, the data path cannot be established securely, leading to the observed issue. Therefore, enabling data-dtls on the AireOS 5520 WLC is necessary to resolve the data path downtime.

In a warehouse setting, the height at which access points are installed can significantly impact the wireless signal. If the access points are placed too high, the signal may not adequately reach the users. Additionally, absorption by materials commonly found in warehouses, such as metal racks and goods, can weaken the wireless signal, negatively affecting the users.

https://www.cisco.com/c/en/us/products/collateral/wireless/aironet-1250-series/design_guide_c07-693245.html#_Toc309331086

To address the sticky client problem, setting an RSSI (Received Signal Strength Indicator) threshold can help. This configuration will prompt clients to roam to a better AP when their signal strength falls below the set threshold, thus enhancing the roaming experience and ensuring clients are connected to the AP with the strongest signal available.

 The Cisco Aironet 3800 Series APs support mGig, which allows for higher throughput over existing cabling. However, the maximum cable length that supports 5G operation is limited by the quality of the cable and signal attenuation. Category 5e cabling can support 5G operation up to a length of 130 meters, which is within the acceptable range for maintaining the required signal integrity for 5G speeds.

 The connectivity of 802.11a, which operates in the 5 GHz band, is reduced in X-ray rooms primarily due to the increased signal attenuation caused by the lead and other dense materials used in the construction of these rooms to shield against X-ray radiation. These materials effectively block or weaken the radio signals used for wireless communication

portable X-ray machines, sending high-resolution images, sometimes in real time, echography machines, and electrocardiography [ECG] machines). These devices may also use the same spectrum as Wi-Fi but with other protocols and, therefore, become sources of interference for your system.

In a Cisco wireless network, when designing for client roaming between access points (APs) that are connected to different controllers, especially in a global enterprise with multiple data centers, it is essential to ensure seamless client mobility. Mobility lists are used in such scenarios to define which controllers are allowed to participate in client roaming. This feature allows the APs connected to controllers within one group (e.g., Group ABC) to recognize and facilitate roaming clients from another group (e.g., Group XYZ). The mobility list is configured on each controller and includes the IP addresses of other controllers that should be considered part of the same mobility domain. When a client roams from an AP on one controller to an AP on another controller, if both controllers are in each other’s mobility list, they will establish a mobility tunnel through which they exchange the client’s context and security credentials. This ensures that the client can roam without re-authentication and maintains session continuity.

References:

• CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice Test.
• Designing Cisco Enterprise Wireless Networks (ENWLSD) course and training videos available on Cisco Learning Network and Cisco official website.

A Patch antenna should be used to provide wireless coverage on the perimeter of a building while minimizing signal leakage. Patch antennas have a directional radiation pattern that can be focused along the perimeter.

https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/industrial-routers-and-industrial-wireless-antenna-guide/ANT-MP-INT-OUT-M.html

 In environments with high client density, deploying APs for 5 GHz coverage is recommended due to the larger number of non-overlapping channels available, which can support higher data rates and client capacity. Disabling the 2.4 GHz radios on some APs can reduce interference and improve overall network performance.

https://www.cisco.com/c/en/us/td/docs/wireless/controller/technotes/86/b_Cisco_Wireless_LAN_Controller_Configuration_Best_Practices.html

When a client roams between two access points (APs) that are registered to different controllers with interfaces in the same client subnet, the controllers will exchange mobility control messages over UDP port 16666. This is in accordance with the Designing Cisco Enterprise Wireless Networks (ENWLSD) guidelines. The purpose of these messages is to ensure seamless roaming, where the client’s session and authentication state are transferred from one controller to another without requiring re-authentication or re-association by the client. The mobility control messages facilitate the coordinated transfer of the client database entry from the original controller to the new one, maintaining a consistent experience for the user.

 The decision to avoid installing APs directly in offices is likely due to transmit power considerations. Placing APs within offices could lead to excessive coverage for small areas, causing interference with other APs and reducing overall network performance. By placing them in common areas like corridors, engineers can ensure more uniform coverage across larger spaces while managing transmit power more effectively for optimal performance.

References:

• CCNP Enterprise Wireless Design ENWLSD 300-425 Official Cert Guide

https://www.cisco.com/en/US/docs/solutions/Enterprise/Mobility/emob30dg/RFDesign.html#wp1000551

In a global mesh deployment, using redundant controllers in the least restrictive regulatory domain ensures the highest number of channels available for backhaul. This design accommodates the varying regulatory constraints of different regions by adhering to the domain with the most lenient channel availability.

Raising the minimum data rate to 24 Mbps will reduce the range at which devices can connect, thereby reducing channel overlap. Using directional antennas can also help limit the coverage area of some APs, which can further reduce channel overlap by focusing the signal in specific directions rather than in a broad coverage pattern. References: Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425)

The behavior of guest client sessions in the US being anchored to the WLCs in Europe despite the presence of a local anchor WLC can be explained by the failure and subsequent recovery of the US anchor WLC. During the failure, the guest sessions would have been transferred to the European WLCs. After recovery, if the priority settings were not correctly restored or if the system did not automatically revert back to the local anchor, the sessions would remain anchored to the European WLCs3.

References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice.

 When performing a site survey of a large outdoor area, a site survey tool with a GPS module is ideal. The GPS module allows for precise location tracking, which is essential for mapping signal coverage over a large area. This tool can help complete the survey efficiently by automatically recording the location of signal measurements

 A fully measured wireless survey requires tools that support the active functioning of the network and allow for physical access to install and measure equipment. A PoE (Power over Ethernet) battery is necessary to power the access point during the survey. The access point itself is essential for broadcasting the signal. A ladder is needed to reach high places for proper access point placement and to measure coverage areas effectively.

References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

https://www.cisco.com/c/en/us/td/docs/wireless/technology/mesh/81/design/guide/b_mesh_81/Site_Preparation_and_Planning.html

 In a scenario where a customer has multiple Wireless LAN Controllers (WLCs) running N+1 redundancy with Access Points (APs) equally distributed, the critical APs must have priority in case of a WLC failure. If critical APs remain unregistered during a WLC failure, it indicates that the AP failover priority is not enabled globally on the backup WLC. Enabling AP failover priority ensures that critical APs are given precedence over other APs, allowing them to register with the backup WLC first.

 LAG-based redundancy is chosen for its ability to provide continuous connectivity as long as one port in the LAG is operational (B), utilize the full bandwidth capacity of all the links in the LAG (E), and allow for the grouping of ports into multiple LAGs for increased redundancy and bandwidth (F). References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

In a high availability setup with Cisco 5508 Wireless LAN Controllers, the standby controller can be accessed via the console connection and the service port interface. The console provides direct access, while the service port interface allows for network-based access to the standby unit for management purposes.

The Cisco 5520 WLC supports Link Aggregation (LAG), which allows multiple physical interfaces to be treated as a single logical channel. By connecting a second 10-GB interface and implementing LAG, the customer can increase the throughput capacity and provide redundancy without the need for a second controller. This approach also simplifies network design and management by reducing the number of IP addresses needed for the controllers and APs. References: Designing Cisco Enterprise Wireless Networks (ENWLSD) training and certification materials.

 Adjusting the RX-SOP (Receiver Start of Packet Detection Threshold) can help to control cell size by making APs less sensitive to low-level signals, thus requiring clients to be closer to the AP to connect, which can ensure they connect to the nearest AP with the highest data rates.

By segmenting the VLAN into smaller subnets and assigning them by location, an engineer can use interface groups. This allows for efficient management of network resources and ensures that clients are connected to the closest subnet, reducing latency and improving performance.
