300-815 Exam Dumps - Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)

Go to page:
Question # 25

Refer to the exhibit.

ILS has been configured between two hubs using this configuration. The hubs appear to register successfully, but ILS is not functioning as expected. Which configuration step is missing?

A.

A password has never been set for ILS.

B.

Use TLS Certificates must be selected.

C.

Trust certificates for ILS have not been installed on the clusters

D.

The Cluster IDs have not been set to unique values

Full Access
Question # 26

Refer to the exhibit.

A collaboration engineer investigates an issue where the user calls that match the local Jabber domain are routed back to Cisco UCM. Which action resolves this problem?

A.

Check the check box to block the pattern for the local domain.

B.

Create another route SIP pattern for the local domain with the block pattern selected.

C.

Create a translation pattern to block calls to the local domain.

D.

Create a transformation pattern to block calls to the local domain.

Full Access
Question # 27

Which configuration must an administrator perform to display Translation Pattern operations in Cisco Unified Communications Manager SDL traces?

A.

Enable the Detailed Call Analysis option under Enterprise Parameters for Unified CM.

B.

Set up the Digit Analysis Complexity in Service Parameters for Cisco Unified CM to TranslationAndAlternatePatternAnalysis.

C.

Check the Translation Patterns Analysis check box in Micro Traces on the Cisco Unified CM Serviceability page.

D.

By default, the Translation Patterns operations are printed in SDL traces, so no additional configuration is necessary.

Full Access
Question # 28

The administrator of ABC company is troubleshooting a one-way audio issue for a call that uses H.323 protocol (slow-start mode). The administrator requests that you provide the IP and port information of the Real- Time Transport Protocol traffic that had the one-way audio call.

You gather the H.225 and H.245 messages for one of the one-way audio calls. Where can you find the RTP IP and port information for both sides? (Note: This call flow has not invoked any media resources like MTP or transcoders).

A.

H.245 Terminal Capability Set

B.

H.245 Open Logical Channel

C.

H.225 Connect

D.

H.245 Open Logical Channel Ack

Full Access
Question # 29

A customer has multisite deployments with a globalized dial plan. The customer wants to route PSTN calls via the gateway assigned to each site. Which two actions will fulfill the requirement? (Choose two.)

A.

Create one route group for each site and one global route list for PSTN calls that point to the local route group.

B.

Create a route group which has all the gateways and associate it to the device pool of every site.

C.

Create one global route list for PSTN calls that points to one global PSTN route group.

D.

Create a hunt group and assign it to each side route pattern

E.

Assign one route group as a local route group in the device pool of the corresponding site.

Full Access
Question # 30

Refer to the exhibit.

An administrator is troubleshooting a situation where a call placed from a phone registered to Cisco Unified Communications Manager does not complete. The administrator wants to use the Dialed Number Analyzer on Cisco Unified CM to check which translation pattern the call is matching. However, when logging in to Cisco Unified Serviceability there is no option for Dialed Number Analyzer under the tool menu. Which two steps must be performed to resolve this issue? (Choose two.)

A.

Restart the subscriber

B.

Activate the Cisco Extended Functions service.

C.

Activate the Cisco CallManager service.

D.

Activate the Cisco Dialed Number Analyzer service.

E.

Activate the Cisco Dialed Number Analyzer Server service.

Full Access
Question # 31

Refer to the exhibit.

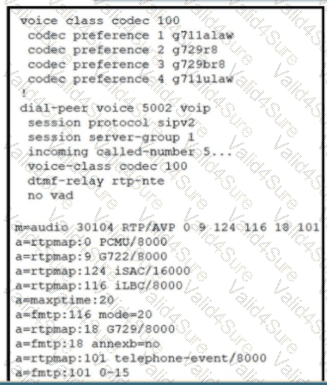

The Cisco Unified Border Element receives an INVITE matching inbound dial peer 5002. The outbound dial peer supports only iLBC. and a Local Transcoding Interface is allocated. Based on the configuration and SDP from the INVITE message, which codec is chosen by Cisco Unified Border Element for the inbound call leg?

A.

G.711 A-law

B.

G.711 U-law

C.

G.729r8

D.

G.729br8

Full Access
Question # 32

Refer to the exhibit.

An administrator has configured a SIP trunk between two Cisco UCM clusters. For calls that should use the trunk, the calls fail with a fast busy. The administrator checks the Cisco CallManager SDL traces and found that the cluster to which the calling device is registered never sends an INVITE to the destination cluster. The administrator also verifies that all nodes from both clusters are powered on, and the CallManager service is running. How is this issue resolved?

A.

The administrator needs to disable OPTIONS pings on the SIP trunks for both clusters.

B.

The administrator must allow connectivity so that TCP connections do not fail between the nodes.

C.

The administrator needs to enable OPTIONS pings on the SIP trunks for both clusters.

D.

The administrator must associate the route pattern with a calling search space the device can dial.

Full Access
