350-601 Exam Dumps - Implementing Cisco Data Center Core Technologies (350-601 DCCOR)

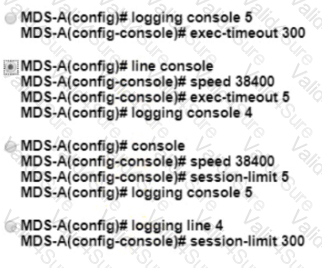

Option A is the correct configuration to meet the requirements of configuring system logging on the MDS switch. The commands set the console logging level to 5, which corresponds to the severity level of “warning” and above, and set the exec-timeout to 300 seconds, which means that the users will be logged out of the console after 5 minutes of inactivity. The other options are either incorrect or incomplete for the task. References:

• Cisco MDS 9000 Family NX-OS System Management Configuration Guide, Release 8.x - Configuring System Message Logging [Cisco MDS 9000 NX-OS and SAN-OS Software], Configuring System Message Logging, Configuring Console Logging
• Cisco MDS 9000 Family NX-OS System Management Configuration Guide, Release 8.x - Configuring the Command-Line Interface [Cisco MDS 9000 NX-OS and SAN-OS Software], Configuring the Command-Line Interface, Configuring the CLI Timeout Value

Ansible is known for its agentless architecture, which means it does not require a software agent to be installed on the target nodes it manages. This contrasts with tools like Puppet and Chef, which typically require an agent to be installed on each node. Ansible uses SSH or WinRM to communicate with the nodes, making it simpler and more secure as it reduces the attack surface and the overhead of managing agents.

References: Comparison of DevOps tools including Ansible, Puppet, and Chef, as well as Ansible’s official documentation.

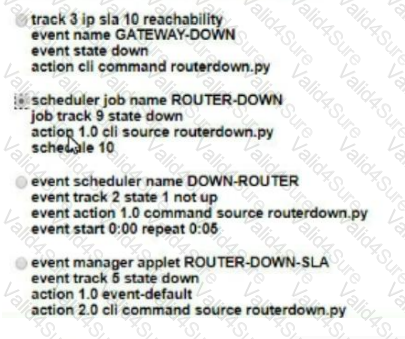

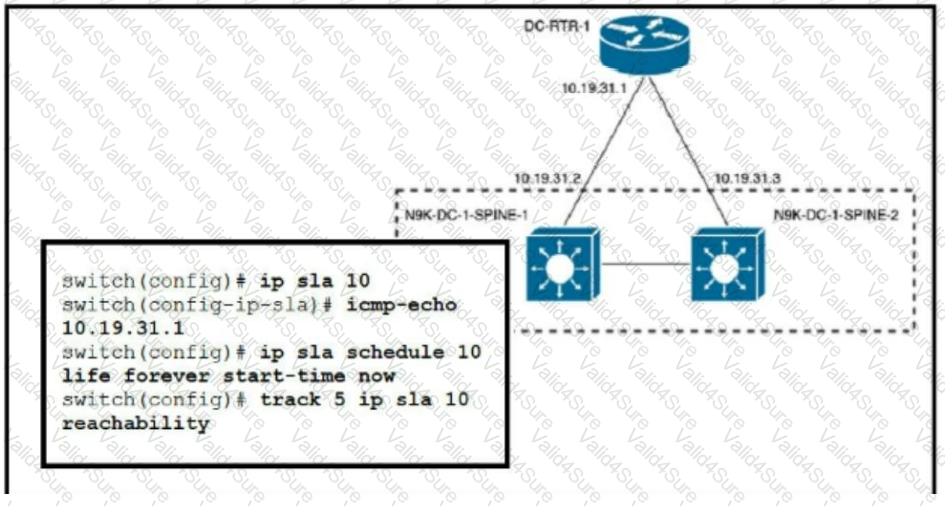

The configuration set in Option C is designed to invoke a Python script when the router becomes unreachable. It uses an event scheduler to track the state of the router and, if it is not up, it triggers the Python script “routerdown.py” at specified intervals. This setup ensures that the operations team is alerted promptly when the router DC-RTR-1 becomes unreachable, allowing for quick response and troubleshooting.

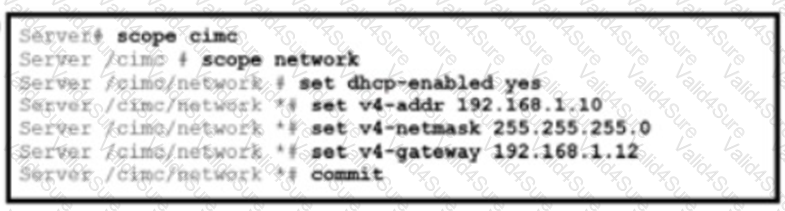

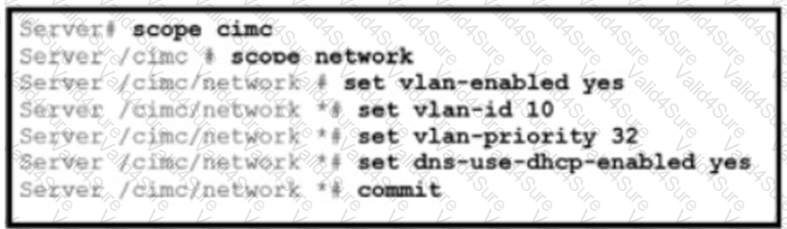

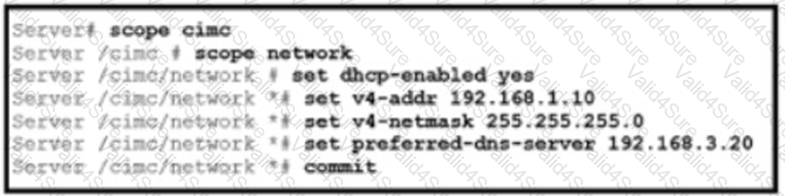

To set access to Cisco IMC (Integrated Management Controller) and allow logging onto the https://datacenter.local  web page, the correct set of commands is found in option C. These commands will configure the network settings on the Cisco UCS C240 Series Server to enable web access to the Cisco IMC interface. The configuration typically involves setting the correct IP address, gateway, and other network parameters that align with the data center’s network design.

References :=

• Cisco UCS C-Series Servers Integrated Management Controller CLI Configuration Guide
• Cisco Data Center Core Technologies (DCCOR) study materials

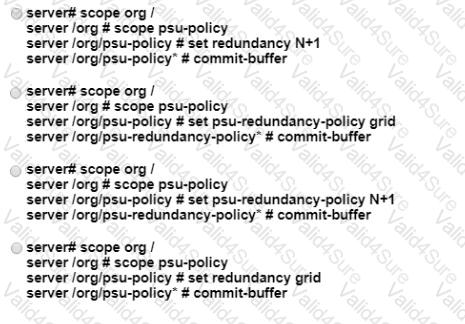

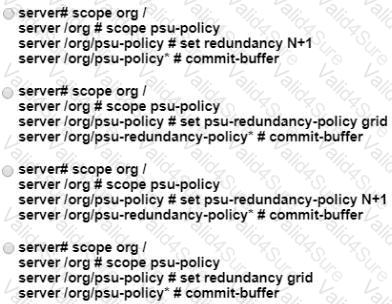

 Option C is the correct configuration to apply a power redundancy policy on a Cisco UCS C-Series Rack Server that supports two power sources. The power redundancy policy determines how the server uses the available power supplies to optimize power usage. The grid option means that the server uses power from both power supplies simultaneously. If one power supply fails, the server continues to operate with the remaining power supply. The other options are not suitable for this requirement. The n+1 option means that the server uses one fewer power supply than the number of power supplies that are installed. If a power supply fails, the server uses the extra power supply. The non-redundant option means that the server uses only one power supply, regardless of the number of power supplies that are installed. If the power supply fails, the server shuts down. The ps-redundant option means that the server uses power from the most efficient power supply. If the power supply fails, the server switches to another power supply. References:

• Cisco UCS C-Series Servers Integrated Management Controller GUI Configuration Guide, Release 4.0 - Configuring Server Power [Cisco Integrated Management Controller], Configuring Server Power, Configuring the Power Policy
• Cisco UCS C-Series Servers Integrated Management Controller GUI Configuration Guide, Release 4.0 - Configuring Server Power [Cisco Integrated Management Controller], Configuring Server Power, Power Redundancy Modes

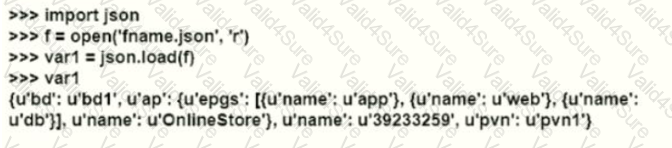

The Python code snippet provided imports the json module and loads a JSON file into a variable named var1. Since JSON files inherently represent object data as dictionaries in Python, the resulting data structure is a dictionary. This is evident from the output shown, which displays a dictionary with nested dictionaries and lists, containing keys like ‘bd’, ‘ap’, ‘name’, etc., and corresponding values.

References := The explanation is based on standard Python data structures and JSON file handling as described in Python documentation and typical Python programming resources. JSON objects are represented as dictionaries in Python, which is a fundamental concept in working with JSON data in the language.

A screenshot of a computer Description automatically generated

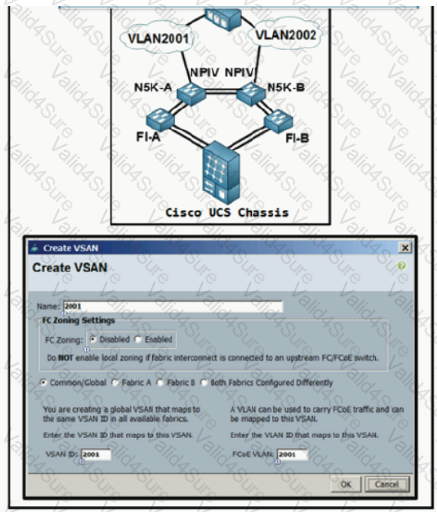

To create a VSAN on the network, the engineer needs to select Fabric A from the drop-down menu. This will allow the engineer to assign a VSAN ID and a name to the new VSAN, and to add members to the VSAN. The other options are not relevant for creating a VSAN. Fabric B is the other fabric interconnect, FC Zoning Enabled is a feature that allows traffic isolation within a VSAN, and Common/Global is a default VSAN that cannot be modified. References:

• Cisco UCS Manager GUI Configuration Guide, Release 4.0 - Configuring SAN Connectivity [Cisco UCS Manager], Configuring SAN Connectivity, Creating a VSAN
• Cisco UCS Manager GUI Configuration Guide, Release 4.0 - Configuring SAN Connectivity [Cisco UCS Manager], Configuring SAN Connectivity, Configuring FC Zoning
• Cisco UCS Manager GUI Configuration Guide, Release 4.0 - Configuring SAN Connectivity [Cisco UCS Manager], Configuring SAN Connectivity, Default VSANs
