Question # 33

Which of the following about an LSP protected with facility FRR is TRUE?

The LSP can use protection tunnels used by other LSPs.

The LSP can use facility and one-to-one FRR simultaneously.

The LSP is limited to link protection.

A detour protection tunnel is created for this LSP.

Full Access

Question # 34

A router has two admin groups defined (GREEN=1 and RED=3). An interface is associated to both admin groups. What value will be shown in the Admin Group sub-TLV for this interface?

0x4

0x5

0x10

0xa

Full Access

Question # 35

Which of the following about RSVP-TE LSP configuration in a Alcatel-Lucent 7750 SR is TRUE?

LSPs must always terminate on a system ID.

MPLS and RSVP must be enabled on all LSRs.

CSPF must be enabled.

Path definitions must include at least one hop entry.

Full Access

Question # 36

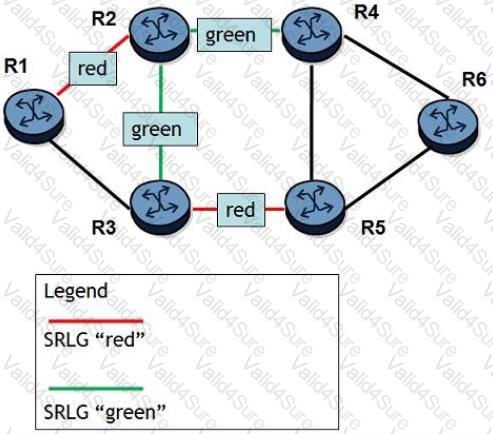

Click on the exhibit.

An LSP's primary path takes R1-R3-R5-R6. Its fully loose secondary path is configured for SRLG. All links are of equal cost. Which path will the secondary path take?

The secondary path will take R1-R3-R2-R4-R6.

The secondary path will take R1-R2-R4-R6.

The secondary path will take R1-R2-R3-R5-R6.

The secondary path will take R1-R3-R2-R4-R5-R6.

Full Access

Question # 37

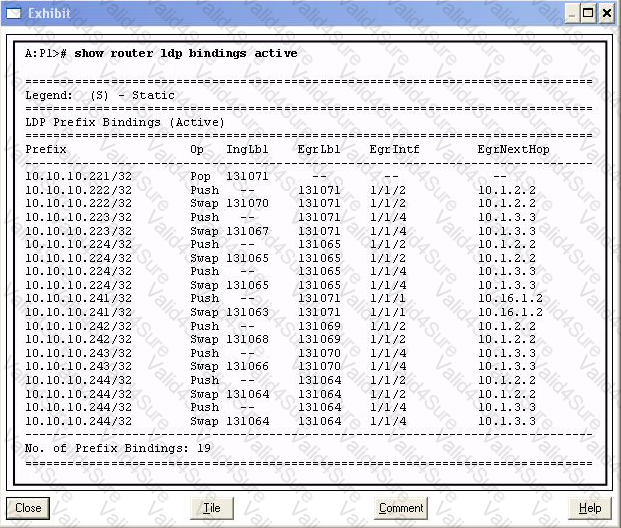

Click on the exhibit button below.
