Understanding EBGP in an IP Fabric:

EBGP (External Border Gateway Protocol) is commonly used in IP fabrics to establish peering between routers, such as leaf and spine nodes, without relying on an Interior Gateway Protocol (IGP) like OSPF or IS-IS.

IGP Requirement for EBGP:

Option B:EBGP peering does not require an IGP for adjacency establishment. This is because EBGP peers are typically directly connected, and BGP establishes its own sessions without needing an underlying IGP.

Leaf-to-Spine Peering:

Option C:In a typical IP fabric, each leaf node establishes an EBGP session with every spine node. This ensures full connectivity between leaves and spines, facilitating efficient routing and forwarding within the fabric.

Conclusion:

Option B:Correct—EBGP does not require an IGP for establishing peering sessions.

Option C:Correct—Each leaf node peers with every spine node, which is a standard practice in IP fabrics to ensure connectivity and redundancy.

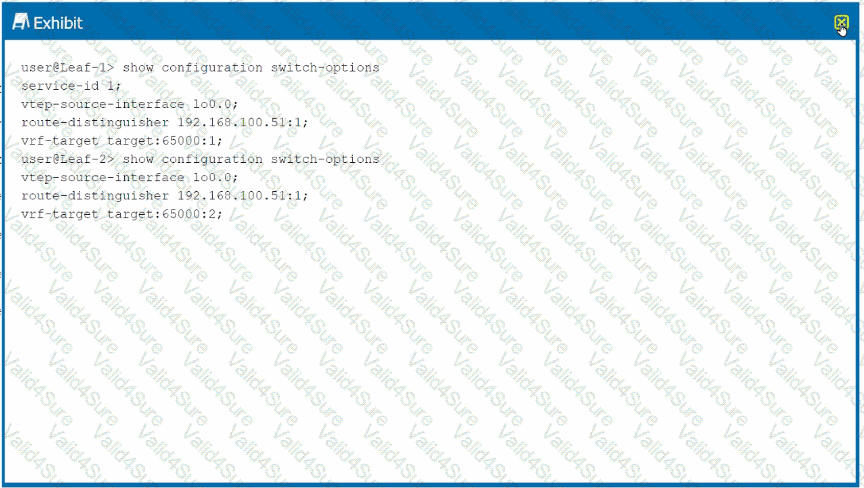

Review of the Exhibit:

The exhibit shows the switch configuration for Leaf-1 and Leaf-2. The configurations include route distinguishers, VRF targets, and service IDs, all of which are crucial for ensuring proper operation in an EVPN-VXLAN environment.

Service-ID Consistency:

The service ID must be consistent across all participating leaf devices in the same EVPN instance to ensure that they are part of the same VXLAN overlay network.

VRF Target Consistency:

The vrf-target parameter must also be consistent across devices to ensure that VRFs (Virtual Routing and Forwarding instances) are correctly imported and exported between leaf nodes.

Conclusion:

Option B:Correct—Setting the same service-id on Leaf-2 ensures that it is part of the same VXLAN overlay as Leaf-1.

Option D:Correct—The vrf-target on Leaf-2 should match Leaf-1 to ensure consistent routing policies and proper route exchange.

Understanding Bridged Overlay Architecture:

In a single-tenant data center using a bridged overlay architecture, virtual networks (VLANs) are typically isolated within the fabric, with traffic between these VLANs handled outside the fabric.

Communication Between Different Virtual Networks:

A. off-fabric using an external device:This is correct. In many bridged overlay architectures, communication between different virtual networks is handled off-fabric, often using an external router or firewall that connects the different VLANs. The fabric itself primarily provides Layer 2 connectivity within each VLAN, leaving inter-VLAN routing to be handled externally.

Data Center References:

This design is common in smaller or simpler data center environments where a single tenant does not require complex on-fabric routing and prefers to handle inter-VLAN routing through dedicated devices.

VXLAN Traffic Verification:

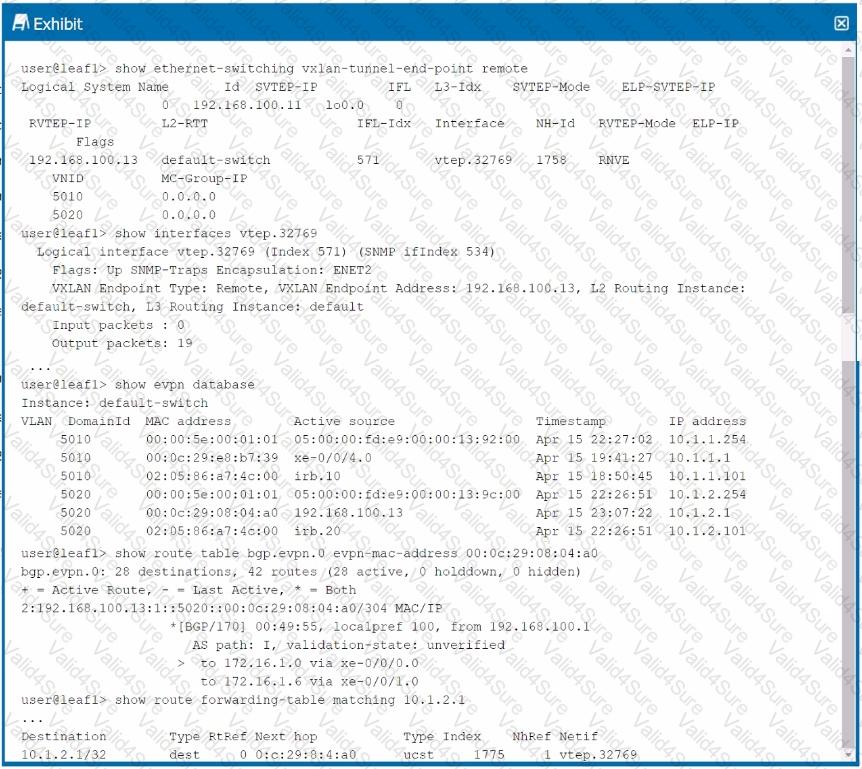

To ensure VXLAN traffic from the xe-0/0/12 interface is correctly encapsulated by the logical vtep.32770 and sent to a remote leaf device, it is essential to monitor the relevant interface statistics.

The command show interfaces terse vtep.32770 statistics provides a concise overview of the traffic statistics for the specific VTEP interface, which can help verify whether traffic is being correctly encapsulated and transmitted.

Explanation:

This command is particularly useful for quickly checking the traffic counters and identifying any potential issues with VXLAN encapsulation or transmission.

It allows you to confirm that traffic is flowing as expected, by checking the transmitted and received packet counters.

Data Center References:

Monitoring interface statistics is a crucial step in troubleshooting and validating network traffic, particularly in complex overlay environments like EVPN-VXLAN.

Telemetry Methods in Junos:

Telemetry is used to collect and report data from network devices. For high-frequency statistics reporting, such as every five seconds, you need a telemetry method that supports this level of granularity and real-time monitoring.

Junos Native Sensors:

Option C:Native Sensors in Junos provide detailed, high-frequency telemetry data, including TX and RX traffic statistics for interfaces. They are designed to offer real-time monitoring with customizable sampling intervals, making them ideal for the five-second reporting requirement.

Conclusion:

Option C:Correct—Native Sensors in Junos are capable of providing the required high-frequency telemetry data every five seconds.

Understanding the Configuration:

The exhibit shows configurations for two VRFs (Customer_A and Customer_B) with specific VLANs and VNIs assigned. Each VRF has interfaces (IRBs) associated with particular VLANs.

Communication Between VLANs and Routing Instances:

Option B:VLAN 400 (irb.400) is part of Customer_B, and there is no direct connection or routing between Customer_A and Customer_B in the configuration provided. Therefore, devices in irb.400 cannot communicate directly with devices in the Customer_A routing instance.

Option D:Since irb.400 (VLAN 400) and irb.800 (VLAN 800) are part of the same routing instance (Customer_B), they can communicate over the fabric using VXLAN encapsulation.

Conclusion:

Option B:Correct—There is no direct communication between devices in irb.400 (Customer_B) and routing instance Customer_A.

Option D:Correct—Devices in VLAN 400 and VLAN 800 can communicate within the Customer_B routing instance over the fabric.

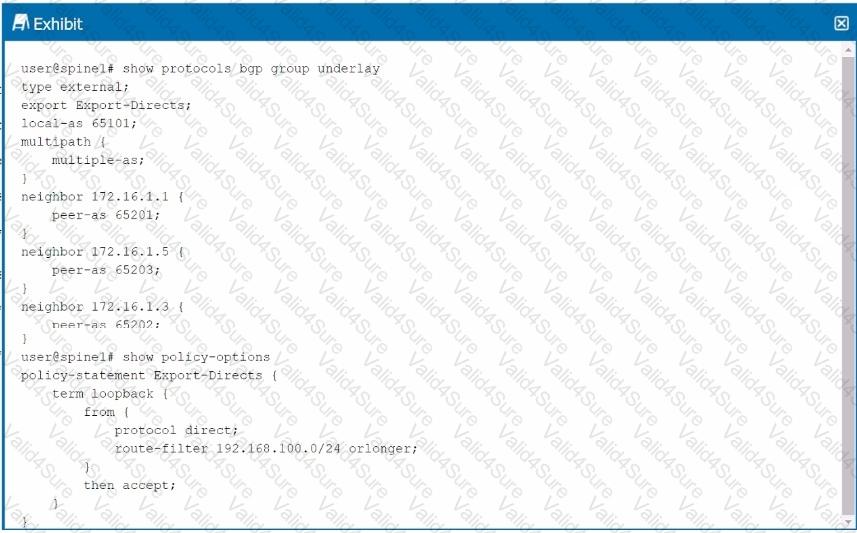

Understanding BGP Configuration in the Exhibit:

The exhibit shows a BGP configuration on spine1 with a group named underlay, configured to peer with directly connected interfaces of other devices in the network.

Multipath multiple-as:This statement allows the router to install multiple paths in the routing table for routes learned from different ASes, facilitating load balancing.

Key Statements:

A. The multihop statement is not required to establish the underlay BGP sessions:In this case, the BGP peers are directly connected (as indicated by their neighbor IP addresses), so the multihop statement is unnecessary. Multihop is typically used when BGP peers are not directly connected and packets need to traverse multiple hops.

D. Load balancing for the underlay is configured correctly:The multipath { multiple-as; } statement in the configuration enables load balancing across multiple paths from different autonomous systems, which is appropriate for underlay networks in data center fabrics.

Incorrect Statements:

C. The multihop statement is required to establish the underlay BGP sessions:This is incorrect because the peers are directly connected, making the multihop statement unnecessary.

B. Load balancing for the underlay is not configured correctly:This is incorrect because the configuration includes the necessary multipath settings for load balancing.

Data Center References:

BGP configurations in EVPN-VXLAN underlay networks are crucial for ensuring redundancy, load balancing, and efficient route propagation across the data center fabric.

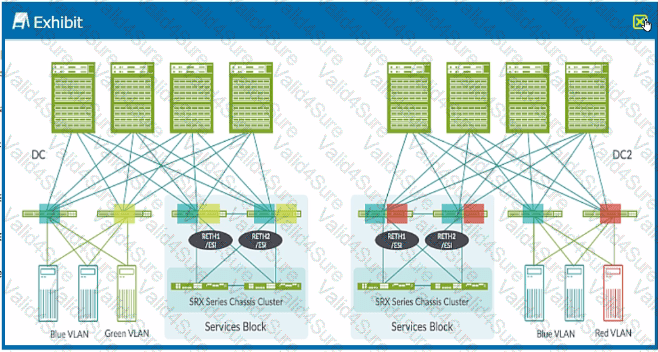

Understanding Seamless Stitching:

Seamless stitching is used in EVPN to interconnect two data centers, allowing for consistent Layer 2 and Layer 3 connectivity across them. This is often achieved by translating VNIs (Virtual Network Identifiers) between the data centers.

Translation-VNI:

Option B:The translation VNI must be different in each data center to ensure that traffic can be correctly routed and distinguished as it crosses between the data centers. This differentiation helps to maintain the integrity of the traffic flows and prevents any potential overlap or conflict in VNIs.

Ethernet Segment Identifier (ESI):

Option D:The ESI must match in both data centers to ensure that the same Ethernet segment (which could be multihomed) is recognized consistently across the data centers. Matching ESIs are crucial for maintaining a unified view of the Ethernet segment across the interconnected fabric.

Conclusion:

Option B:Correct—Translation VNIs must be unique to each data center for proper traffic distinction.

Option D:Correct—Matching ESIs are necessary to maintain consistent Ethernet segment identification across both data centers.
