Question # 25

Choose the correct answer

How is a testCase used to validate a requirement?

The testCase model element can be used in SystvIL but it only applies to software

Validation of a requirement can be indicated using a satisfiedBy relationship to a testCase

Only the verdict model element (which can be a property of a testCase) can have a verifies relationship to a requirement.

A requirement can have a vehfiedBy relationship to a testCase even if the test has not yet been conducted or even fully specified

testCase is part of the UML Testing Profile and cannot be used with SysML.

Full Access

Question # 26

Choose the correct answer.

A system engineer has created a SysML block structure for his system-of-interest. Two of the blocks (M and E) represent system-level abstractions of components that will be designed by a mechanical engineer and an electrical engineer m their respective computer-aided design (CAD) tools.

Given that the CAD models are wrapped as blocks B_mcad and B_ecad, what type of diagram should the system engineer use to quantitatively relate the properties of B_mcad and B_ecad to their system level abstractions M and E respectively?

an activity diagram

a parametric diagram

an internal block diagram

a block definition diagram

Full Access

Question # 27

Choose the correct answer.

Given the following bdd fragment and table showing messages sent between blocks:

Block C Is encapsulated; none of the other blocks are.

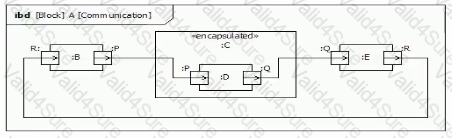

Which Ibd for block A has the correct assignment of flow ports and connectors? If two or more options are correct, select the one with the fewest ports.
