In UML, a Dependency is a relationship that signifies that one NamedElement, the client, depends on another NamedElement, the supplier, meaning that a change in the supplier could affect the client. If NamedElement A is the supplier and NamedElement B is the client in a Dependency relationship, and there is a Comment indicating that both participate in a transformation, the interpretation is that B (the client) depends on A (the supplier) for that transformation. The comment does not necessarily change the nature of the Dependency relationship; it simply adds additional information about the nature of their interaction. A transformation could mean that B transforms A's supplied element in some way, but in terms of UML Dependency relationships,it would still be interpreted as "A depends on B" or "B requires A for its transformation". This interpretation aligns with the UML 2.x Infrastructure and Superstructure specifications, which explain Dependencies and their meanings within the UML metamodel.

The diagram depictsElectronic Device Kindas a class that requires a set of Certifications (required : Certification[1..*]). This implies that any subclass ofElectronic Device Kindmust provide a set of required Certifications because the multiplicity[1..*]indicates that at least one Certification is mandatory for each instance ofElectronic Device Kindor its subclasses. Therefore, when a subclass is created, it inherits the requirement to specify what Certifications are needed. This is a standard UML generalization, where the subclass inherits the attributes and constraints of its superclass. This interpretation is consistent with the rules defined in the UML 2.x Superstructure Specification, which includes the semantics of class generalization and attribute inheritance.

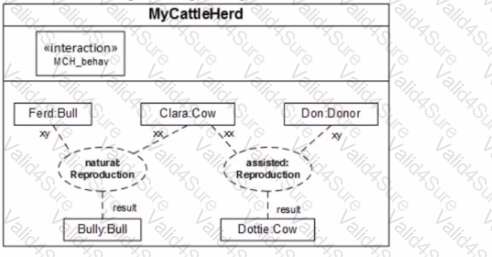

The question is about identifying the correct placeholders X and Y in a UML diagram fragment related to cattle reproduction behavior. The correct answer is option E, where X is “natural::Reproduction_behav” and Y is “assisted::Reproduction_behav”. In UML, the “::” notation is used to indicate a namespace or a package. In this context, it separates the types of reproduction behaviors (natural and assisted) from the behavior itself (Reproduction_behav). This naming convention aligns with UML naming standards for clarity and specificity.
