UiPath-ADPv1 Exam Dumps - UiPath (ADPv1) Automation Developer Professional Exam(2023.10)

The Set Transaction Status activity in UiPath Studio is used to set the status of an Orchestrator queue item to Failed or Successful. This activity is usually placed at the end of the Process Transaction state in the REFramework template, after the Try Catch block. The status of the queue item determines whether it will be retried or not.

To retry a queue item, the status needs to be set to Failed. This means that the transaction was not completed successfully, and it needs to be processed again. The number of retries for a queue item depends on the MaxRetryNumber parameter in the Config file of the REFramework. By default, it is set to 2, which means that each queue item can be retried twice before it is marked as permanently failed.

The other options are not valid statuses for the Set Transaction Status activity. Option A is incorrect, because Retried is not a status, but a property of a queue item that indicates whether it has been retried or not. Option C is incorrect, because Abandoned is a status that is automatically assigned by Orchestrator to a queue item that has been in progress for more than 24 hours, and it cannot be retried. Option D is incorrect, because Postponed is a status that is automatically assigned by Orchestrator to a queue item that has a specific start date in the future, and it cannot be retried until that date is reached.

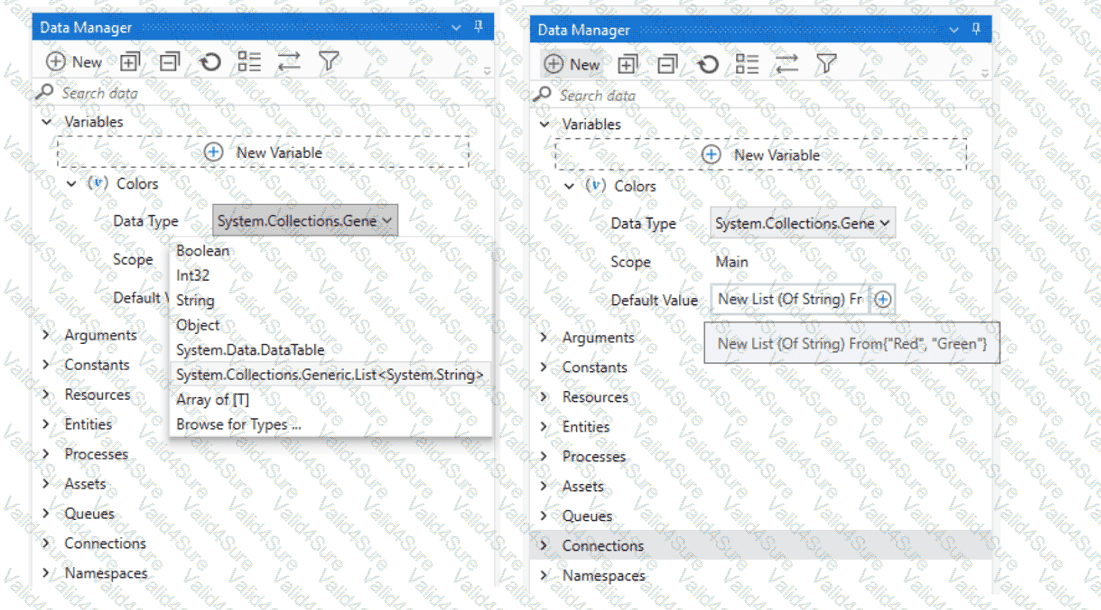

Based on the exhibits provided, the developer has set up an Invoke Method activity to add an item to the "Colors" list variable. The list is initially declared with two items "Red" and "Green". The Invoke Method activity is configured to add the string "Yellow" to this list.

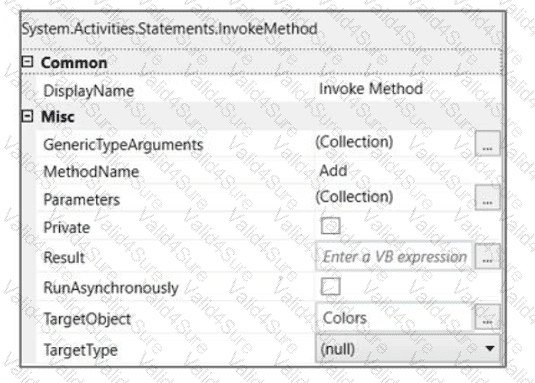

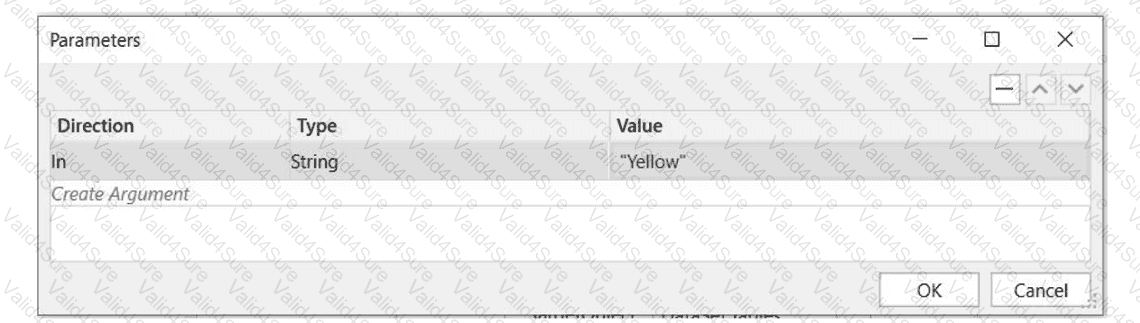

The properties of the Invoke Method activity indicate that the method 'Add' will be called on the target object 'Colors' with the parameter "Yellow". This means the string "Yellow" will be added to the end of the list.

The outcome of executing this Invoke Method activity will be:

D. Colors will contain items in the following order: "Red", "Green", "Yellow".

This is because items in a List in .NET are added in sequence, and the "Add" method appends the new item to the end of the list.

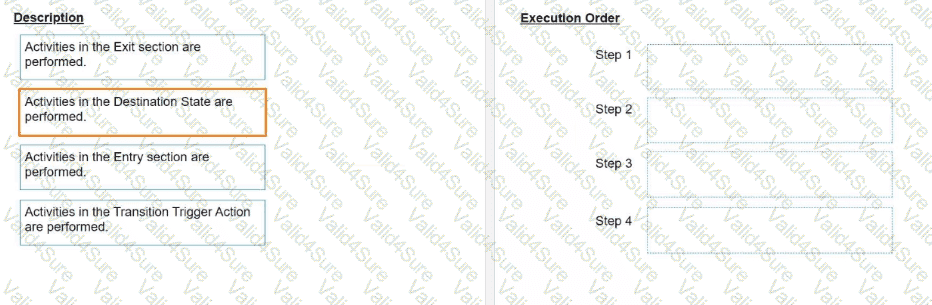

The State activity is a container for using State Machine specific activities. It can be added or modified in the State Machine activity, which is a type of automation that uses a finite number of states in its execution1. The State activity contains three major sections: Entry, Exit, and Transition(s)2.

The Entry section enables the user to add entry actions for the selected state, which are executed when the state is entered.

The Exit section enables the user to add exit actions for the selected state, which are executed when the state is exited.

The Transition(s) section displays all the transitions linked to the selected state, which are represented by arrows or branches between states. Each transition can be expanded to view or edit its three subsections: Trigger, Condition, and Action2.

The Trigger subsection enables the user to add a trigger for the next state, which is an activity that initiates the transition.

The Condition subsection enables the user to add a guard condition for the transition, which is a Boolean expression that must be true for the transition to occur.

The Action subsection enables the user to add an action for the transition, which is an activity or sequence that is executed before the transition occurs.

Option D is the correct answer, as it lists the major sections that can be added or modified in the State activity of a UiPath project that uses State Machines. Option A is incorrect, as there is no Conditional expressions section in the State activity. Option B is incorrect, as there are no Guard and Trigger attributes sections in the State activity, but rather subsections in the Transition(s) section. Option C is incorrect, as there is no Trigger conditions section in the State activity, but rather a subsection in the Transition(s) section.

In the REFramework (Robotic Enterprise Framework), the initialization of all required applications should ideally be done in the 'InitAllApplications.xaml' file. This helps in keeping the project organized and maintains a standard structure.

The out_TransactionItem argument is an output argument of the GetTransactionData workflow, which is used to store the data of the current transaction item1. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type2. The REFramework is designed for transactional processes, which are processes that handle multiple items of data in a loop3. However, it can also be adapted for linear processes, which are processes that execute a sequence of actions only once.

To use the REFramework for a linear process, the out_TransactionItem argument should be set to Nothing the first time when it enters the Get Transaction Data state. This will ensure that the processwill not enter the Get Transaction Data state again, as the condition for the transition from the Get Transaction Data state to the Process Transaction state is out_TransactionItem isNot Nothing1. Setting the out_TransactionItem argument to Nothing will also trigger the End Process state, which will perform the final actions and close the application1.

Option A is incorrect, because the process will enter the Get Transaction Data state even if it is a linear process, as it is the first state in the REFramework. Option B is incorrect, because there is no queue item in a linear process, as there is only one item of data to be processed. Option D is incorrect, because setting the out_TransactionItem argument to a static value will cause the process to enter the Get Transaction Data state repeatedly, as the condition for the transition will always be true.

 The Global Exception Handler is a type of workflow that determines the project’s behavior when encountering an execution error. It has two arguments that are provided by default and should not be removed. They are:

errorinfo: This argument has the “In” direction and it stores information about the error that was thrown and the workflow that failed. It can be used to log the error details, get the name of the activity that caused the error, or count the number of retries1.

result: This argument has the “Out” direction and it is used to specify the next action of the process when it encounters an error. It can have one of the following values: Continue, Ignore, Retry, or Abort. These values determine whether the exception is re-thrown, ignored, retried, or stops the execution1.

The other options are not correct, because they either have the wrong direction for the arguments, or they use the “In/Out” direction, which is not valid for the Global Exception Handler arguments1.

on the prerequisite for performing Remote Debugging using an Unattended Robot connection:

The prerequisite is that Studio and the remote robot must be connected to the same Orchestrator tenant. This ensures that Studio can communicate with the remote robot for debugging purposes. While having the same version and TCP/IP connectivity is beneficial, the key requirement for remote debugging is the connection to the same Orchestrator tenant.

To work with a web application in Firefox without relying on visual elements, the developer should use the 'Input mode = Chromium API'. This option enables the robot to interact with the web elements directly, without the need for visual screen elements.
