In the REFramework (Robotic Enterprise Framework), the initialization of all required applications should ideally be done in the 'InitAllApplications.xaml' file. This helps in keeping the project organized and maintains a standard structure.

The Add Log Fields activity enables you to add custom information to logs related to transactions for tracing purposes1. The activity takes a collection of string arguments as input, which are added to every subsequent log message throughout the entire workflow, unless a Remove Log Fields activity is used1. The custom log fields can be useful for adding more information and visibility to the logs, especially for transactional data processes2. For example, you can use the Add Log Fields activity to add the transaction ID, the transaction status, the business process name, or any other relevant data to the logs2. Therefore, the correct answer is A. Add Log Fields.

When starting a job manually in UiPath Orchestrator, the default priority value for the Job Priority field is Inherited. This means that the job inherits the priority value that was set at the process level when the package was deployed. The possible priority values are High, Normal, and Low. The priority value determines the order in which the jobs are executed by the robots, with higher priority jobs being executed first. The priority value can be changed manually when starting a job, or it can be set dynamically using the Start Job activity in a workflow. References: [Starting a Job], [Job Priority]

The best practice for creating a repetitive process in the REFramework and defending against potential robot crashes such as “out of memory” is to mark all “Invoke Workflow File” activities from the Main.xaml file with the Isolated option. The Isolated option enables the workflow to run in a separate process, which reduces the memory consumption and the risk of memory leaks. It also improves the stability and the performance of the robot, as it isolates the errors and the exceptions that might occur in the invoked workflow. The Isolated option can be found in the Properties panel of the “Invoke Workflow File” activity, under the Options category. By marking all the invoked workflows as Isolated, the developer can ensure that the robot can handle a large number of transactions without crashing or slowing down

The Verify Expression with Operator activity is used to verify an expression by asserting it in relation to a given expression with an operator1. The expressions tested with this activity must be inserted in their respective property fields. In this case, the activity is configured to verify if the expression “1” is equal to the expression “2”. The result of this verification is stored in the Result property, which reflects the state of the verification activity1. If the verification fails, the activity throws a TestingActivitiesException, which is a custom exception type defined by the UiPath.Testing.Activities package2.

The Try-Catch activity is used to catch a specified exception type in a sequence or activity, and either displays an error notification or dismisses it and continues the execution3. The activity has three main sections: Try, Catches, and Finally. The Try section holds the activity or set of activities that could throw an exception. The Catches section indicates the exception type and holds the activity or set of activities to be performed when the specified exception is thrown. The Finally section holds the activity or set of activities to be performed after the Try and Catches blocks are executed, regardless of the result3.

In this scenario, the Verify Expression with Operator activity is placed in the Try section of the Try-Catch activity. The Catches section has two exceptions caught: System.Exception and TestingActivitiesException. The Finally section is empty. During the execution of the sequence, the Verify Expression with Operator activity will throw a TestingActivitiesException, because the expressions 1 and 2 are not equal. The Try-Catch activity will catch this exception and enter the TestingActivitiesException sequence from the Catches section, where the appropriate actions can be performed to handle the error. Therefore, the correct answer is C. The Exception sequence from the Catches block within the Try-Catch activity will be entered first, after the Verify Expression with Operator activity is executed.

The other options are incorrect because:

Option A is incorrect because the Try-Catch activity will execute one of the blocks within the Catches section, depending on the type of exception thrown by the Verify Expression with Operator activity. In this case, the TestingActivitiesException sequence will be executed.

Option B is incorrect because the Finally block within the Try-Catch activity will be executed only after the Try and Catches blocks are executed, not before. The Finally block is used to perform any cleanup or final actions that are needed regardless of the outcome of the Try and Catches blocks3.

Option D is incorrect because the TestingActivitiesException sequence from the Catches block within the Try-Catch activity will be entered second, not first, after the Verify Expression with Operator activity is executed. The first block to be entered is the Try block, where the Verify Expression with Operator activity is placed.

References:

Activities - Verify Expression With Operator - UiPath Documentation Portal

UiPath.Testing.Activities Namespace

Activities - Try Catch - UiPath Documentation Portal

A screenshot of a computer program Description automatically generated

To align with UiPath's best practices when updating the REFramework template for use with Orchestrator queues, the sequence of steps should ensure proper setup of the queues in Orchestrator, configuration of the project to interact with these queues, and implementation of the business logic to process items from the queues.

Here's how the steps should be sequenced:

Step 1: Create the queue in Orchestrator and set its Auto Retry value as required by the process documentation.This step ensures that the queue is available in Orchestrator with the correct settings before the automation attempts to interact with it.

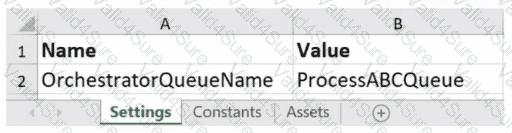

Step 2: Edit the project's configuration file (Data/Config.xlsx) and configure parameters OrchestratorQueueName and OrchestratorQueueFolder.Once the queue is created, the next step is to ensure that the automation project is configured to reference the correct queue and folder within Orchestrator.

Step 3: Edit GetTransactionData.xaml workflow and assign a proper value for the out_TransactionID argument.This configuration allows the workflow to correctly fetch transaction items from the Orchestrator queue for processing.

Step 4: Edit workflow Process.xaml and implement the logic to process each TransactionItem.Finally, the core processing logic that operates on each queue item is implemented, allowing the automation to perform the necessary actions for each transaction.

The processing sequence for queue items in UiPath Orchestrator is determined primarily by the deadline and priority of each item. Items with an earlier deadline are processed first. If multiple items have the same deadline, then priority determines the order: High, Normal, then Low.

Following this logic, the processing sequence would be:

1st: Deadline = 10/04/2023 Priority = LowSince this is the only item with the deadline of the current day (assuming today is 10/04/2023), it should be processed first regardless of its priority.

2nd: No deadline Priority = HighAlthough this item has no deadline, its high priority places it next in the sequence after items with a deadline for the current day.

3rd: Deadline = 10/05/2023 Priority = HighThis item is next due to its combination of an imminent deadline and high priority.

4th: Deadline = 10/05/2023 Priority = NormalThis item has the same deadline as the third but a lower priority, so it comes next.

5th: Deadline = 10/06/2023 Priority = HighThis item, while high priority, has the latest deadline, so it is processed last.

So the order would be:

1st: Deadline = 10/04/2023 Priority = Low2nd: No deadline Priority = High3rd: Deadline = 10/05/2023 Priority = High4th: Deadline = 10/05/2023 Priority = Normal5th: Deadline = 10/06/2023 Priority = High

A sequential process is a type of process design that executes actions in a straightforward progression without iteration or branching. A sequential process is composed of a series of activities that are executed one after another, from top to bottom, in a linear fashion. A sequential process is best suited for simple scenarios when activities follow each other and there is no need for complex logic or decision making12.

The other options are not appropriate for an automation task that executes actions in a straightforward progression without iteration or branching, because they involve different types of process design that require more complex structures and logic. For example:

A transactional process is a type of process design that executes actions on a set of data items, one at a time, in a loop. A transactional process is composed of a dispatcher that adds data items to a queue, and a performer that processes each data item from the queue and updates its status. A transactional process is best suited for scenarios when activities need to be repeated for each data item and there is a need for reliability and scalability34.

An iterative process is a type of process design that executes actions repeatedly until a certain condition is met or a certain number of iterations is reached. An iterative process is composed of a loop that contains a set of activities and a condition that controls the exit of the loop. An iterative process is best suited for scenarios when activities need to be performed multiple times and there is a need for dynamic control of the execution flow56.

A linear process is not a type of process design, but a term that refers to a process that has a clear start and end point, and a well-defined sequence of steps that lead to a specific outcome. A linear process can be implemented using different types of process design, depending on the complexity and logic of the steps involved7.

References:

1: Studio - Workflow Design - UiPath Documentation Portal 2: Studio - Sequence - UiPath Activities 3: Studio - Transactional Business Process - UiPath Documentation Portal 4: Studio - Transactional Process - UiPath Activities 5: Studio - Control Flow - UiPath Documentation Portal 6: Studio - Loops - UiPath Activities 7: What is a Linear Process? - Definition from Techopedia
