Question # 153

Which type of traffic is sent with pure iPsec?

broadcast packets from a switch that is attempting to locate a MAC address at one of several remote sites

multicast traffic from a server at one site to hosts at another location

spanning-tree updates between switches that are at two different sites

unicast messages from a host at a remote site to a server at headquarters

Full Access

Question # 154

Which action is taken by a switch port enabled for PoE power classification override?

When a powered device begins drawing power from a PoE switch port a syslog message is generated

As power usage on a PoE switch port is checked data flow to the connected device is temporarily paused

If a switch determines that a device is using less than the minimum configured power it assumes the device has failed and disconnects

Should a monitored port exceeds the maximum administrative value for power, the port is shutdown and err-disabled

Full Access

Question # 155

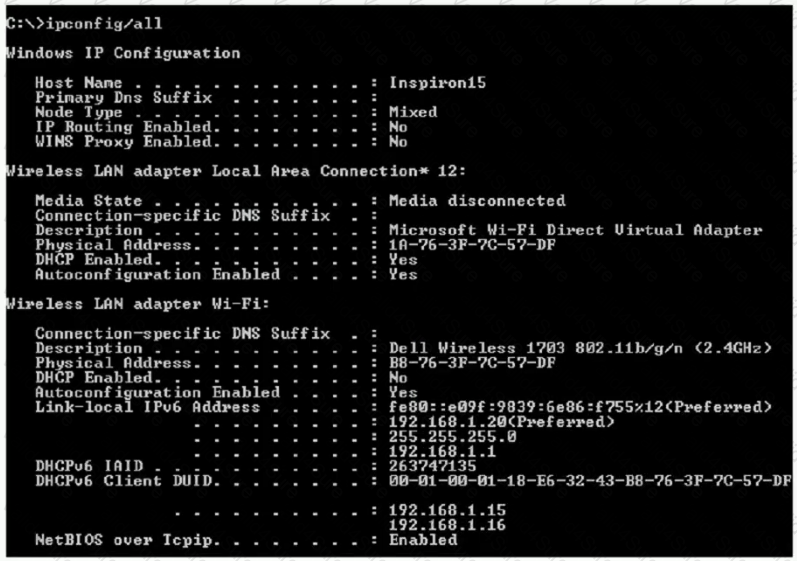

Refer to the exhibit.

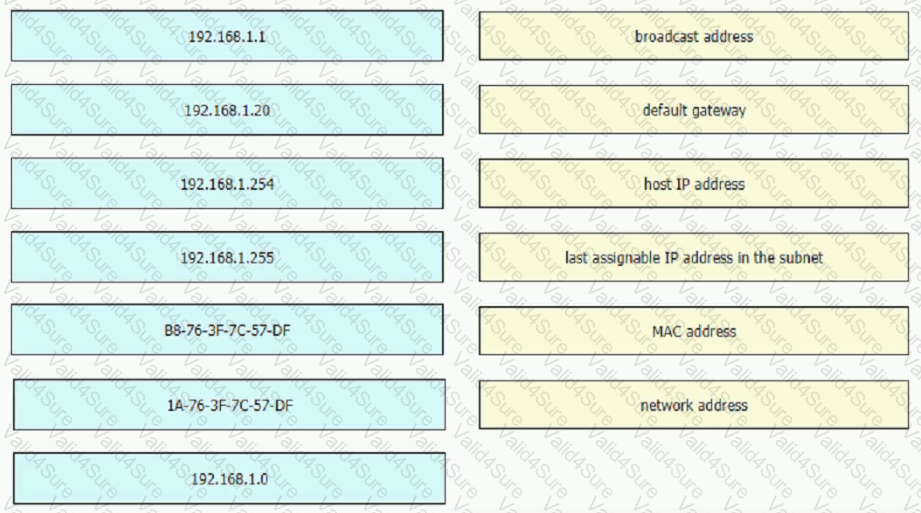

An engineer is required to verify that the network parameters are valid for the users wireless LAN connectivity on a /24 subnet. Drag and drop the values from the left onto the network parameters on the right. Not all values are used.

Full Access

Question # 156

Refer to the exhibit.

An engineer is bringing up a new circuit to the MPLS provider on the Gi0/1 interface of Router1 The new circuit uses eBGP and teams the route to VLAN25 from the BGP path What s the expected behavior for the traffic flow for route 10.10.13.0/25?

Traffic to 10.10.13.0.25 is load balanced out of multiple interfaces

Route 10.10.13.0/25 is updated in the routing table as being learned from interface Gi0/1.

Traffic to 10.10.13.0/25 is asymmeteical

Route 10.10.13.0/25 learned via the GiO/0 interface remains in the routing table

Full Access

Question # 157

An engineer must configure an OSPF neighbor relationship between router R1 and R3 The authentication configuration has been configured and the connecting interfaces are in the same 192.168 1.0/30 sublet. What are the next two steps to complete the configuration? (Choose two.)

configure the hello and dead timers to match on both sides

configure the same process ID for the router OSPF process

configure the same router ID on both routing processes

Configure the interfaces as OSPF active on both sides.

configure both interfaces with the same area ID

Full Access

Question # 158

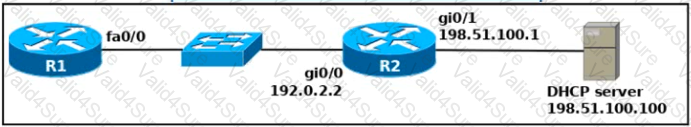

Refer to the exhibit.

An engineer deploys a topology in which R1 obtains its IP configuration from DHCP. If

the switch and DHCP server configurations are complete and correct. Which two sets of commands must be configured on R1 and R2 to complete the task? (Choose two)

R1(config)# interface fa0/0

R1(config-if)# ip helper-address 198.51.100.100

R2(config)# interface gi0/0

R2(config-if)# ip helper-address 198.51.100.100

R1(config)# interface fa0/0

R1(config-if)# ip address dhcp

R1(config-if)# no shutdown

R2(config)# interface gi0/0

R2(config-if)# ip address dhcp

R1(config)# interface fa0/0

R1(config-if)# ip helper-address 192.0.2.2

Full Access
