Question # 33

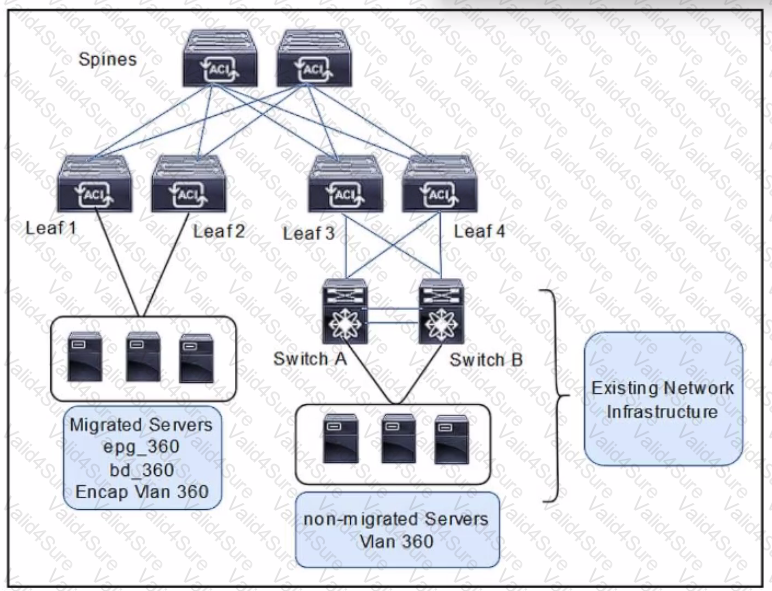

Refer to the exhibit. An engineer is migrating legacy servers into the Cisco ACI environment. The requirement is to ensure that all endpoints and MAC addresses are learned properly in legacy and Cisco ACI switches. Which configuration set must be configured under the bridge domain called bd__360 to accomplish this goal?

L2 Unknown Unicast: Hardware Proxy ARP Flooding: Disabled

L2 Unknown Unicast: Hardware Proxy ARP Flooding: Enabled

L2 Unknown Unicast: Flood ARP Flooding: Disabled

L2 Unknown Unicast: Flood

ARP Flooding: Enabled

Full Access

Question # 34

An engineer configures an L30ut in VRF-1 that was configured for Import Route Control Enforcement. The L30ut uses OSPF to peer with a core switch. The L30ut has one external EPG, it has been configured with a subnet 10.1.0.0/24. Which scope must be set to force 10.1.0.0/24 to populate in the routing table for VRF-1?

External Subnet for External EPG

Export Route Control Subnet

Shared Route for External EPG

Import Route Control Subnet

Full Access

Question # 35

A network engineer is implementing a Layer 3 Out in the Cisco ACI fabric. The data center core switches must connect to a pair of leaf switches and exchange routes via a routing protocol. In addition, the implementation must meet these criteria;

â€¢ The external switch interface must use 802.1Q tagging.

â€¢ Access to the internet for the ACI fabric must be the L30ut.

â€¢ The L30ut must use a routing protocol that has rapid convergence time and low CPU usage.

Which configuration set meets these requirements?

Configure the OSPF Protocol policy with an area of 0.

Set up the Routed External Network object and Node Profile and select OSPF. Create the Switch profile and select VPC with the appropriate interfaces. Create the default network and associate it with the Routed Outside object.

Configure the BGP Protocol policy with the appropriate Autonomous System number. Configure an Interface policy and an External Bridged Domain. Create an External Bridged Network and use the configured VLAN pool. Build the Leaf profile and select the Routed sub-interface with the appropriate VLAN.

Implement the IS-IS Protocol policy with the selected Autonomous System number. Create the Routed Outside object and Node Profile and select IS-IS. Configure the Interface profile and select the Routed Interface with the appropriate interfaces. Create the External Network object.

Implement the EIGRP Protocol policy with the selected Autonomous System number. Create Routed Outside object and Node Profile and select EIGRP as the routing protocol. Build the Interface profile and select SVI and the appropriate VPC. Configure the External Network object with a network of 0.0.0.070.

Full Access

Question # 36

What is the name of the automatically configured VLAN 3600 presented during Cisco ACI fabric discovery?

Transit VLAN

Infrastructure VLAN

Loopback VLAN

Fabric VLAN

Full Access

Question # 37

Which new construct must a user create when configuring in-band management?

VLAN pool

management contract

management tenant

bridge domain

Full Access

Question # 38

A company is implementing a new security policy to track system access, configuration, and changes. The network engineer must enable the log collection to track user login and logout attempts. In addition, any configuration changes such as a fabric node failure must be collected in the logs. The syslog policy is configured to send logs to the company SEIM appliance.

Which two log types must be enabled to meet the security requirements? (Choose two.)

error

audit

event

health

fault

Full Access

Question # 39

A packet is routed between two endpoints on different Cisco ACI leaf switches. Which VXLAN VNID is applied to the packet?

EPG

VRF

Full Access
