By enabling Global AES Encryption and ensuring secure data inclusion, you can safely back up and restore the Cisco ACI fabric configuration, including the vCenter password.

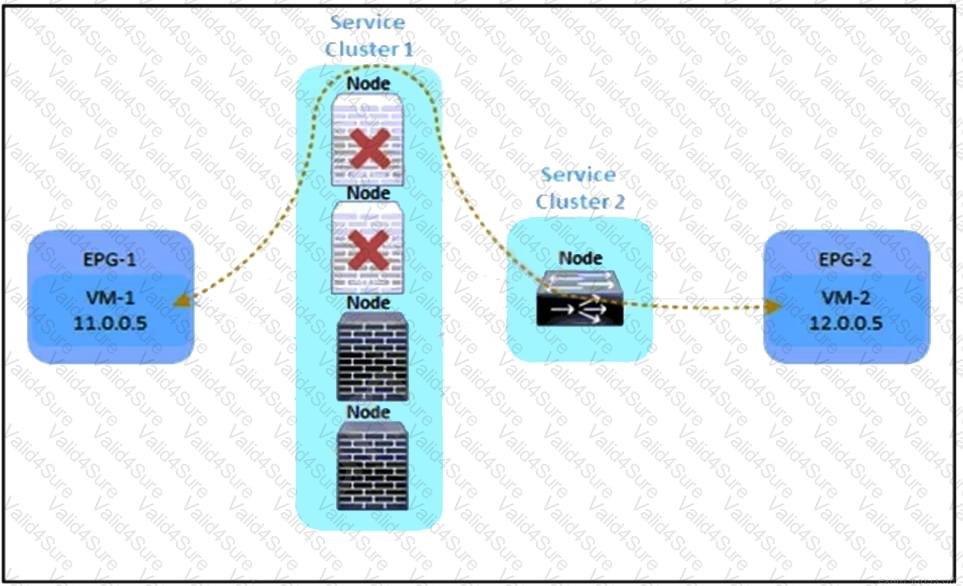

To divert traffic between VM-1 and VM-2 using a Multi-Node service graph while preventing an insufficient number of available Layer 4 to Layer 7 devices in the first cluster, the following configuration set should be used:

PBR node tracking: This feature monitors the health of the nodes (Layer 4 to Layer 7 devices) in the service graph. If a node becomes unavailable, the system can take action based on the tracking threshold1.

Tracking threshold with action bypass: When the number of healthy nodes falls below the tracking threshold, the action ‘bypass’ ensures that traffic is not sent to the unhealthy nodes, thus preventing service disruption1.

Symmetric PBR: This ensures that return traffic follows the same path as the original traffic, maintaining session consistency and avoiding asymmetric routing issues1.

Resilient hashing: This hashing mechanism provides a consistent and optimal distribution of traffic across the available Layer 4 to Layer 7 devices, even when the number of nodes changes due to a failure or maintenance1.

References :=

Cisco APIC Layer 4 to Layer 7 Services Deployment Guide, Release 5.2(x)

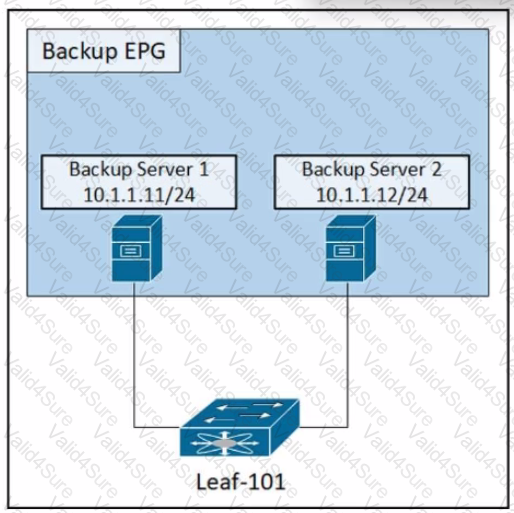

In Cisco ACI, Intra-EPG Isolation is a feature that prevents communication between endpoints within the same EPG. By default, endpoints in the same EPG can communicate freely without requiring contracts. To disable communication between two backup servers within the same EPG (e.g., in the "Backup EPG"), you need to enforce Intra-EPG Isolation.

 To configure a group of servers with a contract that uses TCP port 80 and requires an external Layer 3 cloud to initiate communication, the EPG that contains the web servers should be configured as a consumer of the contract, and the Layer 3 Out (L3Out) should be configured as the provider of the contract. This configuration establishes the direction of the contract and allows the external Layer 3 cloud to initiate communication with the web servers within the EPG.

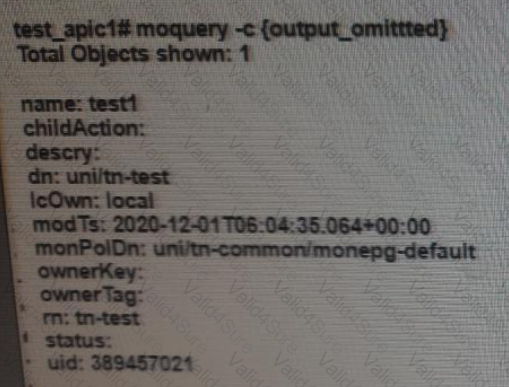

 In Cisco ACI, the object classes are used to categorize different types of managed objects within the ACI model. The output presented is indicative of a Tenant class object. Tenants in ACI are a top-level container for application policies, essentially providing a unit of isolation from other tenants. Each tenant can contain its own application policies, services, and network policies, and they are separate from other tenants to ensure multi-tenancy1.

References :=

Cisco ACI Policy Model Guide1

Object Renaming in Cisco ACI - Cisco2

Application Centric Infrastructure (ACI) REST API Guide - Cisco DevNet

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci /apic/sw/4-x/openstack/ACI-Installation-Guide-for-Red-Hat-Using-OSP13-Director/m-configuring-ironic-for-openstack.html

 The statement about the MTU value of MP-BGP EVPN control plane packets in Cisco ACI that is true for communication between spine nodes in different sites is that by default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9000-bytes packets2. This ensures that the control plane traffic, which is not VXLAN encapsulated, can be properly handled across the sites2.

To migrate the gateway address out of the ACI fabric for an endpoint group (EPG), the bridge domain configuration must ensure that routing is contained within the ACI fabric and that ARP requests are managed efficiently. The correct configuration set is:

L2 Unknown Unicast: Set to Hardware Proxy. This setting allows the ACI fabric to use the spine proxy function to handle unknown unicast traffic, which helps to reduce flooding within the fabric.

Unicast Routing: Set to Disabled. Since the gateway is being migrated out of the ACI fabric, unicast routing should be disabled to prevent the ACI fabric from attempting to route traffic for the EPG.

ARP Flooding: Set to Enabled. This allows ARP requests to be flooded within the bridge domain, which is necessary when the unicast routing is disabled, to ensure that ARP requests can still be resolved.

References :=

Cisco ACI Bridge Domain Configuration Guide

Cisco ACI Best Practices Guide
