Comprehensive Explanation: In Software-Defined Networking (SDN), the control plane (which makes decisions about where to send traffic) is separated from the forwarding plane (which actually moves packets to their destinations). This separation allows for centralized control and management of the network, enabling programmability and greater flexibility. SDN controllers manage the control plane, while individual switches or routers handle the forwarding of data.

Comprehensive and Detailed In-Depth Explanation:

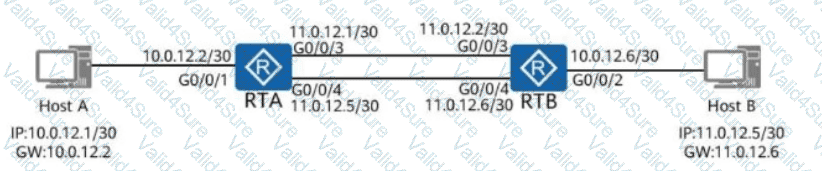

Host A (10.0.12.1/30) needs to send traffic to Host B (11.0.12.5/30) via Router A G0/0/3.

Host B (11.0.12.5/30) needs to send traffic to Host A (10.0.12.1/30) via Router B G0/0/4.

The correct static routes should specify the next-hop correctly to ensure the desired path is used.

Option D correctly ensures traffic flow through the required interfaces (G0/0/3 and G0/0/4).

Detailed Explanation:Static MAC address entries are manually configured and stored in the switch ' s configuration file, making them persistent across reboots. These entries remain in the MAC address table after a restart, unlike dynamic entries, which are lost. (Reference: HCIA-Datacom Training Material, MAC Address Table Types)

Detailed Explanation:The ACL (Access Control List) configuration only permits IP address 172.16.105.2. By applying this ACL to the Telnet server, only devices from this IP can establish a Telnet connection, while all others are denied access. (Reference: HCIA-Datacom Training Material, ACLs and Telnet Access Control)

Detailed Explanation:Wi-Fi 6 refers to the IEEE 802.11ax standard, which improves the efficiency, capacity, and performance of wireless networks, especially in dense environments​.

In Huawei’s VRP system, the login timeout setting is applied specifically to Virtual Terminal (VTY) interfaces, which manage remote access connections such as Telnet or SSH. Configuring a login timeout on a VTY interface helps secure remote sessions by automatically disconnecting inactive users after a specified period​.

In RSTP (Rapid Spanning Tree Protocol), the Backup port serves as a backup for the Designated port on the same bridge segment, not the root port. If the root port fails, the alternate port, not the backup port, takes over to maintain connectivity to the root bridge. The backup port does not have the capability to replace the root port​.
