The hardware modules of Huawei modular devices and their functions are:

Main Processing Unit (MPU): Provides control and management planes for the entire system, responsible for protocol processing, system security, and software upgrades.

Switch Fabric Unit (SFU): Provides the data plane, enabling high-speed data switching between service modules.

Line Processing Unit (LPU): Manages data forwarding, offering various interfaces (optical and electrical) for data access​​.

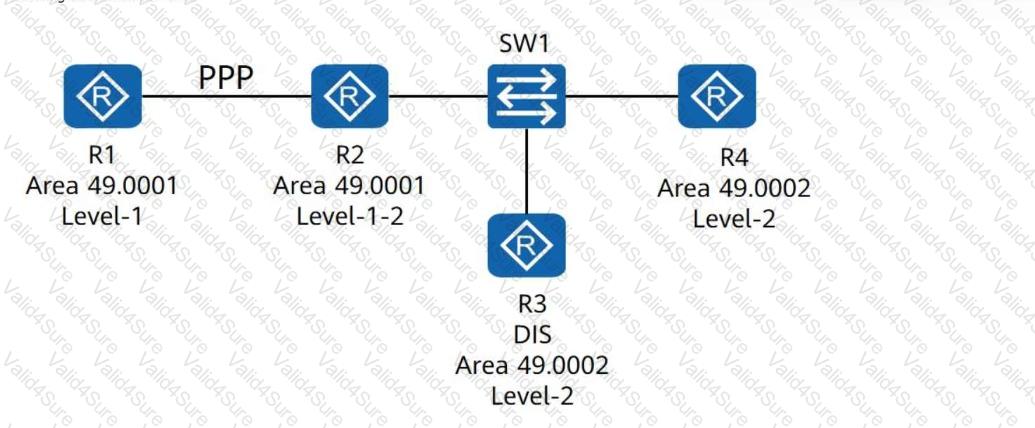

Comprehensive and Detailed Step-by-Step Explanation:

1. BGP Attributes Overview:

BGP uses attributes to describe the properties of routes. These attributes are classified into the following categories:

Well-Known Mandatory: Attributes that must be recognized and included in every BGP update. Examples: AS_PATH, ORIGIN, NEXT_HOP.

Well-Known Discretionary: Attributes that must be recognized but are not required in every BGP update. Examples: LOCAL_PREF, ATOMIC_AGGREGATE.

Optional Transitive: Attributes that may or may not be recognized, but must be passed along to other BGP peers. Examples: COMMUNITY.

Optional Non-Transitive: Attributes that may or may not be recognized, and are not passed along to other BGP peers. Examples: MED (Multi-Exit Discriminator).

2. Analysis of Each Option:

Option A: Atomic_Aggregate

Correct.

This is a well-known discretionary attribute. It indicates that the advertised route is an aggregate route that summarizes multiple specific routes.

Option B: Local-Preference

Correct.

This is a well-known discretionary attribute. It is used within an AS to prioritize routes, with higher values being preferred.

Option C: Community

Incorrect.

The COMMUNITY attribute is an optional transitive attribute. It is used to tag routes with specific labels to apply routing policies.

Option D: MED (Multi-Exit Discriminator)

Incorrect.

The MED attribute is an optional non-transitive attribute. It is used to influence the choice of the preferred path when there are multiple entry points into an AS.

3. Summary:

Well-Known Discretionary Attributes: Atomic_Aggregate and Local-Preference.

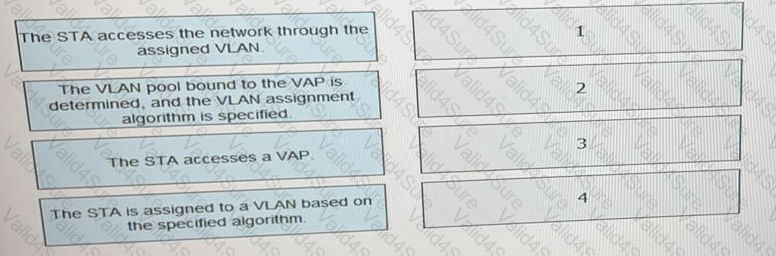

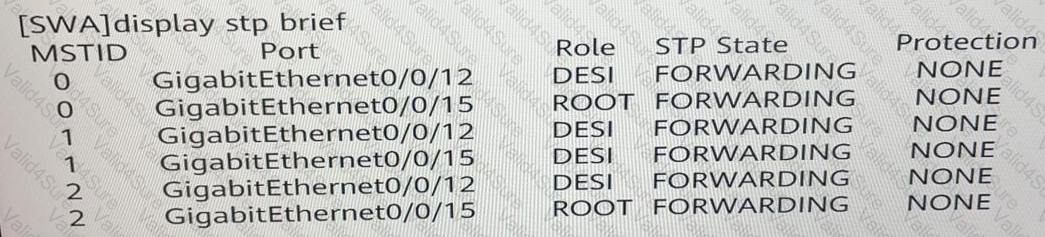

Based on the MSTP configuration shown, the role of the switch in MSTI 1 cannot be determined without additional details about the topology or priority values of other switches in the instance. The role could be a root switch, secondary root, or non-root, depending on these factors ​.

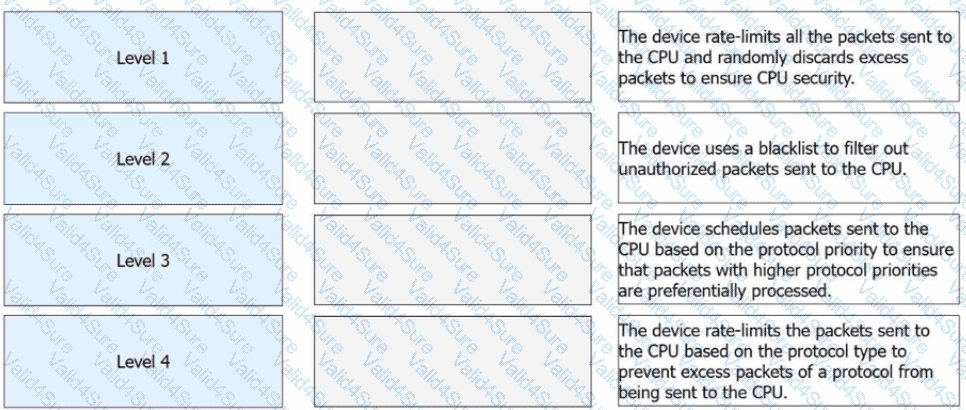

ï‚· MQC and PBR

MQC (Modular QoS Command-Line Interface): Applied to interfaces for classifying and controlling traffic.

PBR (Policy-Based Routing): Used to influence packet forwarding based on policies rather than traditional routing tables.

Both MQC and PBR can be configured on device interfaces to filter incoming/outgoing packets or control their forwarding paths.

ï‚· HCIP-Datacom-Core Reference

The use of MQC and PBR on device interfaces is elaborated in the QoS and routing control chapters​​.

The sequence of steps for electing the root port in an STP (Spanning Tree Protocol) network is as follows:

Bridge ID Comparison: The Bridge ID (BID) is compared between the bridges in the network. A smaller value indicates a higher priority, meaning the bridge with the lowest Bridge ID is elected as the root bridge.

RPC (Root Path Cost) Comparison: The path cost to reach the root bridge is calculated. The router with the lowest Root Path Cost (RPC) to the root bridge will have a higher priority for the election of the root port.

Peer BID Comparison: If there is a tie in the Root Path Cost, the Peer BID is compared. A smaller Peer BID indicates a higher priority. This step ensures that if two routers have the same RPC, the one with the lower Peer Bridge ID wins.

Local BID Comparison: If there is still a tie, the Local BID is compared. A smaller Local BID indicates a higher priority. This final step ensures that the router with the lowest local identifier is selected.

Bridge ID Comparison:The first step in electing the root port is comparing the Bridge IDs. The bridge with the lowest Bridge ID becomes the root bridge. The Bridge ID is made up of the bridge priority and MAC address. The root bridge is the center of the network for STP, and all other ports will calculate their paths based on this root.

ï‚· OSPF Authentication Overview

The Auth Type field in the OSPF packet header determines the authentication mode. If the Auth Type is 1, plaintext authentication is used.

Plaintext authentication involves transmitting the password in an easily readable format, which is less secure compared to MD5.

ï‚· HCIP-Datacom-Core Reference

Authentication mechanisms, including plaintext authentication, are detailed in the OSPF security configuration chapter, confirming that Auth Type = 1 corresponds to plaintext​​.

Routing Entries in PIM

(S, G) entries: Represent the shortest path tree (SPT) from a specific source (S) to a specific multicast group (G). These entries are created after data packets are transmitted directly from the source to the receivers.

(S, G) entries are used in both PIM-DM and PIM-SM modes.

PIM-DM and PIM-SM Modes

In PIM-DM, multicast traffic is initially flooded throughout the network and pruned where no receivers exist. (S, G) entries represent source-specific paths created after the flooding stage.

In PIM-SM, multicast traffic initially flows through a shared tree, but (S, G) entries are created when the network switches to the SPT for more efficient forwarding.

HCIP-Datacom-Core Reference

The functionality and application of (S, G) routing entries are detailed in multicast and PIM configuration chapters​​.
