Comprehensive and Detailed Step-by-Step Explanation:

1. How Firewalls Match Security Policies:

Firewalls use security policies to define rules for filtering traffic.

Each policy contains matching conditions (e.g., source IP, destination IP, protocol, etc.) and an action (e.g., permit or deny).

Traffic is evaluated against these policies in sequential order, and the first matching policy is applied.

2. Analysis of Each Statement:

Option A: Multiple values can be configured for a single matching condition, and the values are logically ANDed.

Incorrect.

Multiple values for a single matching condition (e.g., multiple source IPs) are logically ORed, not ANDed. For example, traffic from any of the specified source IPs matches the policy.

Option B: If a security policy contains multiple matching conditions, the relationship between them is AND.

Correct.

When a policy has multiple matching conditions (e.g., source IP AND destination IP AND protocol), all conditions must be met for the policy to match.

Option C: The system has a default security policy named default, where all matching conditions are any and the default action is permit.

Incorrect.

The default security policy typically denies all traffic unless explicitly permitted by user-defined policies.

Option D: When multiple security policy rules are configured, they are sorted in a list by configuration sequence by default. A security policy rule configured earlier is placed higher in the list and has a higher priority.

Correct.

Security policies are processed in sequential order based on their configuration sequence. Policies configured earlier have higher priority and are evaluated first.

3. Summary:

The correct statements are B and D.

Comprehensive and Detailed Step-by-Step Explanation:

Firewall Session Table:

A session table is used to track active sessions. If a session remains idle for longer than the configured aging time, it is removed to free resources and enhance security.

TCP Session Timeout:

If the interval between two packets exceeds the session timeout, the firewall deletes the session information, requiring the session to be re-established.

References:

HCIA-Datacom Study Guide, Chapter: Firewall Session Management

Huawei Firewall TCP Session Timeout Configuration

To compress the IPv6 address 2001:0DB8:0000:C030:0000:0000:09A0, the following rules are applied:

Remove leading zeros in each hextet (e.g., 0DB8 becomes DB8).

Replace contiguous blocks of zeros with :: (only once in the address).Thus, the compressed form is 2001:DB8:0:C030::9A0 ​.

From the command output, the interface S4/0/0 has its cost value explicitly listed under the Cost section as 20 for Level-1 circuits. This means that all traffic routed through this interface will incur this cost in the IS-IS metric calculation. The other options (such as circuit level and IPv6 support) are either not correct or not supported by the provided output ​.

The scenario describes a mismatch in OSPF network types between two connected routers: one set to Point-to-Point (P2P) and the other set to Point-to-Multipoint (P2MP). While aligning Hello intervals may seem sufficient for establishing an OSPF neighbor relationship, the fundamental mismatch in network types introduces issues.

OSPF Network Types

P2P: Assumes a direct connection with a single neighbor, uses faster convergence and simpler LSDB synchronization.

P2MP: Supports multiple neighbors on a single interface, requiring different handling for DR/BDR roles and LSDB updates.

Impact of Network Type Mismatch

If Hello intervals are aligned, adjacency establishment might occur. However, mismatched network types affect neighbor role assignment and LSDB synchronization.

P2P expects a direct link and would handle updates differently than P2MP, which assumes multiple neighbors. This leads to inconsistencies in route calculation and forwarding.

HCIP-Datacom-Core Reference

OSPF Basics and Configuration​clearly outlines the criticality of consistent network type configuration for stable OSPF operation.

Lab examples in the HCIP Datacom Lab Guide​further demonstrate the consequences of such mismatches, including unstable neighbor states and incomplete LSDB synchronization.

Hence, the statement that neighbor relationships and LSDB synchronization remain unaffected is incorrect. Proper OSPF operation requires matching network types in addition to aligned Hello intervals.

Edge ports are used in RSTP to bypass the spanning tree calculation for ports connected to end devices. By configuring ports like SWD's GE0/0/2 and SWC's GE0/0/2 as edge ports, they transition directly to the Forwarding state upon activation, ensuring faster convergence. Statement A is incorrect because receiving BPDU invalidates the edge port status ​.

Comprehensive and Detailed In-Depth Explanation:

A. TRUE → EBGP-learned routes can be advertised to both IBGP and EBGP peers.

B. FALSE → BGP uses incremental updates, meaning it only advertises changed routes, not all routes.

C. TRUE → BGP advertises only the best path to prevent unnecessary routing information.

D. TRUE → IBGP split-horizon rule: Routes learned from IBGP peers are not re-advertised to other IBGP peers (to prevent loops).

📖 Reference: Huawei HCIA-Datacom Study Guide, BGP Route Advertisement and Split-Horizon Rule.

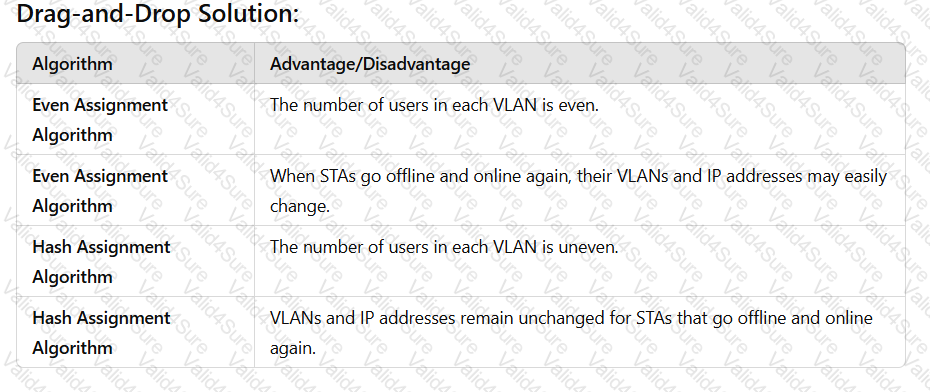

Explanation of VLAN Pool Assignment Algorithms:

In WLANs, VLAN pools help reduce broadcast domains and improve network performance by distributing users across multiple VLANs. Two algorithms are used for VLAN assignment:

Even Assignment Algorithm:

The number of users in each VLAN is even.

This algorithm assigns users evenly across VLANs, ensuring a balanced distribution of users in each VLAN.

When STAs go offline and online again, their VLANs and IP addresses may easily change.

Since the assignment is based on maintaining even distribution, a device (STA) may not be assigned the same VLAN when it reconnects, leading to potential IP address changes.

Hash Assignment Algorithm:

The number of users in each VLAN is uneven.

The hash algorithm assigns users to VLANs based on a hash value (e.g., derived from the MAC address). This may result in an uneven distribution of users across VLANs.

VLANs and IP addresses remain unchanged for STAs that go offline and online again.

The hash algorithm ensures that a device reconnects to the same VLAN, preserving its IP address.

A screenshot of a computer Description automatically generated
